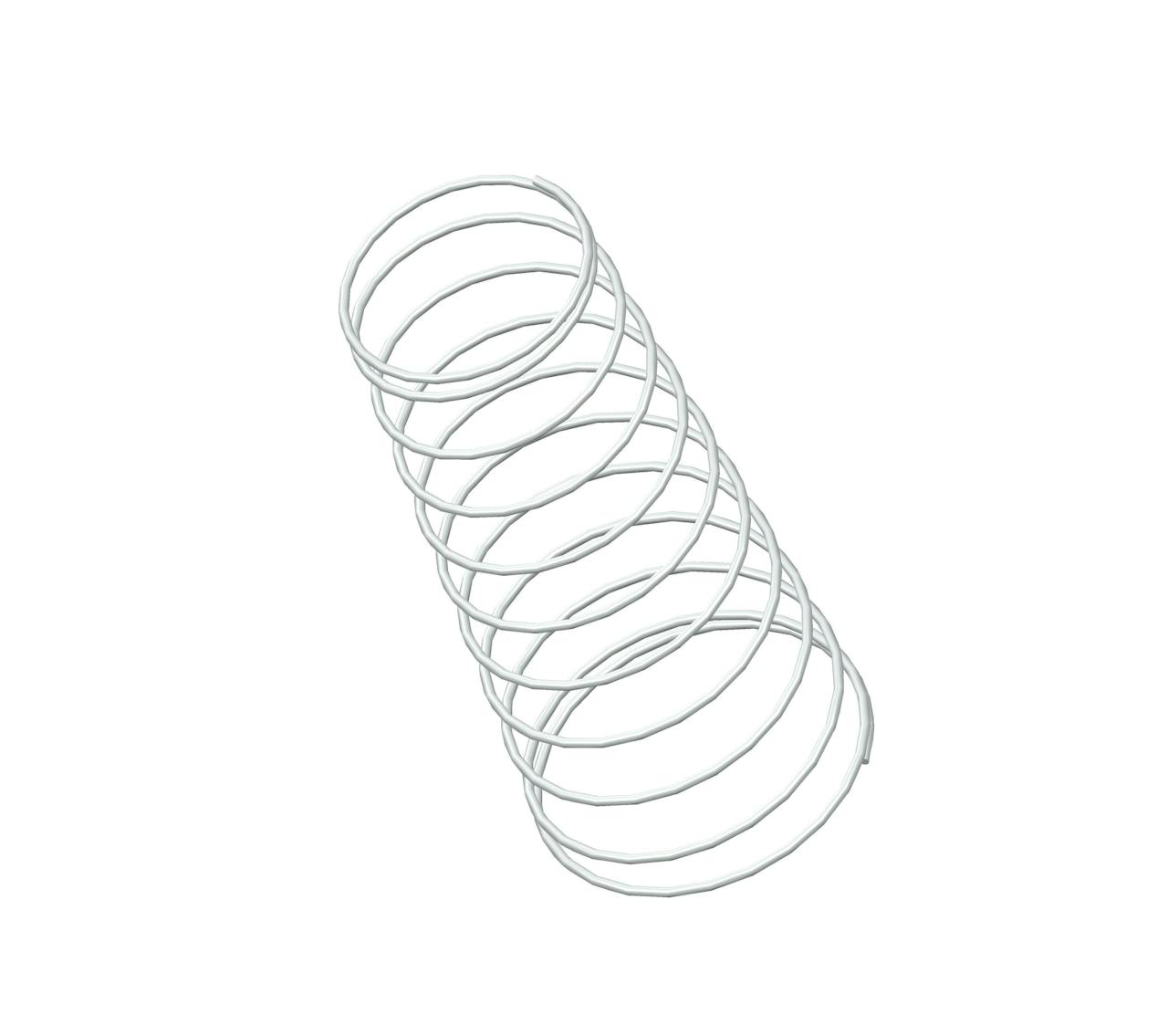

TA-2378CS - 1.38 Inch Height 302/304 Stainless Steel Tapered Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Tapered compression spring in 302/304 Stainless Steel with 10.8 total coils and Closed ends. The OD of this spring tapers from 0.468 Inch to 0.625 Inch. The spring has an I.D. of 0.432 Inch, and an average spring rate of 0.1 Inch Pounds.
| Label | Value |
|---|---|
| Average Rate | 0.1 lbs/in |
| Brand | Century Spring |
| Display Name | TA-2378 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.38 in |
| Inside Diameter | 0.432 in |
| Large Outside Diameter | 0.625 in |
| Material | 302/304 Stainless Steel |
| Measurement Units | Standard |
| Outside Diameter | 0.468 in |
| SKU | TA-2378CS |
| Small Outside Diameter | 0.468 in |
| Solid Height | 0.19 in |
| Total Coils | 10.8 |
| Wind Direction | Left |
| Wire Diameter | 0.018 in |
| Label | Value |
|---|---|
| Average Rate | 0.02 N/mm |
| Brand | Century Spring |
| Display Name | TA-2378 |
| Ends | Closed |
| Finish | None |
| Free Length | 35.05 mm |
| Inside Diameter | 10.97 mm |
| Large Outside Diameter | 15.88 mm |
| Material | 302/304 Stainless Steel |
| Measurement Units | Standard |
| Outside Diameter | 11.89 mm |
| SKU | TA-2378CS |
| Small Outside Diameter | 11.89 mm |
| Solid Height | 4.83 mm |
| Total Coils | 10.8 |
| Wind Direction | Left |
| Wire Diameter | 0.46 mm |
