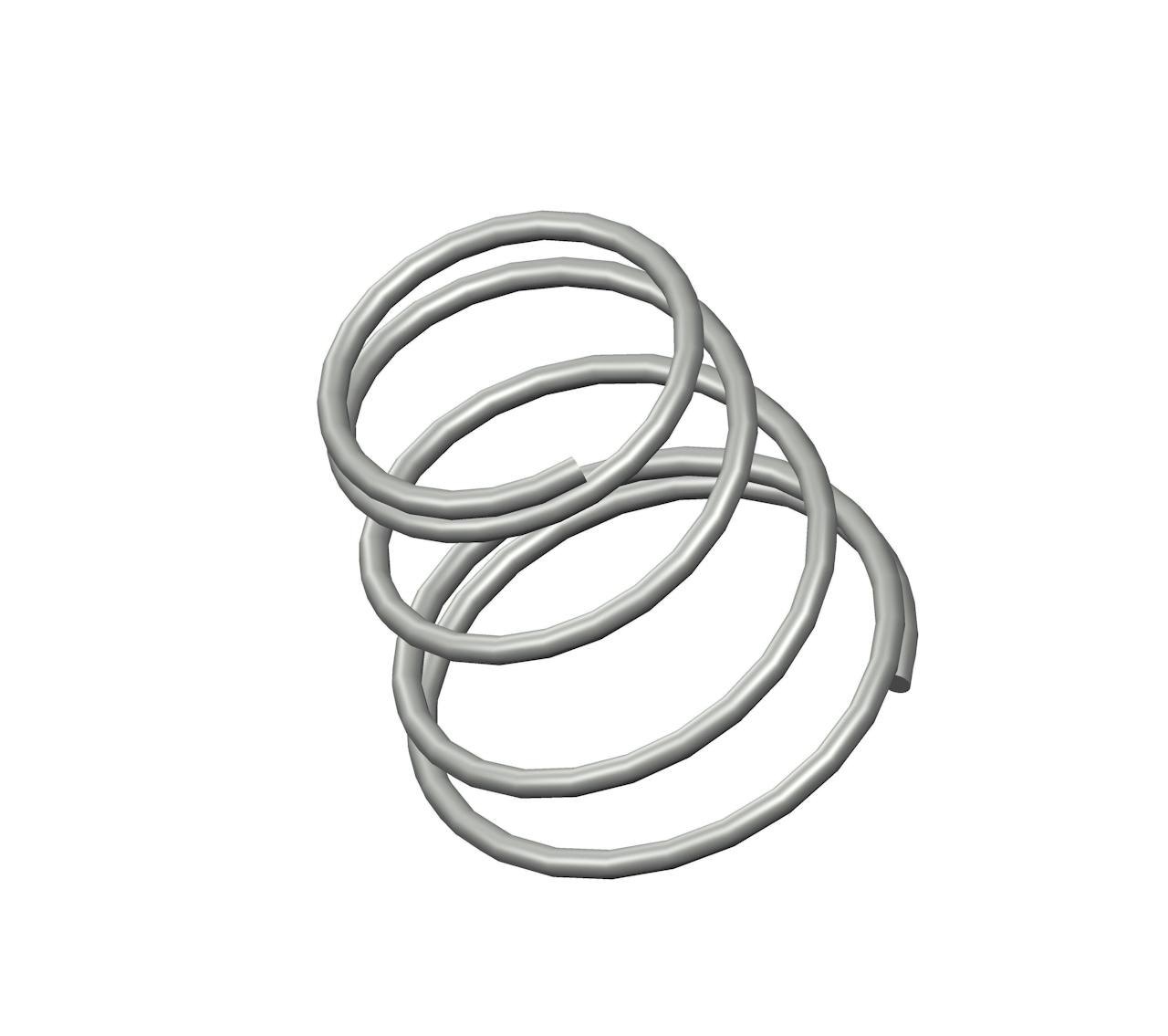

TA-2369CS - 1 Inch Height Spring Steel Tapered Spring

Inventory:
Estimated Lead Time

Tapered compression spring in Spring Steel with 4.5 total coils and Closed & Ground ends. The OD of this spring tapers from 0.719 Inch to 0.968 Inch. The spring has an I.D. of 0.611 Inch, and an average spring rate of 9.9 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 9.9 lbs/in
Brand Century Spring
Display Name TA-2369
Ends Closed & Ground
Finish Zinc
Free Length 1 in
Inside Diameter 0.611 in
Large Outside Diameter 0.968 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.719 in
SKU TA-2369CS
Small Outside Diameter 0.719 in
Solid Height 0.16 in
Total Coils 4.5
Wind Direction Left
Wire Diameter 0.054 in
Specs (in metric)
Label Value
Average Rate 1.73 N/mm
Brand Century Spring
Display Name TA-2369
Ends Closed & Ground
Finish Zinc
Free Length 25.4 mm
Inside Diameter 15.52 mm
Large Outside Diameter 24.59 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 18.26 mm
SKU TA-2369CS
Small Outside Diameter 18.26 mm
Solid Height 4.06 mm
Total Coils 4.5
Wind Direction Left
Wire Diameter 1.37 mm
