Century Spring

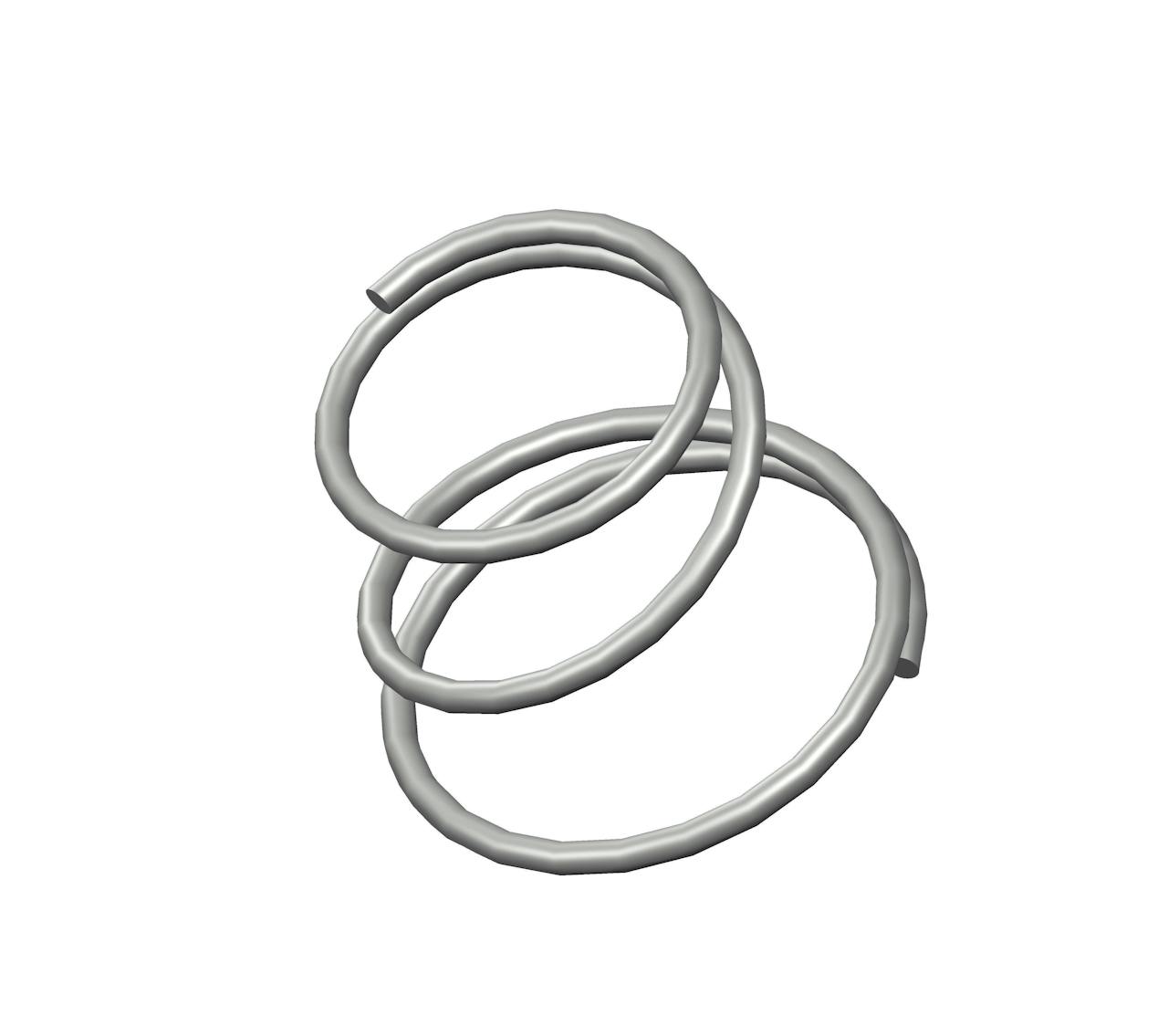

TA-2311CS - 0.22 Inch Height Spring Steel Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in Spring Steel with 3 total coils and Closed ends. The OD of this spring tapers from 0.187 Inch to 0.25 Inch. The spring has an I.D. of 0.157 Inch, and an average spring rate of 8.6 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 8.6 lbs/in
Brand Century Spring
Display Name TA-2311
Ends Closed
Finish None
Free Length 0.22 in
Inside Diameter 0.157 in
Large Outside Diameter 0.25 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.187 in
SKU TA-2311CS
Small Outside Diameter 0.187 in
Solid Height 0.03 in
Total Coils 3
Wind Direction Left
Wire Diameter 0.015 in
Specs (in metric)
Label Value
Average Rate 1.51 N/mm
Brand Century Spring
Display Name TA-2311
Ends Closed
Finish None
Free Length 5.59 mm
Inside Diameter 3.99 mm
Large Outside Diameter 6.35 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 4.75 mm
SKU TA-2311CS
Small Outside Diameter 4.75 mm
Solid Height 0.76 mm
Total Coils 3
Wind Direction Left
Wire Diameter 0.38 mm
