Century Spring

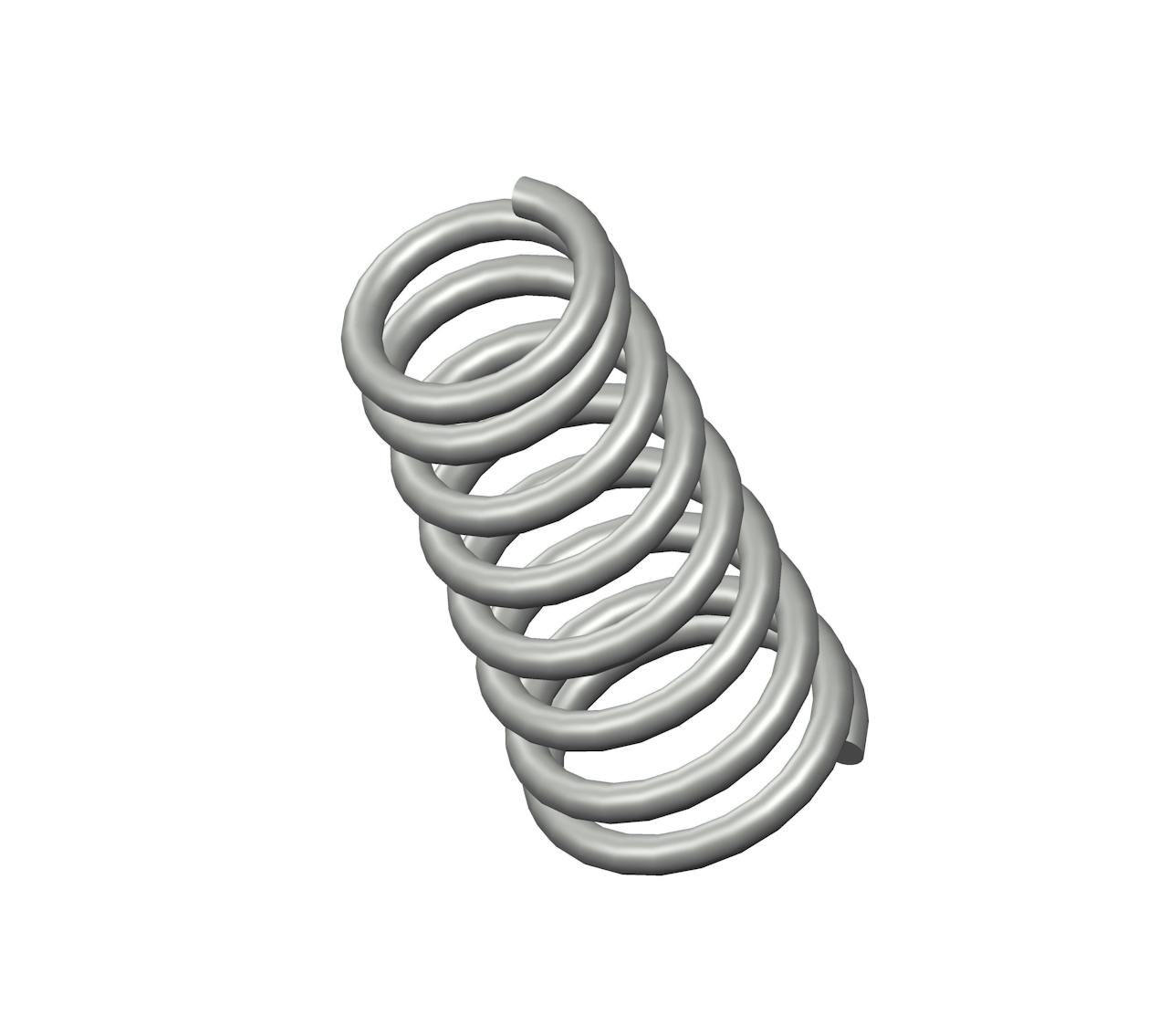

TA-2305CS - 1.5 Inch Height Spring Steel Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in Spring Steel with 8 total coils and Closed ends. The OD of this spring tapers from 0.562 Inch to 0.688 Inch. The spring has an I.D. of 0.402 Inch, and an average spring rate of 60.6 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 60.6 lbs/in
Brand Century Spring
Display Name TA-2305
Ends Closed
Finish None
Free Length 1.5 in
Inside Diameter 0.402 in
Large Outside Diameter 0.688 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.562 in
SKU TA-2305CS
Small Outside Diameter 0.562 in
Solid Height 0.72 in
Total Coils 8
Wind Direction Left
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Average Rate 10.61 N/mm
Brand Century Spring
Display Name TA-2305
Ends Closed
Finish None
Free Length 38.1 mm
Inside Diameter 10.21 mm
Large Outside Diameter 17.48 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 14.27 mm
SKU TA-2305CS
Small Outside Diameter 14.27 mm
Solid Height 18.29 mm
Total Coils 8
Wind Direction Left
Wire Diameter 2.03 mm
