Century Spring

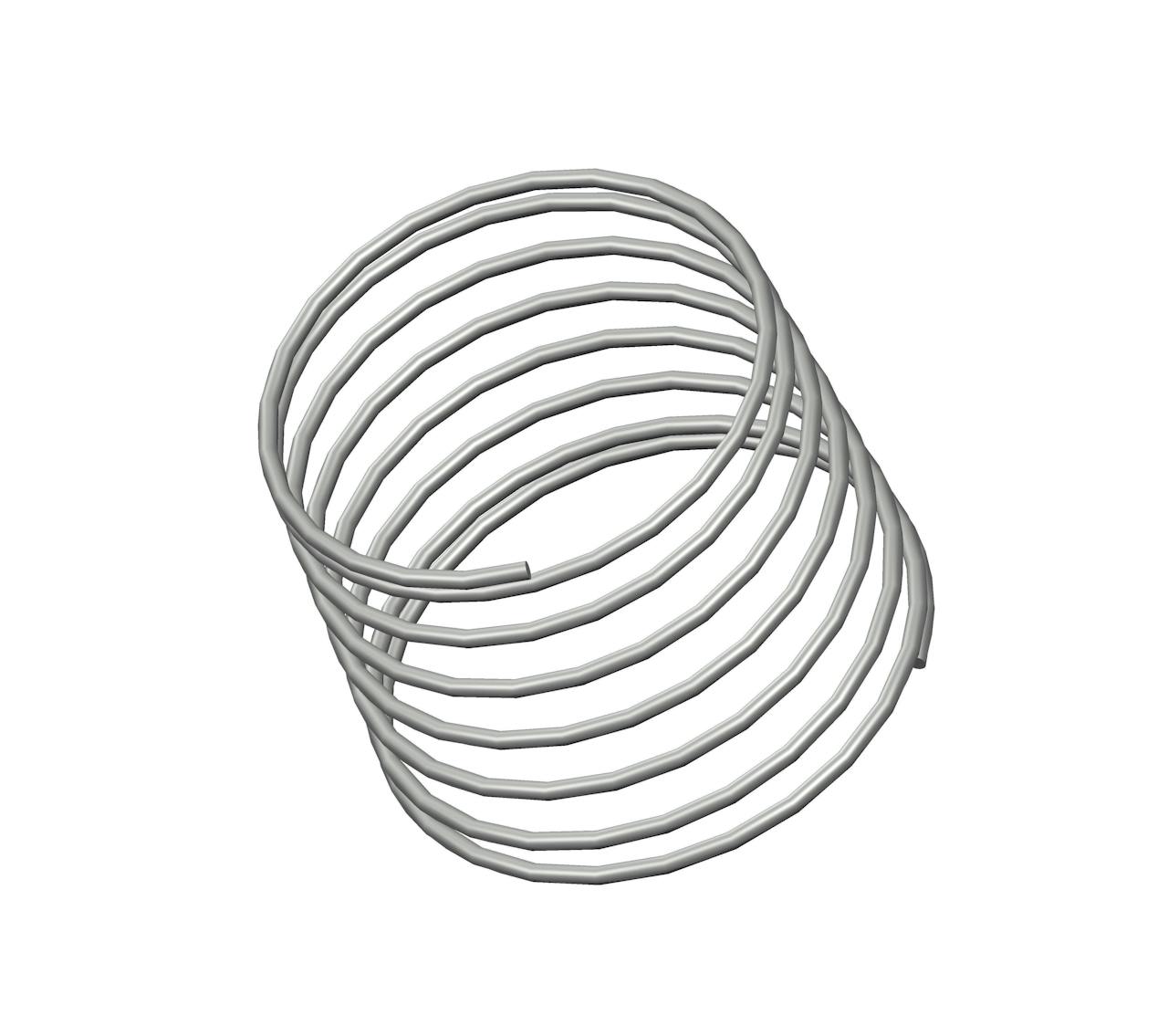

TA-2287CS - 0.5 Inch Height Spring Steel Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in Spring Steel with 7.5 total coils and Closed ends. The OD of this spring tapers from 0.562 Inch to 0.61 Inch. The spring has an I.D. of 0.522 Inch, and an average spring rate of 0.2 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 0.2 lbs/in
Brand Century Spring
Display Name TA-2287
Ends Closed
Finish Zinc
Free Length 0.5 in
Inside Diameter 0.522 in
Large Outside Diameter 0.61 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.562 in
SKU TA-2287CS
Small Outside Diameter 0.562 in
Solid Height 0.17 in
Total Coils 7.5
Wind Direction Left
Wire Diameter 0.02 in
Specs (in metric)
Label Value
Average Rate 0.04 N/mm
Brand Century Spring
Display Name TA-2287
Ends Closed
Finish Zinc
Free Length 12.7 mm
Inside Diameter 13.26 mm
Large Outside Diameter 15.49 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 14.27 mm
SKU TA-2287CS
Small Outside Diameter 14.27 mm
Solid Height 4.32 mm
Total Coils 7.5
Wind Direction Left
Wire Diameter 0.51 mm
