Century Spring

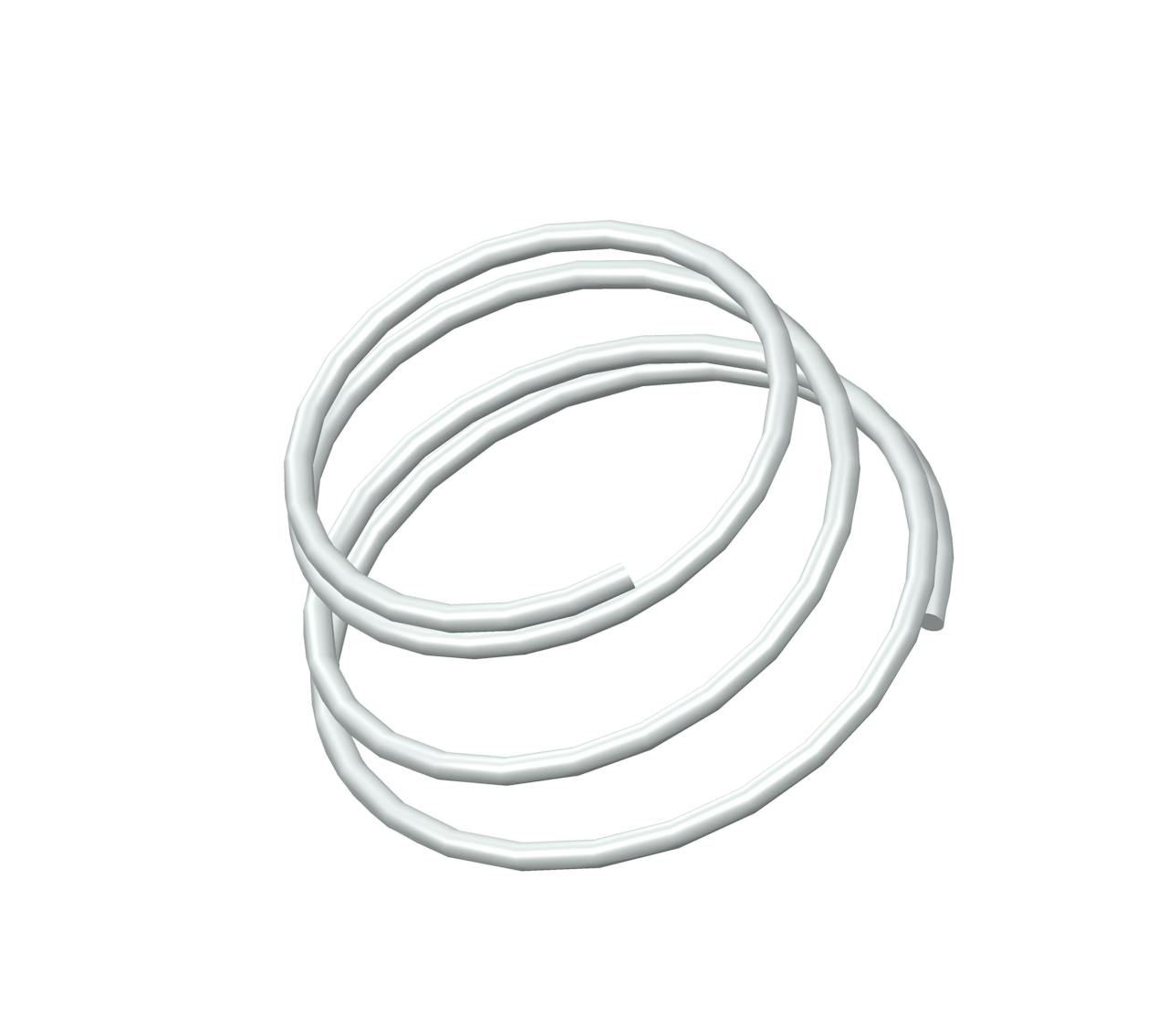

TA-2244CS - 0.75 Inch Height 302/304 Stainless Steel Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in 302/304 Stainless Steel with 3.5 total coils and Closed ends. The OD of this spring tapers from 1.125 Inch to 1.438 Inch. The spring has an I.D. of 1 Inch, and an average spring rate of 6.8 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 6.8 lbs/in
Brand Century Spring
Display Name TA-2244
Ends Closed
Finish None
Free Length 0.75 in
Inside Diameter 1 in
Large Outside Diameter 1.438 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 1.125 in
SKU TA-2244CS
Small Outside Diameter 1.125 in
Solid Height 0.11 in
Total Coils 3.5
Wind Direction Left
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Average Rate 1.19 N/mm
Brand Century Spring
Display Name TA-2244
Ends Closed
Finish None
Free Length 19.05 mm
Inside Diameter 25.4 mm
Large Outside Diameter 36.53 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 28.58 mm
SKU TA-2244CS
Small Outside Diameter 28.58 mm
Solid Height 2.79 mm
Total Coils 3.5
Wind Direction Left
Wire Diameter 1.59 mm
