Century Spring

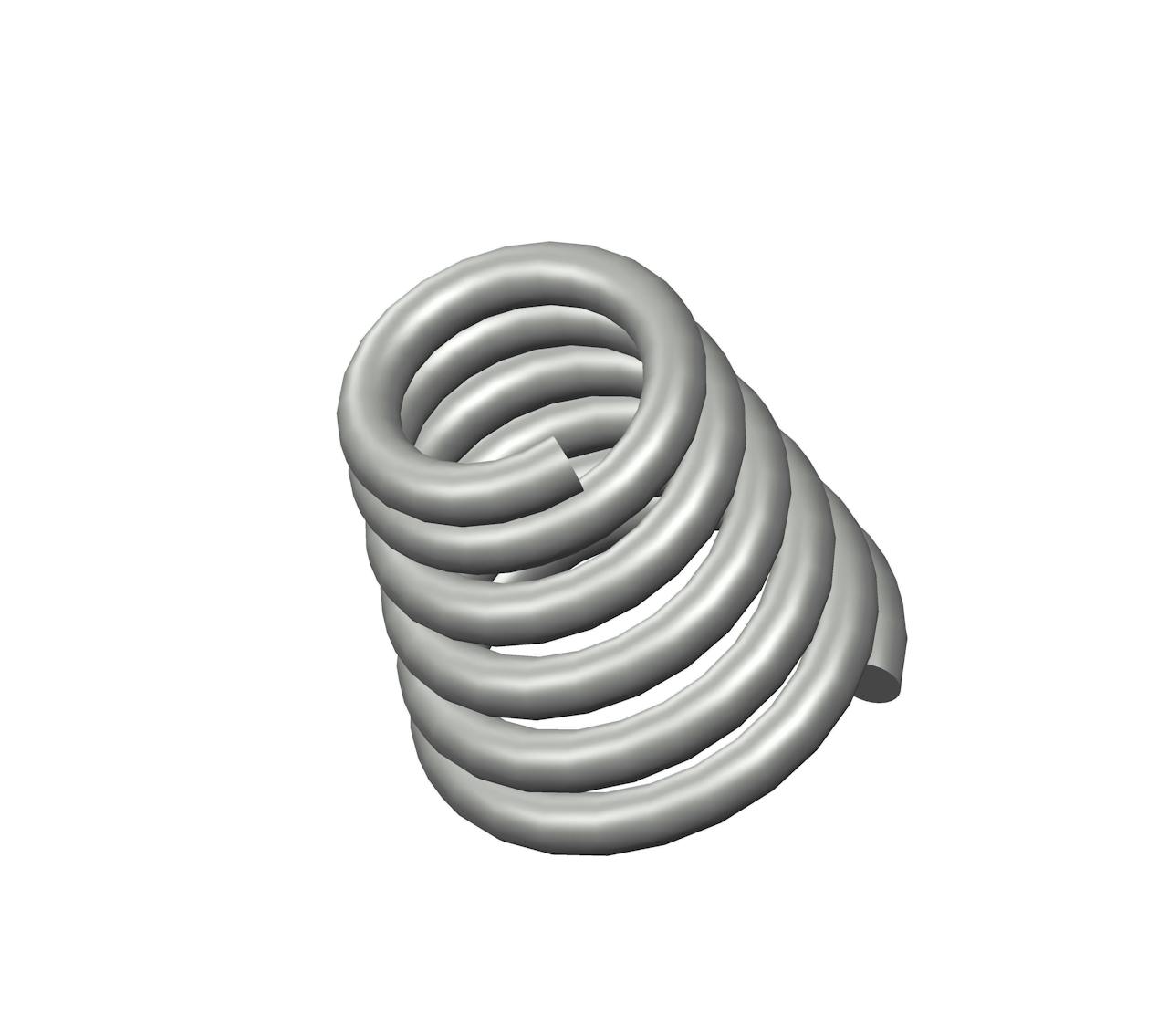

TA-2158CS - 0.53 Inch Height Spring Steel Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in Spring Steel with 5.8 total coils and Closed & Ground ends. The OD of this spring tapers from 0.343 Inch to 0.484 Inch. The spring has an I.D. of 0.223 Inch, and an average spring rate of 112.5 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 112.5 lbs/in
Brand Century Spring
Display Name TA-2158
Ends Closed & Ground
Finish None
Free Length 0.53 in
Inside Diameter 0.223 in
Large Outside Diameter 0.484 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.343 in
SKU TA-2158CS
Small Outside Diameter 0.343 in
Solid Height 0.34 in
Total Coils 5.8
Wind Direction Left
Wire Diameter 0.06 in
Specs (in metric)
Label Value
Average Rate 19.7 N/mm
Brand Century Spring
Display Name TA-2158
Ends Closed & Ground
Finish None
Free Length 13.46 mm
Inside Diameter 5.66 mm
Large Outside Diameter 12.29 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 8.71 mm
SKU TA-2158CS
Small Outside Diameter 8.71 mm
Solid Height 8.64 mm
Total Coils 5.8
Wind Direction Left
Wire Diameter 1.52 mm
