Century Spring

TA-2093CS - 1.25 Inch Height 302/304 Stainless Steel Tapered Spring

Inventory Status
Estimated Lead Time

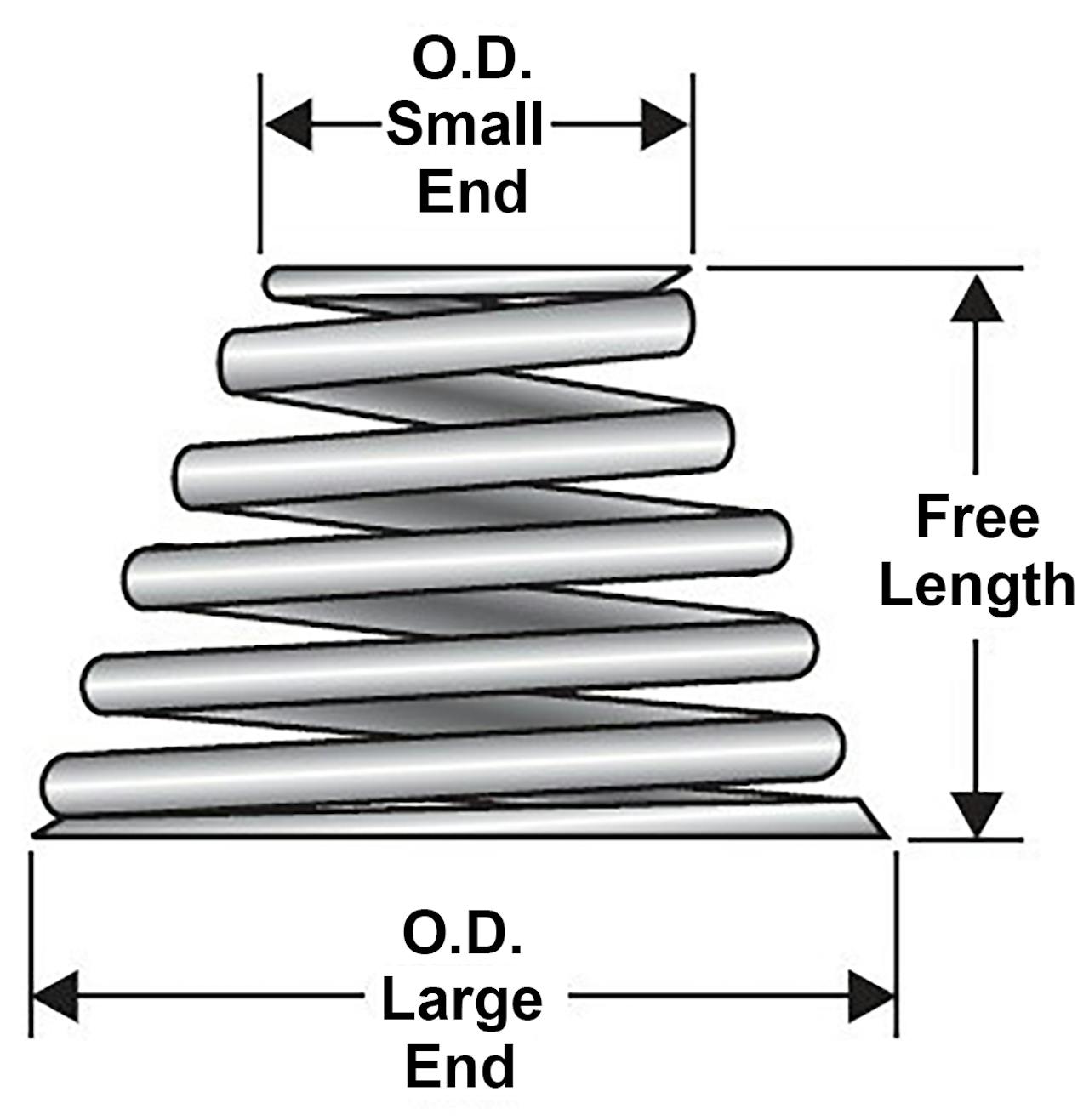

Tapered compression spring in 302/304 Stainless Steel with 9.2 total coils and Closed ends. The OD of this spring tapers from 0.234 Inch to 0.328 Inch. The spring has an I.D. of 0.154 Inch, and an average spring rate of 31.5 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 31.5 lbs/in
Brand Century Spring
Display Name TA-2093
Ends Closed
Finish None
Free Length 1.25 in
Inside Diameter 0.154 in
Large Outside Diameter 0.328 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 0.234 in
SKU TA-2093CS
Small Outside Diameter 0.234 in
Solid Height 0.41 in
Total Coils 9.2
Wind Direction Left
Wire Diameter 0.04 in
Specs (in metric)
Label Value
Average Rate 5.52 N/mm
Brand Century Spring
Display Name TA-2093
Ends Closed
Finish None
Free Length 31.75 mm
Inside Diameter 3.91 mm
Large Outside Diameter 8.33 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 5.94 mm
SKU TA-2093CS
Small Outside Diameter 5.94 mm
Solid Height 10.41 mm
Total Coils 9.2
Wind Direction Left
Wire Diameter 1.02 mm
