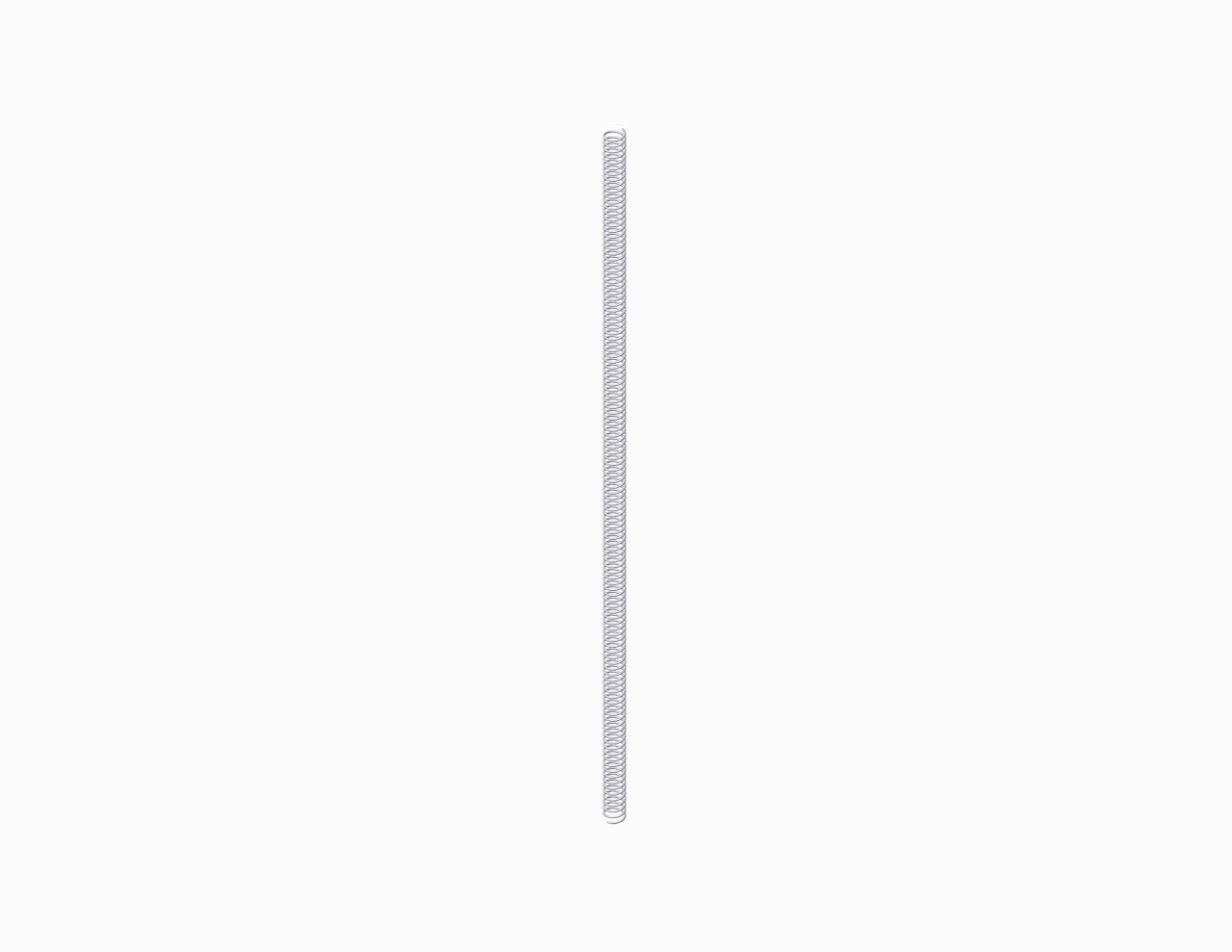

ST9-54 - 0.562 Inch O.D. Long Compression Spring

Inventory:
Estimated Lead Time

Long-length compression spring in 302/304 Stainless Steel. This spring features an O.D. of 0.562 Inch, and an I.D. of 0.454 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name ST9-54
Finish None
Inside Diameter 0.454 in
Length 20 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 0.562 in
Pitch 0.166 in
Product Image ST9_54CS
Rate 14.0004 lbs/in
Rate Constant 1.1667 lbf
SKU ST9-54CS
Solid Length Constant 0.36 in
Solid Length Per 0.36 lb
Suggested Max Load 11 lbf
Wire Diameter 0.054 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name ST9-54
Finish None
Inside Diameter 11.53 mm
Length 508 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 14.27 mm
Pitch 4.22 mm
Product Image ST9_54CS
Rate 2.45 N-mm
Rate Constant 204.32 N
SKU ST9-54CS
Solid Length Constant 9.14 mm
Solid Length Per 0.16 kg
Suggested Max Load 48.93 N
Wire Diameter 1.37 mm
