Century Spring

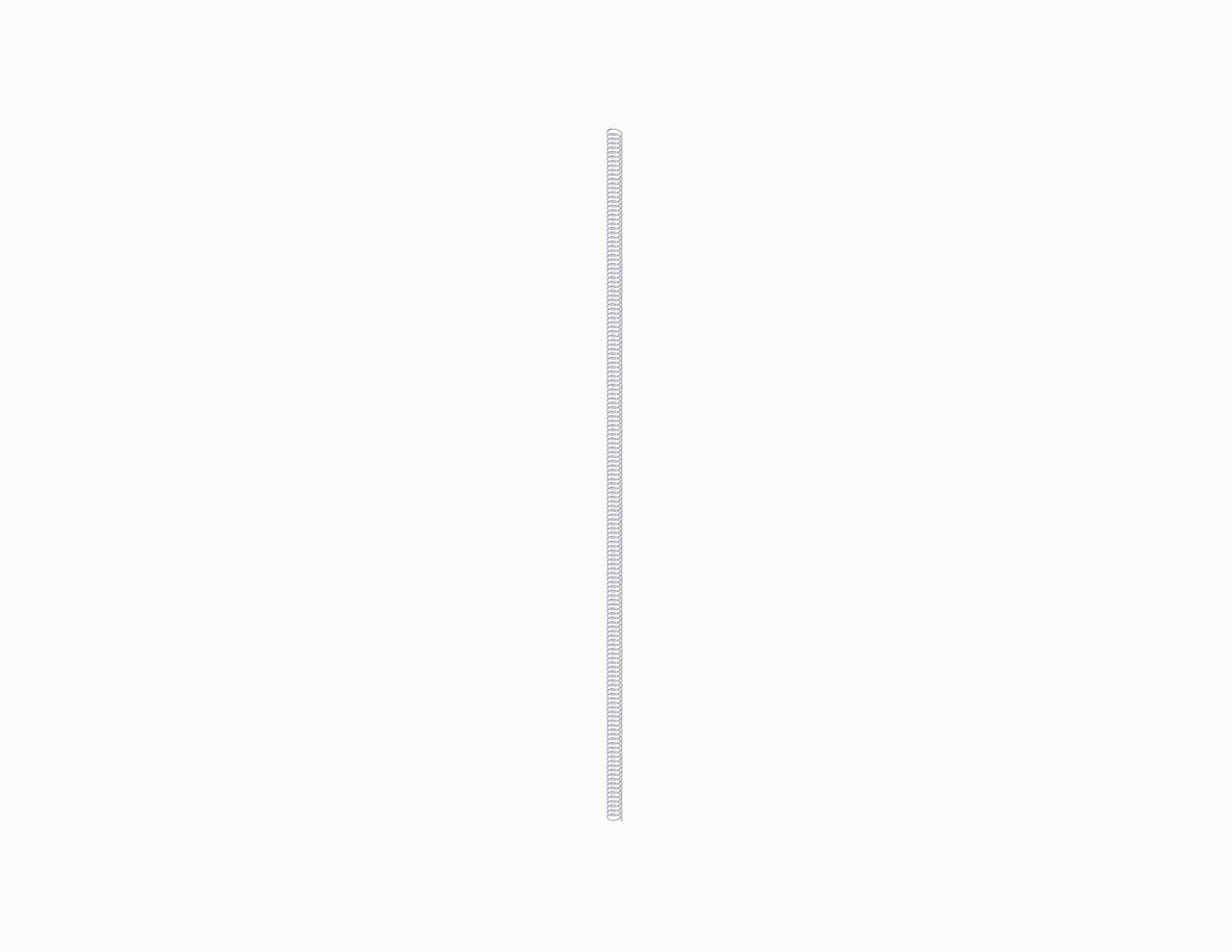

ST6-32CS - 0.375 Inch O.D. Long Compression Spring

Inventory Status
Estimated Lead Time

Long-length compression spring in 302/304 Stainless Steel. This spring features an O.D. of 0.375 Inch, and an I.D. of 0.311 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name ST6-32
Finish None
Inside Diameter 0.311 in
Length 20 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 0.375 in
Pitch 0.13 in
Product Image ST6_32CS
Rate 4.4004 lbs/in
Rate Constant 0.3667 lbf
SKU ST6-32CS
Solid Length Constant 0.27 in
Solid Length Per 0.27 lb
Suggested Max Load 3.8 lbf
Wire Diameter 0.032 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name ST6-32
Finish None
Inside Diameter 7.9 mm
Length 508 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 9.53 mm
Pitch 3.3 mm
Product Image ST6_32CS
Rate 0.77 N-mm
Rate Constant 64.22 N
SKU ST6-32CS
Solid Length Constant 6.86 mm
Solid Length Per 0.12 kg
Suggested Max Load 16.9 N
Wire Diameter 0.81 mm
