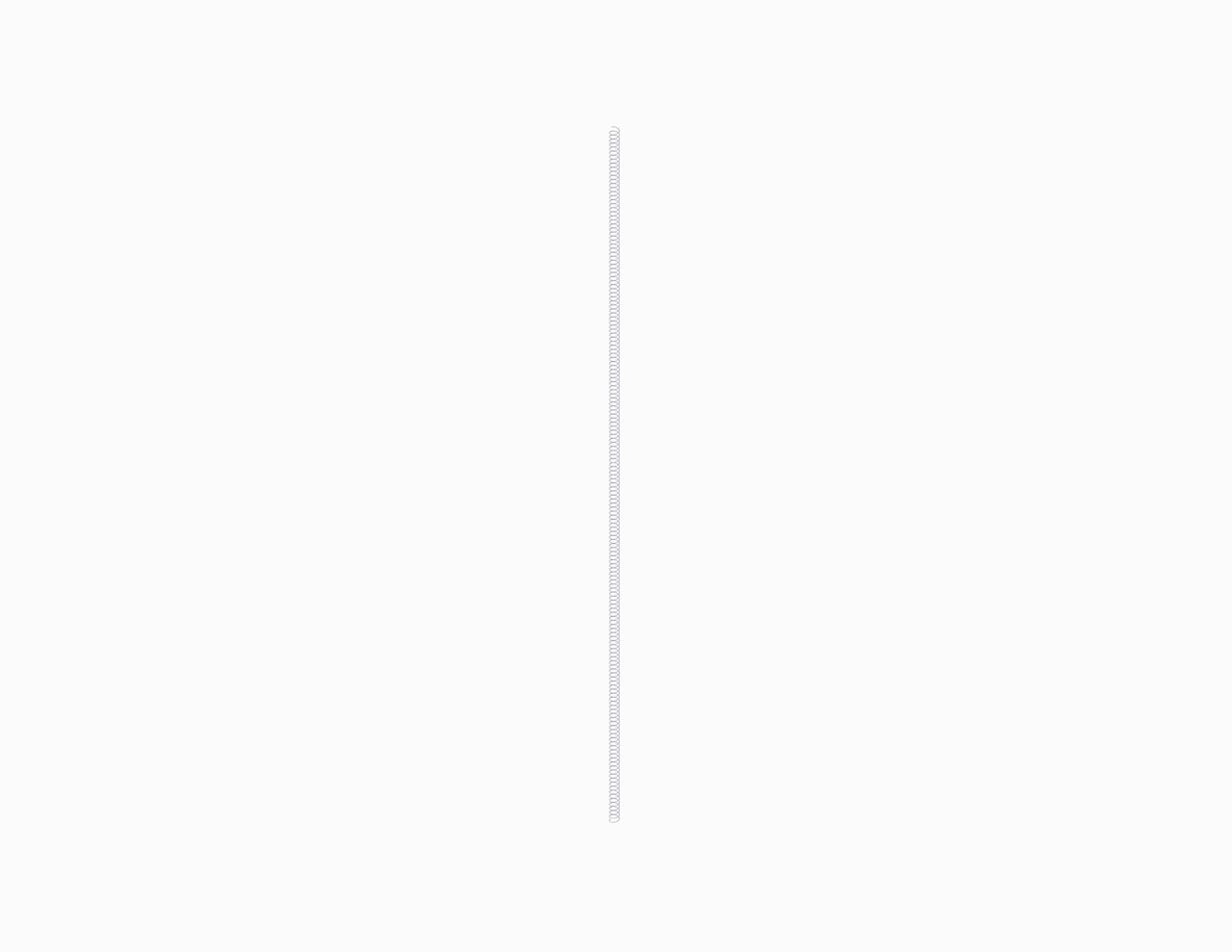

ST4-17 - 0.25 Inch O.D. Long Compression Spring

Inventory:
Estimated Lead Time

Long-length compression spring in 302/304 Stainless Steel. This spring features an O.D. of 0.25 Inch, and an I.D. of 0.216 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name ST4-17
Finish None
Inside Diameter 0.216 in
Length 20 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 0.25 in
Pitch 0.117 in
Product Image ST4_17CS
Rate 0.9996 lbs/in
Rate Constant 0.0833 lbf
SKU ST4-17CS
Solid Length Constant 0.16 in
Solid Length Per 0.16 lb
Suggested Max Load 0.9 lbf
Wire Diameter 0.017 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name ST4-17
Finish None
Inside Diameter 5.49 mm
Length 508 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 6.35 mm
Pitch 2.97 mm
Product Image ST4_17CS
Rate 0.18 N-mm
Rate Constant 14.59 N
SKU ST4-17CS
Solid Length Constant 4.06 mm
Solid Length Per 0.07 kg
Suggested Max Load 4 N
Wire Diameter 0.43 mm
