Century Spring

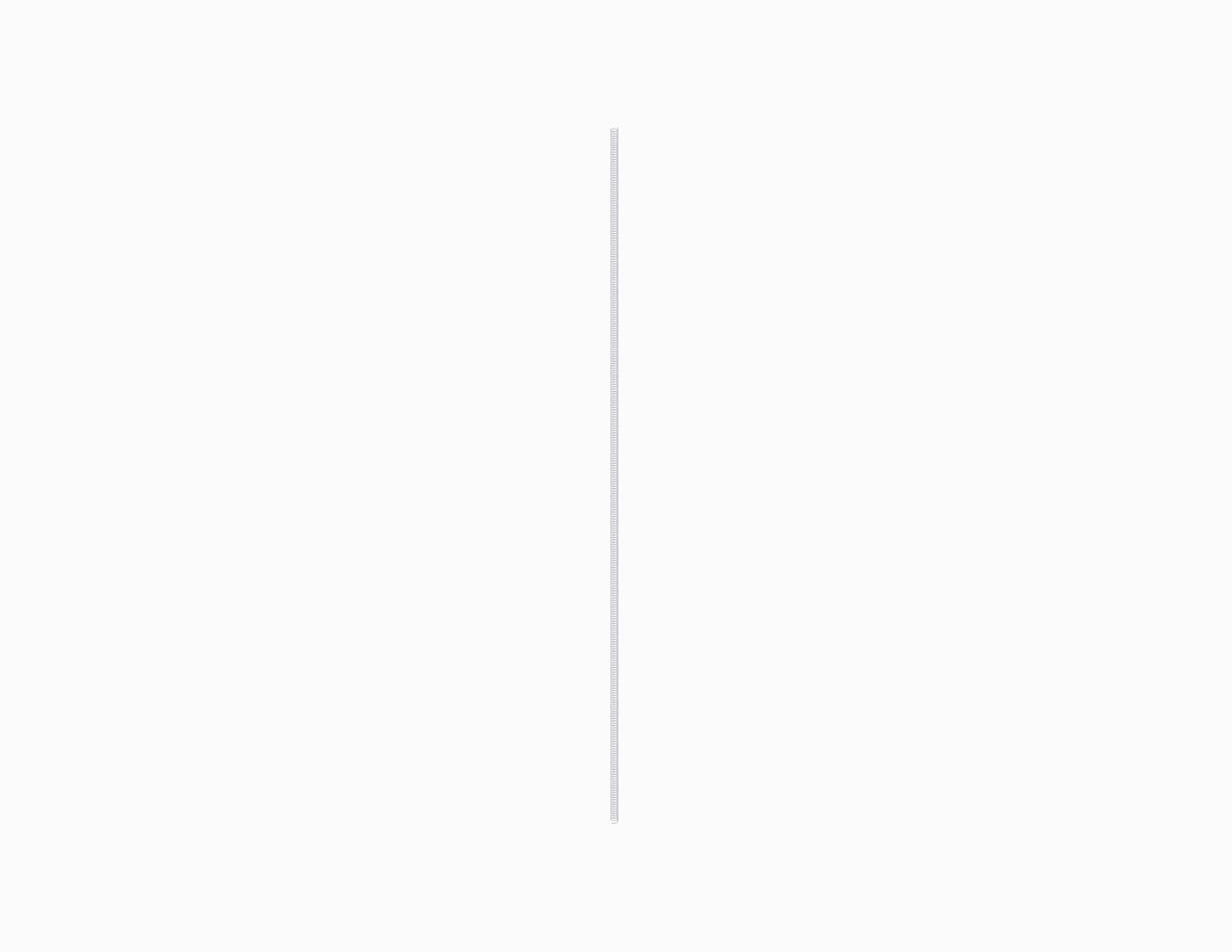

ST3-15CS - 0.187 Inch O.D. Long Compression Spring

Inventory Status
Estimated Lead Time

Long-length compression spring in 302/304 Stainless Steel. This spring features an O.D. of 0.187 Inch, and an I.D. of 0.157 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name ST3-15
Finish None
Inside Diameter 0.157 in
Length 20 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 0.187 in
Pitch 0.067 in
Product Image ST3_15CS
Rate 0.9996 lbs/in
Rate Constant 0.0833 lbf
SKU ST3-15CS
Solid Length Constant 0.21 in
Solid Length Per 0.21 lb
Suggested Max Load 0.8 lbf
Wire Diameter 0.015 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name ST3-15
Finish None
Inside Diameter 3.99 mm
Length 508 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 4.75 mm
Pitch 1.7 mm
Product Image ST3_15CS
Rate 0.18 N-mm
Rate Constant 14.59 N
SKU ST3-15CS
Solid Length Constant 5.33 mm
Solid Length Per 0.1 kg
Suggested Max Load 3.56 N
Wire Diameter 0.38 mm
