RAF Electronic Hardware

S440H - Brass 4-40 Threaded Stud

Brass 4-40 tapered threaded rod with a 0.172 Inch outside diameter and insert height of 0.219 Inch.

Download CAD
Unit System

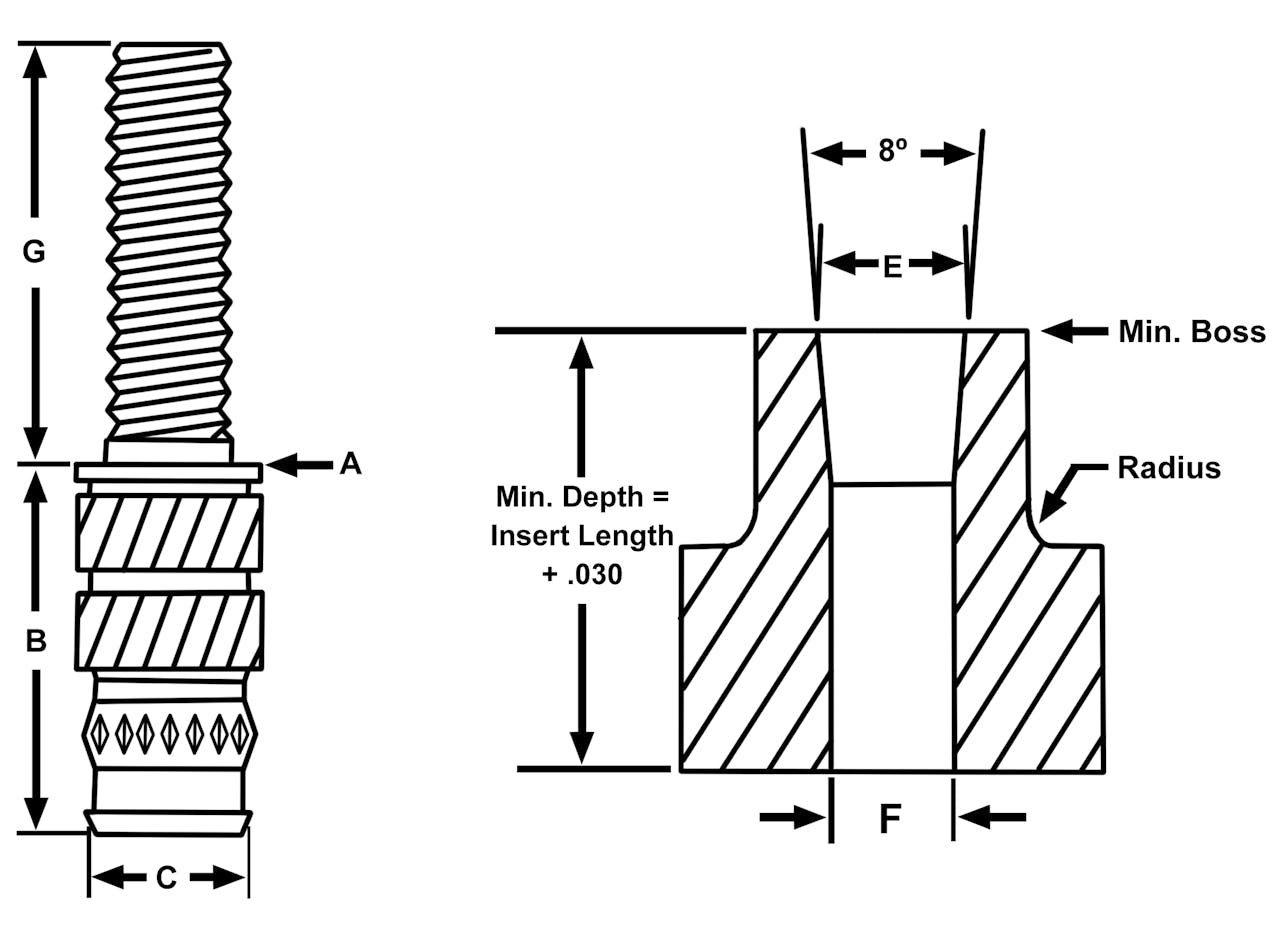

Specs (in standard)
Label Value
A 0.172 in
B 0.219 in
Boss Size 0.318 in
Brand RAF
C 0.146 in
Display Name S440H
F 0.141 in
Finish None
G 0.25 in
Length E 0.159 in
Material Brass
Max G 1.5 in
Series SH
Thread Size 4-40
Specs (in metric)
Label Value
A 4.37 mm
B 5.56 mm
Boss Size 8.08 mm
Brand RAF
C 3.71 mm
Display Name S440H
F 3.58 mm
Finish None
G 6.35 mm
Length E 4.04 mm
Material Brass
Max G 38.1 mm
Series SH
Thread Size 4-40
