RAF Electronic Hardware

S1032H-SS - Stainless Steel 10-32 Threaded Stud

Stainless Steel 10-32 tapered threaded rod with a 0.297 Inch outside diameter and insert height of 0.375 Inch.

Download CAD
Unit System
Specs (in standard)

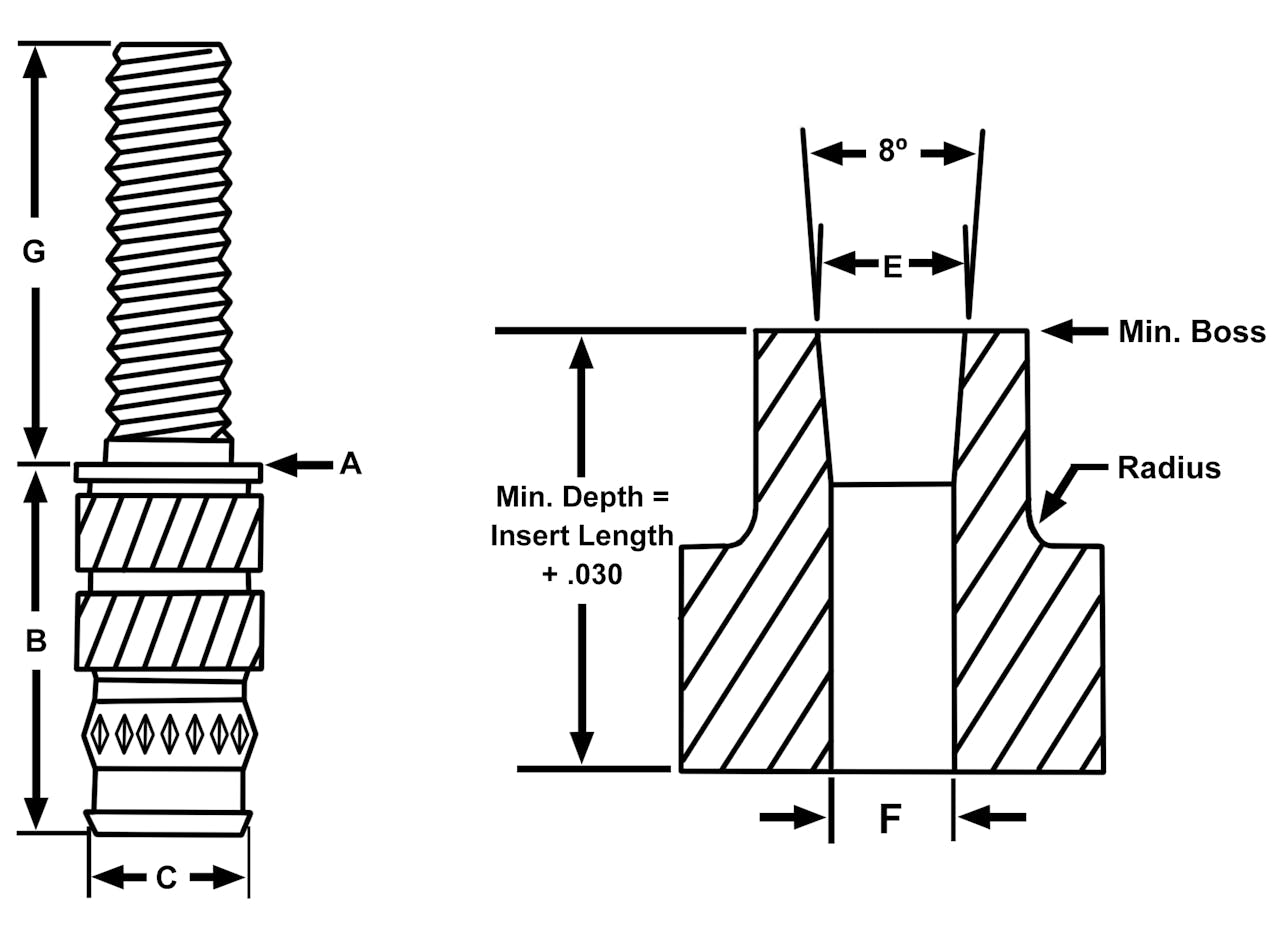

Label Value
A 0.297 in
B 0.375 in
Boss Size 0.554 in
Brand RAF
C 0.251 in
Display Name S1032H-SS
F 0.246 in
Finish None
G 0.25 in
Length E 0.277 in
Material Stainless Steel
Max G 1.5 in
Series SH
Thread Size 10-32
Specs (in metric)
Label Value
A 7.54 mm
B 9.53 mm
Boss Size 14.07 mm
Brand RAF
C 6.38 mm
Display Name S1032H-SS
F 6.25 mm
Finish None
G 6.35 mm
Length E 7.04 mm
Material Stainless Steel
Max G 38.1 mm
Series SH
Thread Size 10-32
