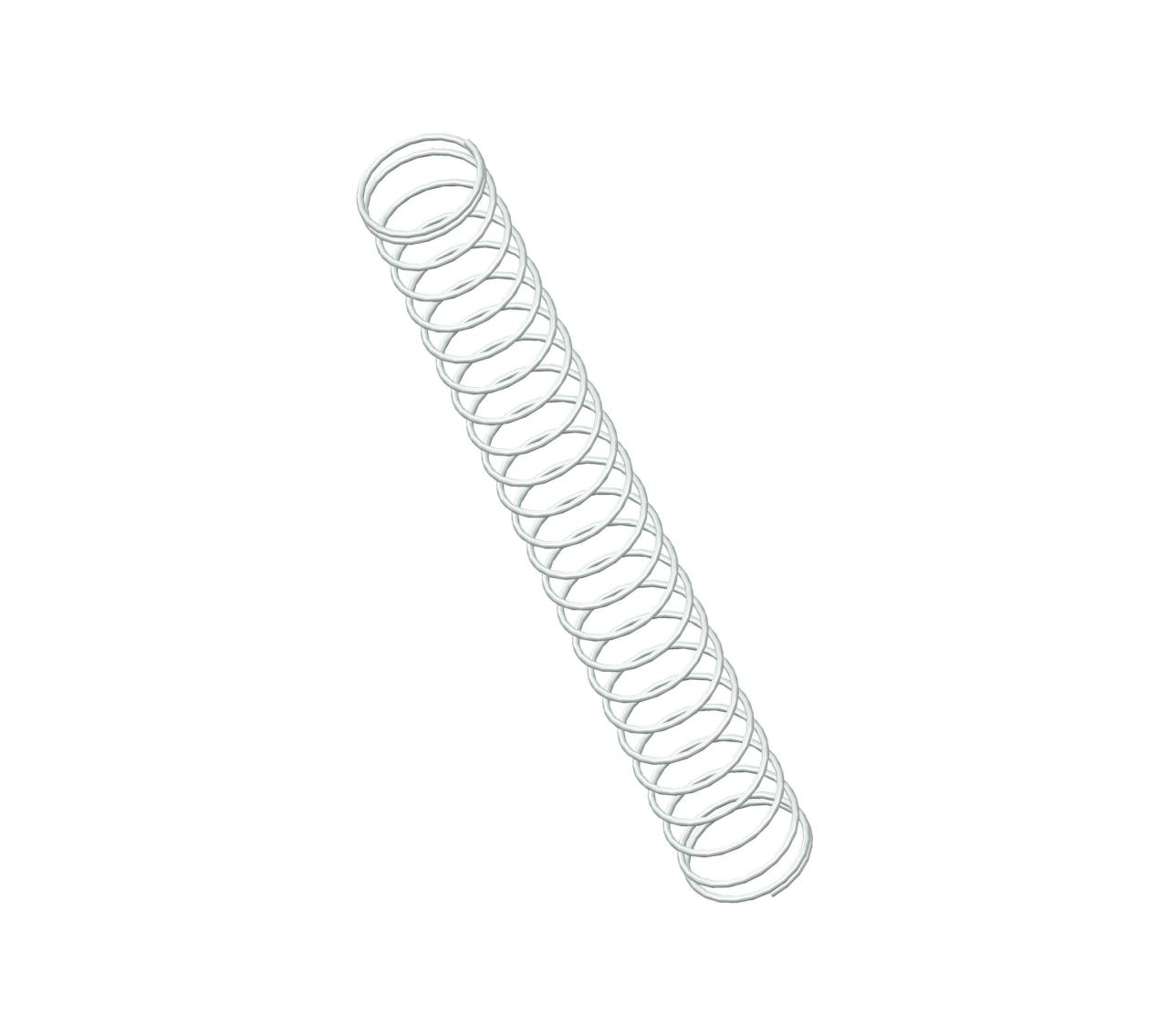

S-997CS - 5.75" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 24.3 coils and closed ends. This spring features an O.D. of 0.718", and an I.D. of 0.64".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-997
Ends Closed
Finish None
Free Length 5.75 in
Inside Diameter 0.64 in
Material 302/304 Stainless Steel
Outside Diameter 0.718 in
Part Type Standard
Rate 0.42 lbs/in
SKU S-997CS
Solid Length 0.98 in
Suggested Max Deflection 4.8 in
Suggested Max Load 2 lbf
Total Coils 24.3
Wire Diameter 0.039 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-997
Ends Closed
Finish None
Free Length 146.05 mm
Inside Diameter 16.26 mm
Material 302/304 Stainless Steel
Outside Diameter 18.24 mm
Part Type Standard
Rate 0.07 N/mm
SKU S-997CS
Solid Length 24.89 mm
Suggested Max Deflection 121.92 mm
Suggested Max Load 8.9 N
Total Coils 24.3
Wire Diameter 0.99 mm
The S-997 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The S-997CS compression spring is designed with a free length of 1.06" total of 14 coils, and a rate of 0.43 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The S-997 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
