Century Spring

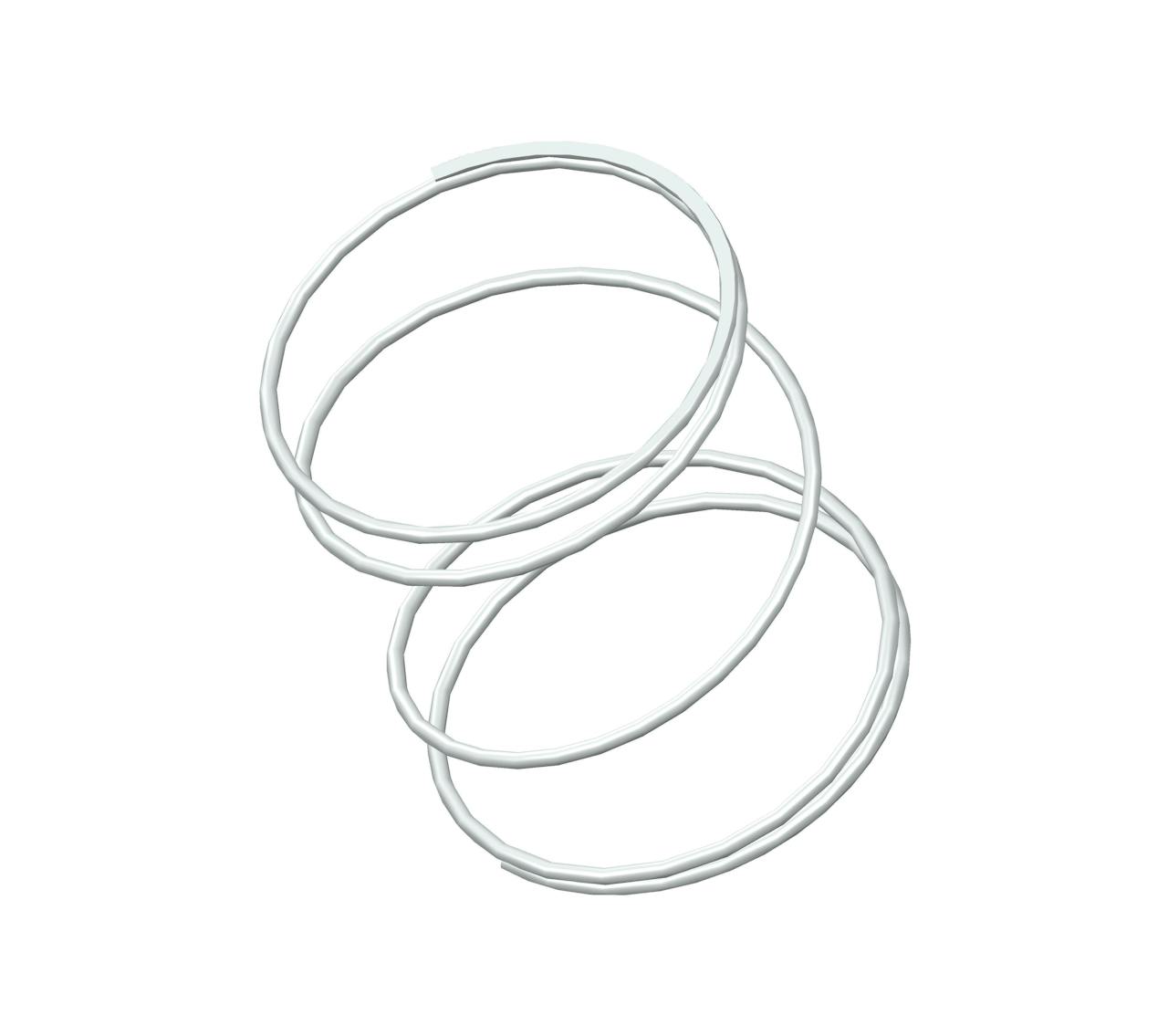

S-980CS - 3" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 4.67 coils and closed ends. This spring features an O.D. of 2.625", and an I.D. of 2.445".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-980
Ends Closed
Finish None
Free Length 3 in
Inside Diameter 2.445 in
Material 302/304 Stainless Steel
Outside Diameter 2.625 in
Part Type Standard
Rate 1.9 lbs/in
SKU S-980CS
Solid Length 0.51 in
Suggested Max Deflection 2.5 in
Suggested Max Load 4.8 lbf
Total Coils 4.67
Wire Diameter 0.09 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-980
Ends Closed
Finish None
Free Length 76.2 mm
Inside Diameter 62.1 mm
Material 302/304 Stainless Steel
Outside Diameter 66.68 mm
Part Type Standard
Rate 0.33 N/mm
SKU S-980CS
Solid Length 12.95 mm
Suggested Max Deflection 63.5 mm
Suggested Max Load 21.35 N
Total Coils 4.67
Wire Diameter 2.29 mm
The S-980 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The S-980CS compression spring is designed with a free length of 1.69" total of 10 coils, and a rate of 126 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The S-980 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
