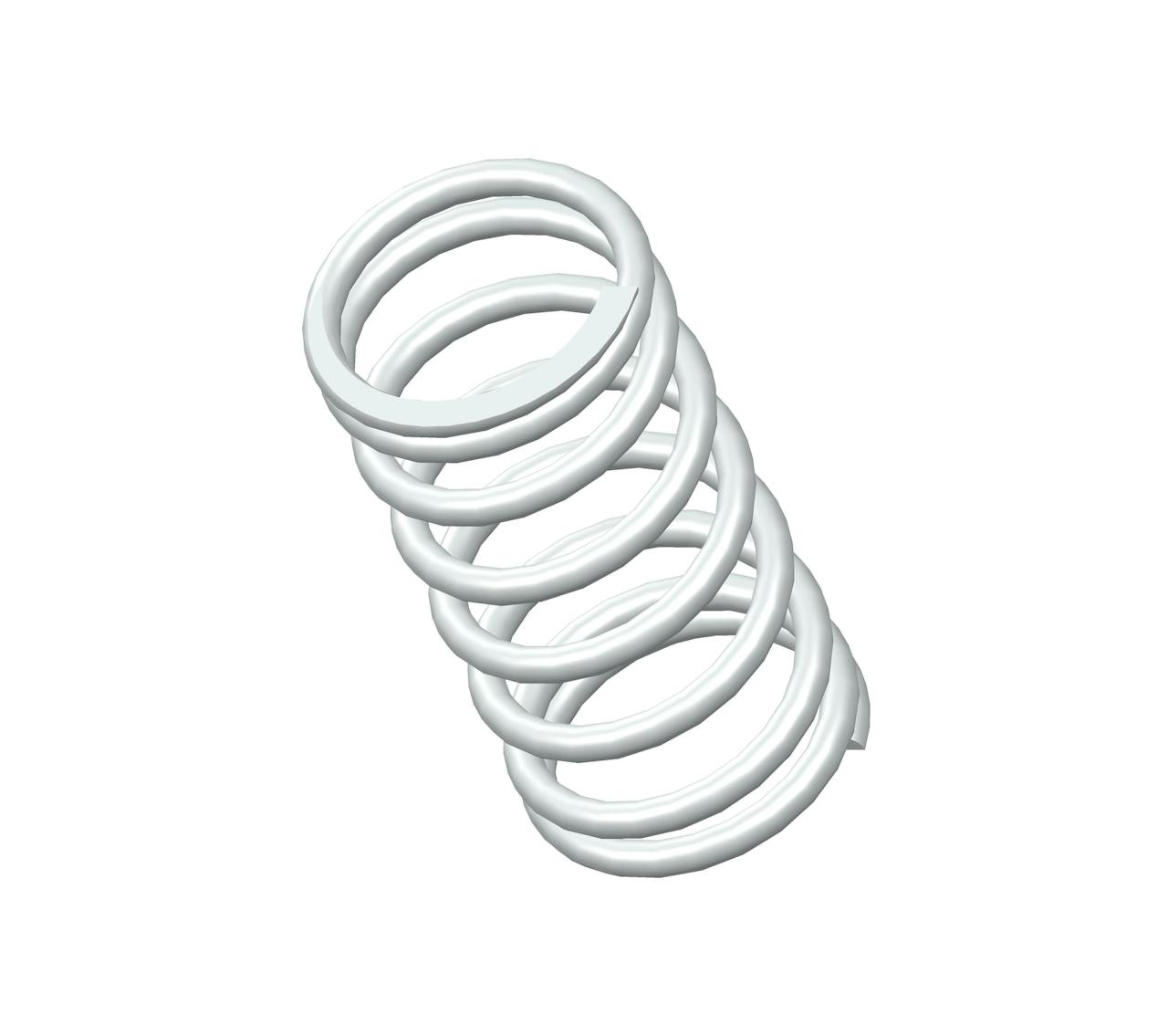

S-977CS - 2.66" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 8 coils and closed & ground ends. This spring features an O.D. of 1.296", and an I.D. of 1.026".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-977 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.66 in |
| Inside Diameter | 1.026 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.296 in |
| Part Type | Standard |
| Rate | 44 lbs/in |
| SKU | S-977CS |
| Solid Length | 1.08 in |
| Suggested Max Deflection | 1.2 in |
| Suggested Max Load | 53 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.135 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-977 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 67.56 mm |
| Inside Diameter | 26.06 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 32.92 mm |
| Part Type | Standard |
| Rate | 7.7 N/mm |
| SKU | S-977CS |
| Solid Length | 27.43 mm |
| Suggested Max Deflection | 30.48 mm |
| Suggested Max Load | 235.74 N |
| Total Coils | 8 |
| Wire Diameter | 3.43 mm |
The compression spring S-977CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-977 compression spring design exhibits exceptional tensile strength and resilience.
The S-977 design is manufactured with a free length of 2.66", with an outer diameter of 1.296", an inner diameter of 1.026", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 44 lbs/in.
The S-977CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-977 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-977 design is manufactured with a free length of 2.66", with an outer diameter of 1.296", an inner diameter of 1.026", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 44 lbs/in.
The S-977CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-977 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
