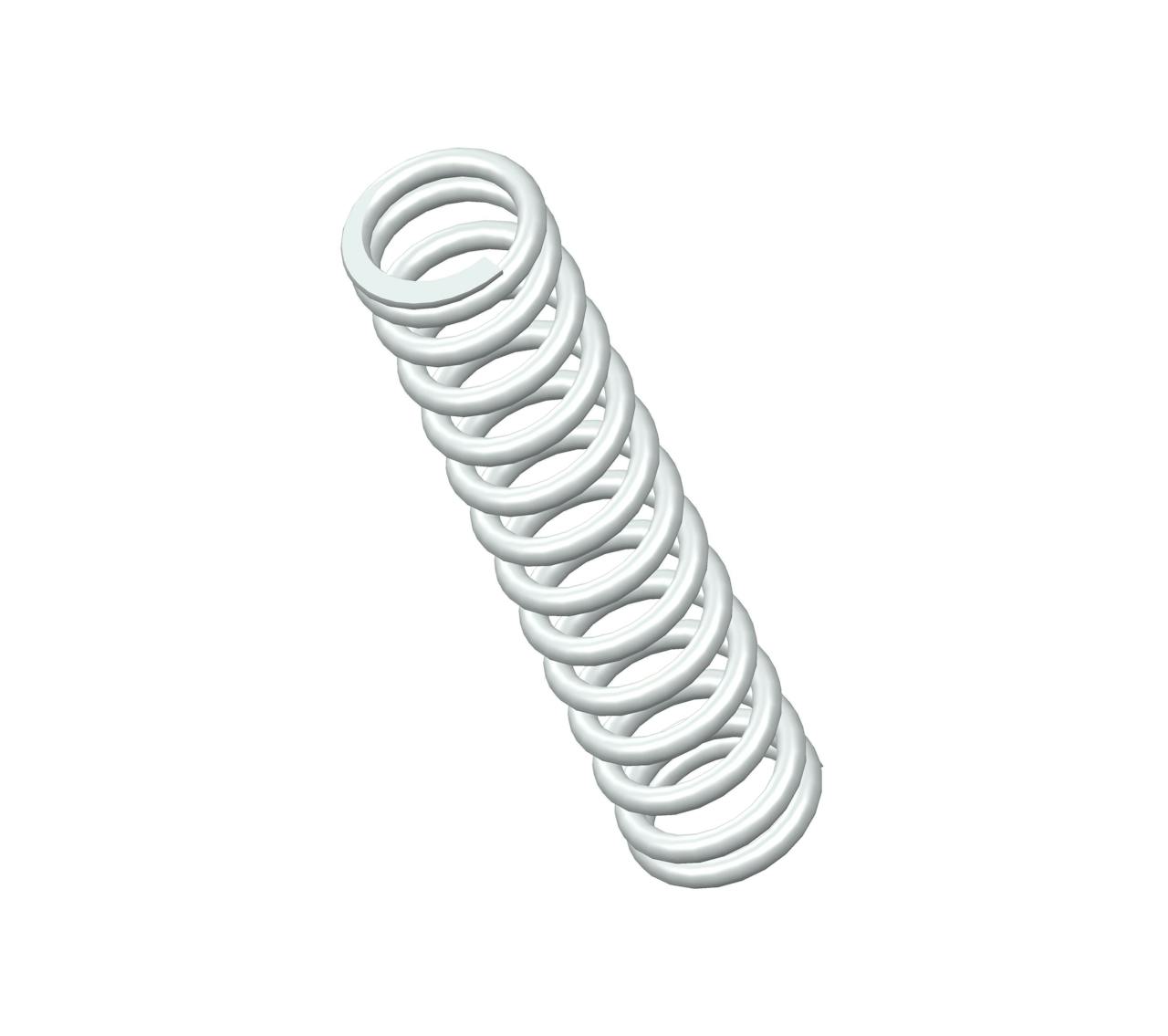

S-975CS - 1.13" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 13.8 coils and closed & ground ends. This spring features an O.D. of 0.25", and an I.D. of 0.18".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-975 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.13 in |
| Inside Diameter | 0.18 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.25 in |
| Part Type | Standard |
| Rate | 16 lbs/in |
| SKU | S-975CS |
| Solid Length | 0.48 in |
| Suggested Max Deflection | 0.38 in |
| Suggested Max Load | 6 lbf |
| Total Coils | 13.8 |
| Wire Diameter | 0.035 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-975 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 28.7 mm |
| Inside Diameter | 4.57 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 6.35 mm |
| Part Type | Standard |
| Rate | 2.8 N/mm |
| SKU | S-975CS |
| Solid Length | 12.19 mm |
| Suggested Max Deflection | 9.65 mm |
| Suggested Max Load | 26.69 N |
| Total Coils | 13.8 |
| Wire Diameter | 0.89 mm |
The S-975 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-975CS compression spring is designed with a free length of 1.16" total of 4 coils, and a rate of 104 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-975 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-975CS compression spring is designed with a free length of 1.16" total of 4 coils, and a rate of 104 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-975 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
