S-974CS - 1.16" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

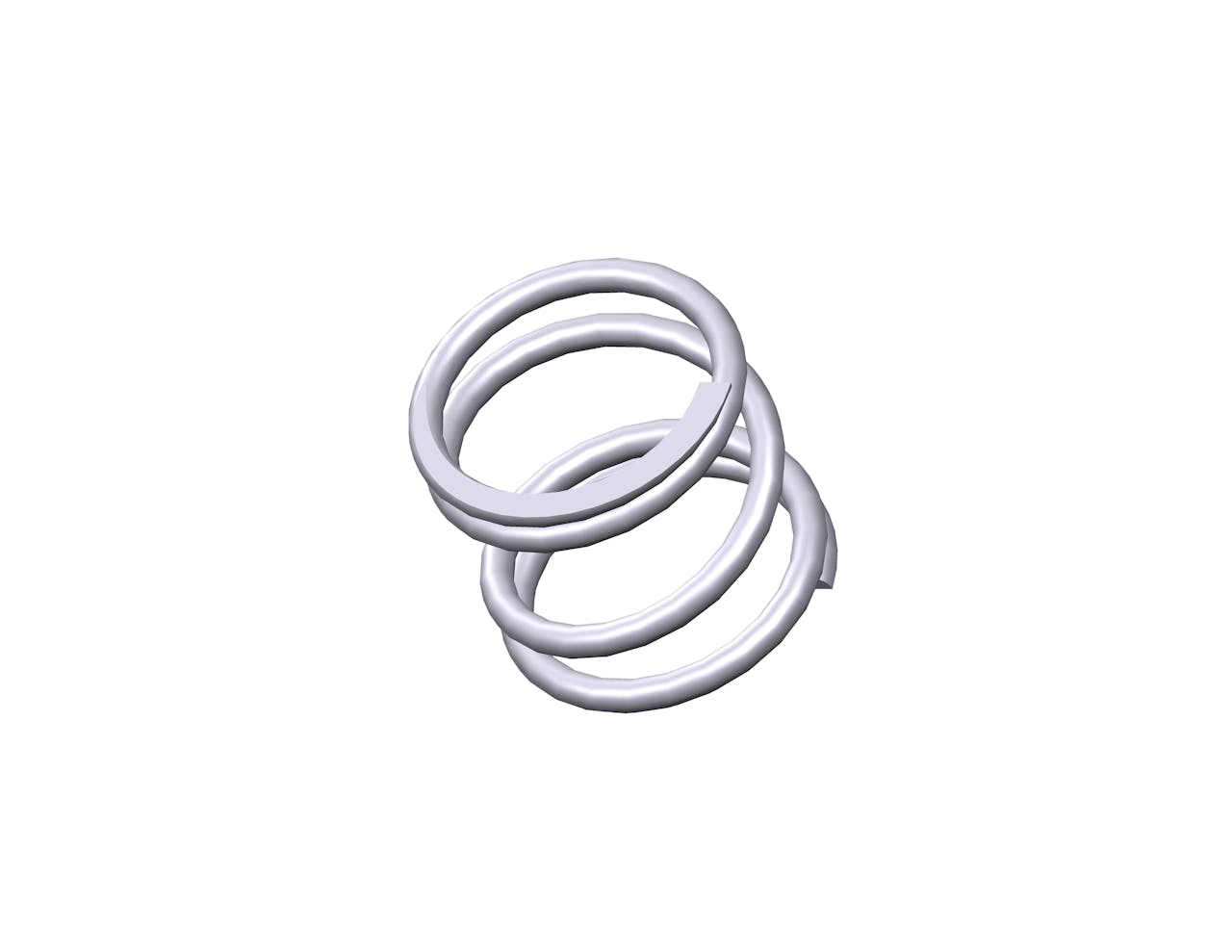

Compression spring manufactured from 302/304 stainless steel with 4 coils and closed & ground ends. This spring features an O.D. of 1.219", and an I.D. of 0.979".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-974 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.16 in |
| Inside Diameter | 0.979 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.219 in |
| Part Type | Standard |
| Rate | 104 lbs/in |
| SKU | S-974CS |
| Solid Length | 0.47 in |
| Suggested Max Deflection | 0.39 in |
| Suggested Max Load | 41 lbf |
| Total Coils | 4 |
| Wire Diameter | 0.12 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-974 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 29.46 mm |
| Inside Diameter | 24.87 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 30.96 mm |
| Part Type | Standard |
| Rate | 18.21 N/mm |
| SKU | S-974CS |
| Solid Length | 11.94 mm |
| Suggested Max Deflection | 9.91 mm |
| Suggested Max Load | 182.37 N |
| Total Coils | 4 |
| Wire Diameter | 3.05 mm |
The compression spring S-974CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-974 compression spring design exhibits exceptional tensile strength and resilience.
The S-974 design is manufactured with a free length of 1.16", with an outer diameter of 1.219", an inner diameter of 0.979", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 104 lbs/in.
The S-974CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-974 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
