S-971CS - 0.91" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

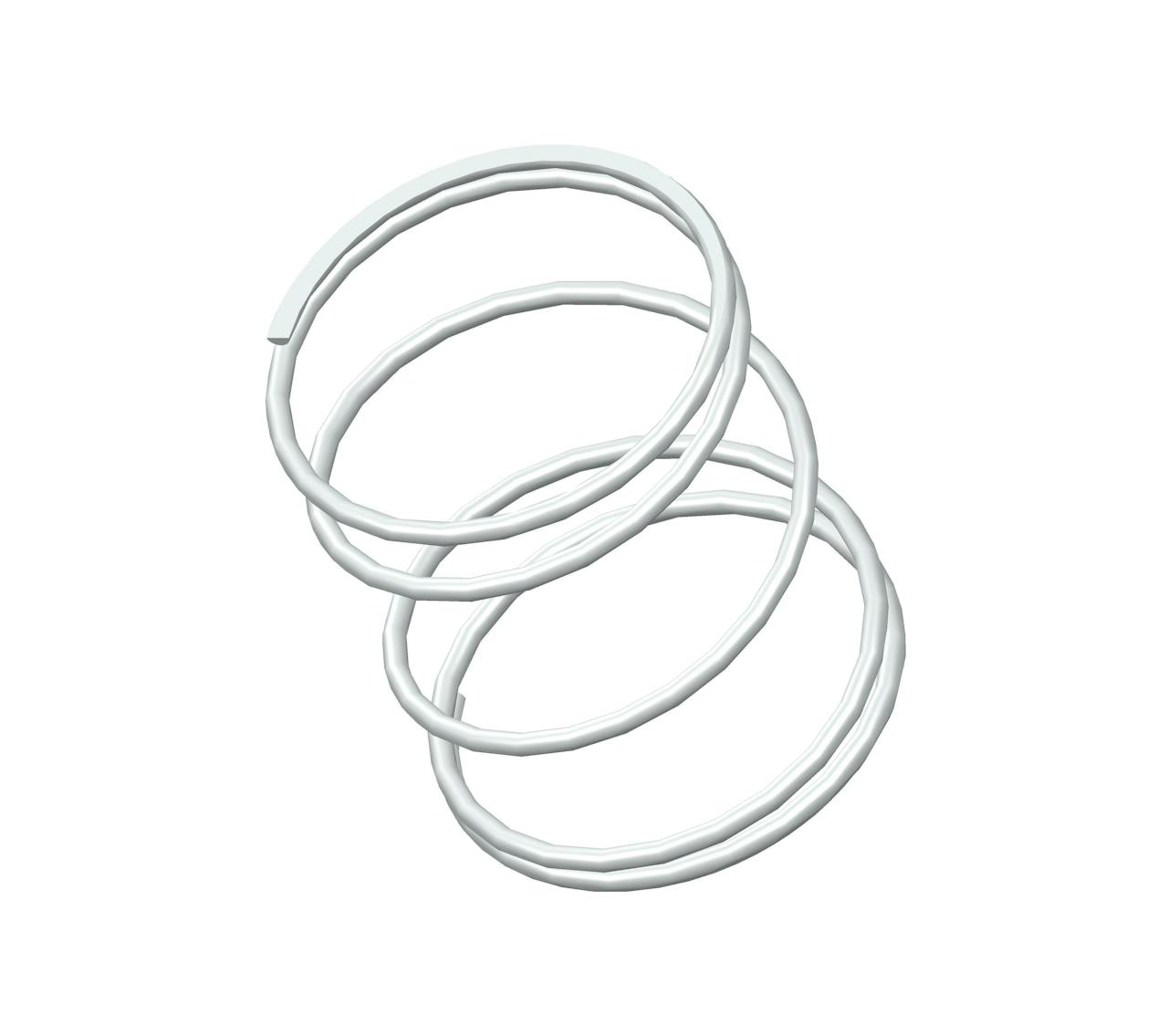

Compression spring manufactured from 302/304 stainless steel with 5 coils and closed & ground ends. This spring features an O.D. of 0.781", and an I.D. of 0.705".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-971
Ends Closed & Ground
Finish None
Free Length 0.91 in
Inside Diameter 0.705 in
Material 302/304 Stainless Steel
Outside Diameter 0.781 in
Part Type Standard
Rate 2.1 lbs/in
SKU S-971CS
Solid Length 0.19 in
Suggested Max Deflection 0.72 in
Suggested Max Load 1.5 lbf
Total Coils 5
Wire Diameter 0.038 in
The compression spring S-971CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-971 compression spring design exhibits exceptional tensile strength and resilience.

The S-971 design is manufactured with a free length of 0.91", with an outer diameter of 0.781", an inner diameter of 0.705", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.1 lbs/in.

The S-971CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring S-971 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
