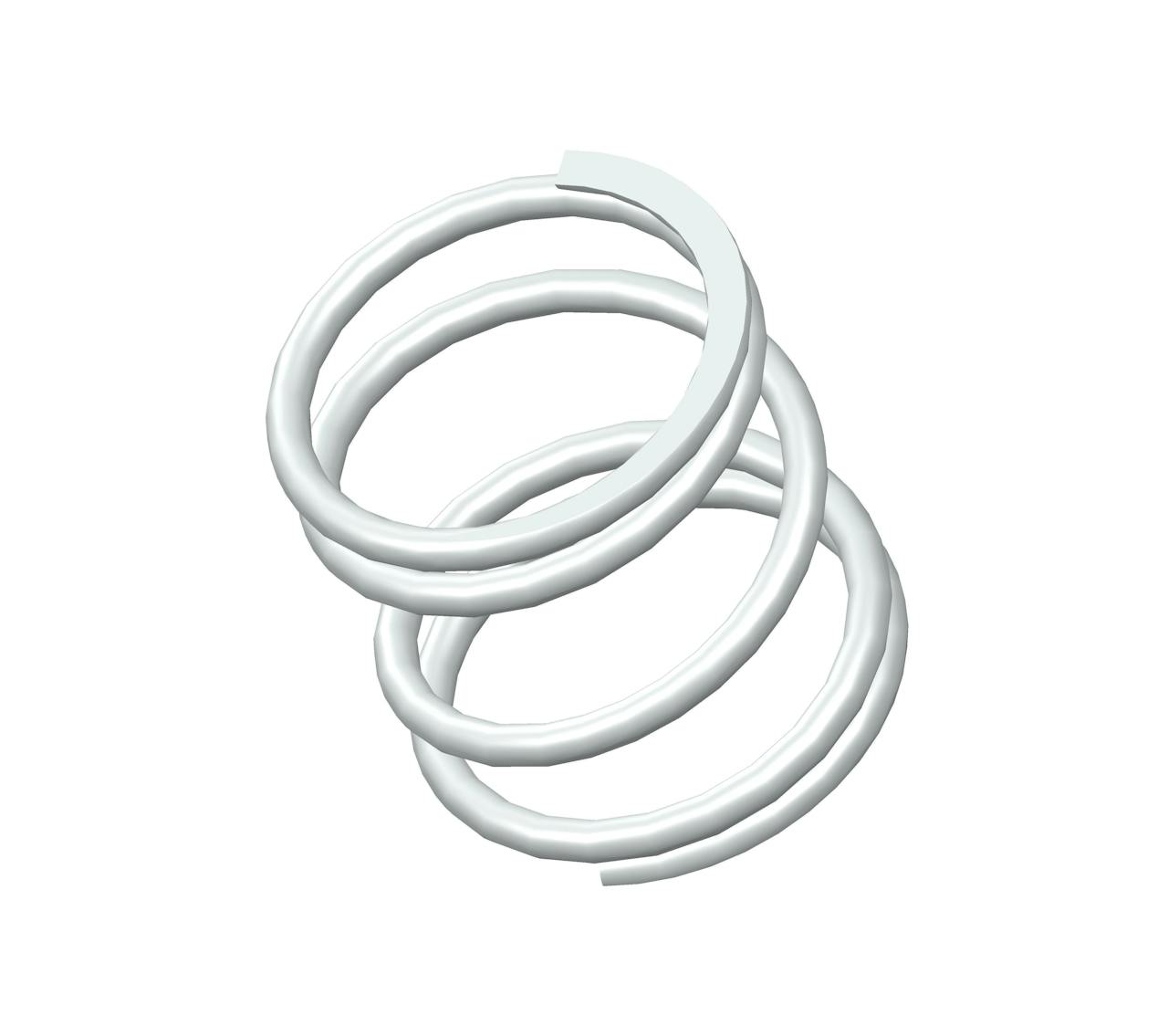

S-952CS - 1.97" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 4.5 coils and closed & ground ends. This spring features an O.D. of 1.906", and an I.D. of 1.582".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-952 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.97 in |
| Inside Diameter | 1.582 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.906 in |
| Part Type | Standard |
| Rate | 65 lbs/in |
| SKU | S-952CS |
| Solid Length | 0.73 in |
| Suggested Max Deflection | 0.92 in |
| Suggested Max Load | 60 lbf |
| Total Coils | 4.5 |
| Wire Diameter | 0.162 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-952 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 50.04 mm |
| Inside Diameter | 40.18 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 48.41 mm |
| Part Type | Standard |
| Rate | 11.38 N/mm |
| SKU | S-952CS |
| Solid Length | 18.54 mm |
| Suggested Max Deflection | 23.37 mm |
| Suggested Max Load | 266.88 N |
| Total Coils | 4.5 |
| Wire Diameter | 4.11 mm |
The compression spring S-952CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-952 compression spring design exhibits exceptional tensile strength and resilience.
The S-952 design is manufactured with a free length of 1.97", with an outer diameter of 1.906", an inner diameter of 1.582", and a total of 4.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 65 lbs/in.
The S-952CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-952 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
