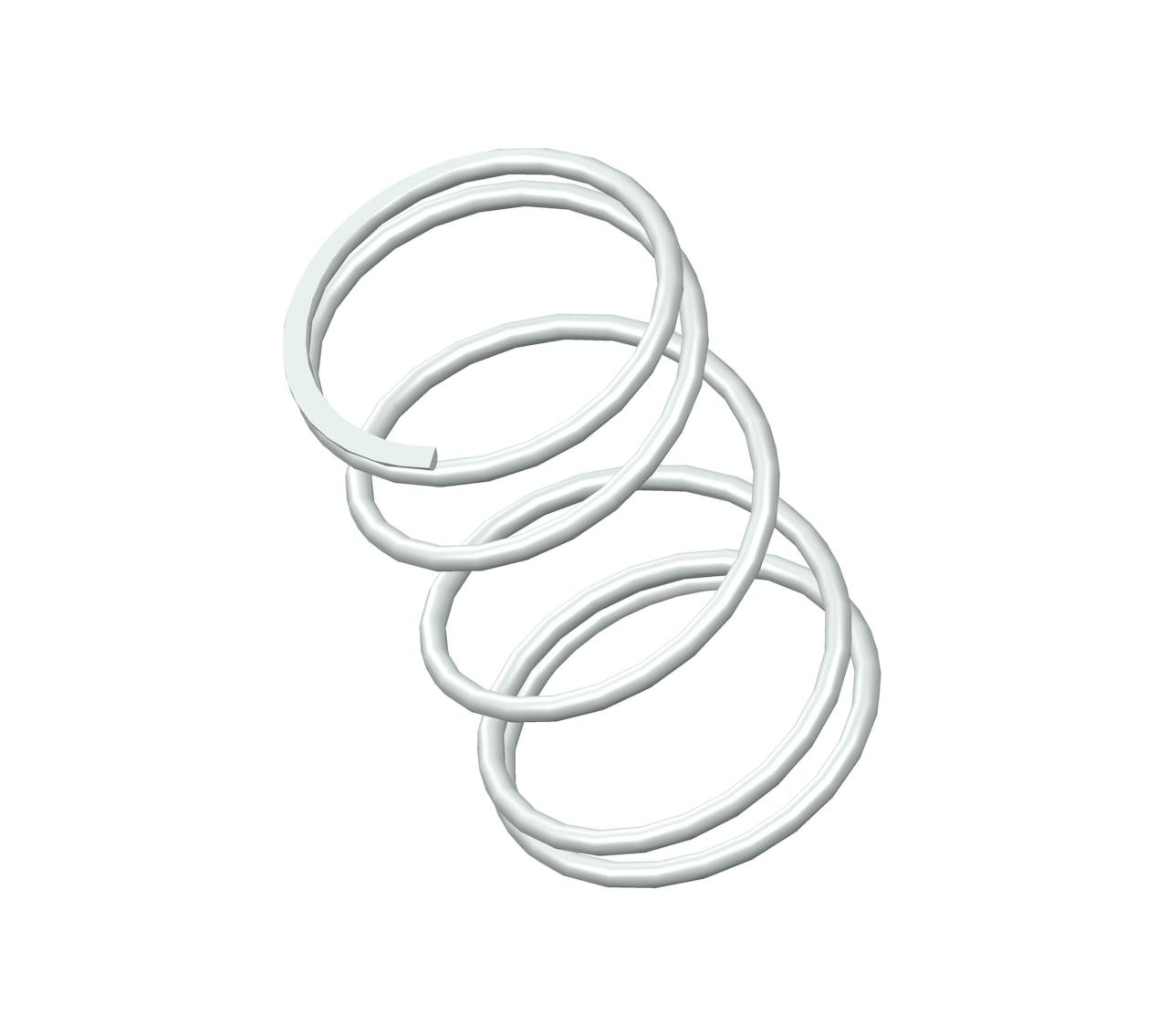

S-947CS - 3.09" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 5.5 coils and closed & ground ends. This spring features an O.D. of 1.875", and an I.D. of 1.635".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-947 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 3.09 in |
| Inside Diameter | 1.635 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.875 in |
| Part Type | Standard |
| Rate | 14 lbs/in |
| SKU | S-947CS |
| Solid Length | 0.66 in |
| Suggested Max Deflection | 2 in |
| Suggested Max Load | 27 lbf |
| Total Coils | 5.5 |
| Wire Diameter | 0.12 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-947 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 78.49 mm |
| Inside Diameter | 41.53 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 47.63 mm |
| Part Type | Standard |
| Rate | 2.45 N/mm |
| SKU | S-947CS |
| Solid Length | 16.76 mm |
| Suggested Max Deflection | 50.8 mm |
| Suggested Max Load | 120.1 N |
| Total Coils | 5.5 |
| Wire Diameter | 3.05 mm |
The compression spring S-947CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-947 compression spring design exhibits exceptional tensile strength and resilience.
The S-947 design is manufactured with a free length of 3.09", with an outer diameter of 1.875", an inner diameter of 1.635", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 14 lbs/in.
The S-947CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-947 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
