S-941CS - 2.25" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

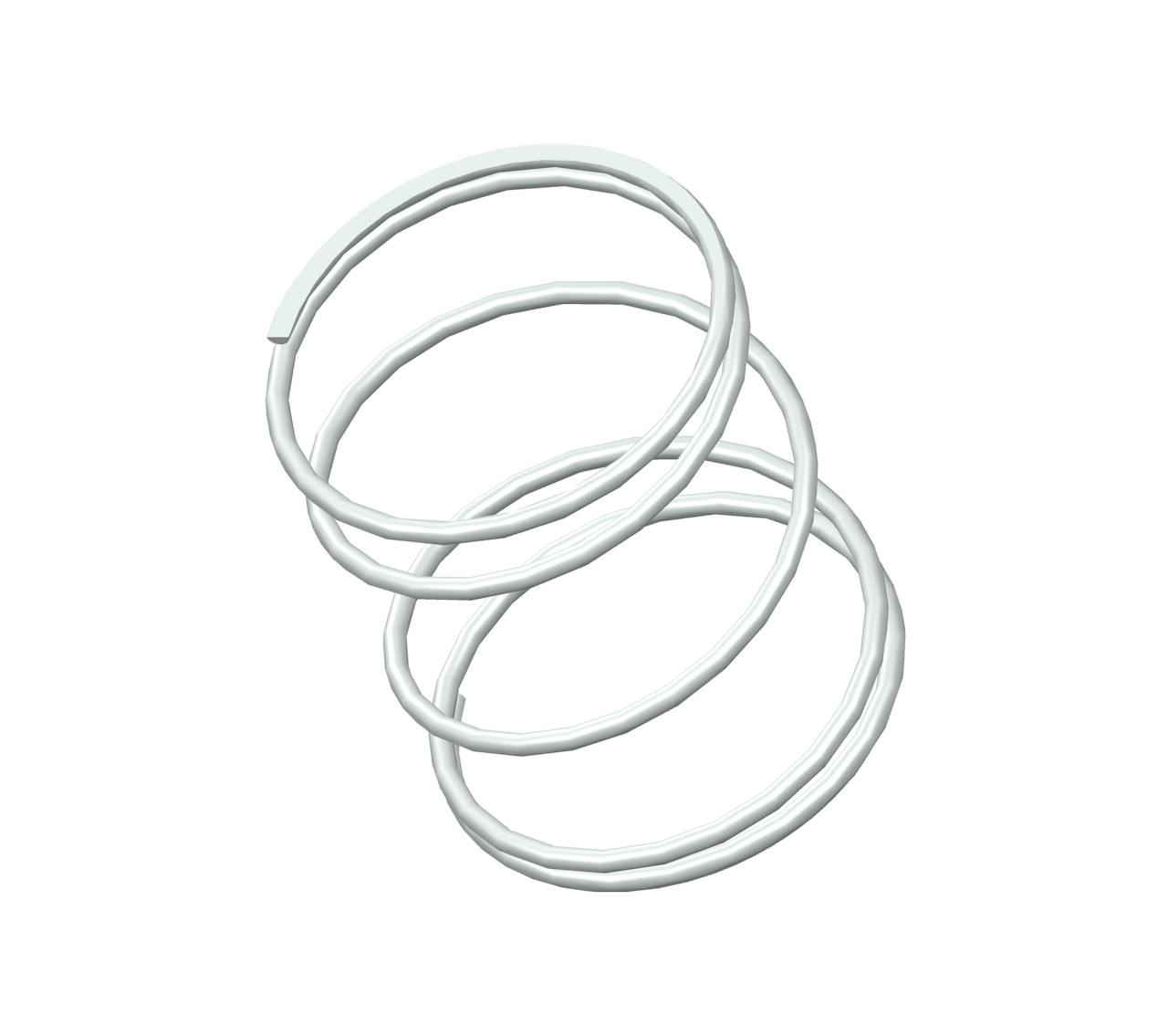

Compression spring manufactured from 302/304 stainless steel with 5 coils and closed ends. This spring features an O.D. of 1.921", and an I.D. of 1.739".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-941 |
| Ends | Closed |
| Finish | None |
| Free Length | 2.25 in |
| Inside Diameter | 1.739 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.921 in |
| Part Type | Standard |
| Rate | 4.7 lbs/in |
| SKU | S-941CS |
| Solid Length | 0.55 in |
| Suggested Max Deflection | 1.7 in |
| Suggested Max Load | 7.9 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.091 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-941 |
| Ends | Closed |
| Finish | None |
| Free Length | 57.15 mm |
| Inside Diameter | 44.17 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 48.79 mm |
| Part Type | Standard |
| Rate | 0.82 N/mm |
| SKU | S-941CS |
| Solid Length | 13.97 mm |
| Suggested Max Deflection | 43.18 mm |
| Suggested Max Load | 35.14 N |
| Total Coils | 5 |
| Wire Diameter | 2.31 mm |
The compression spring S-941CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-941 compression spring design exhibits exceptional tensile strength and resilience.
The S-941 design is manufactured with a free length of 2.25", with an outer diameter of 1.921", an inner diameter of 1.739", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.7 lbs/in.
The S-941CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-941 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
