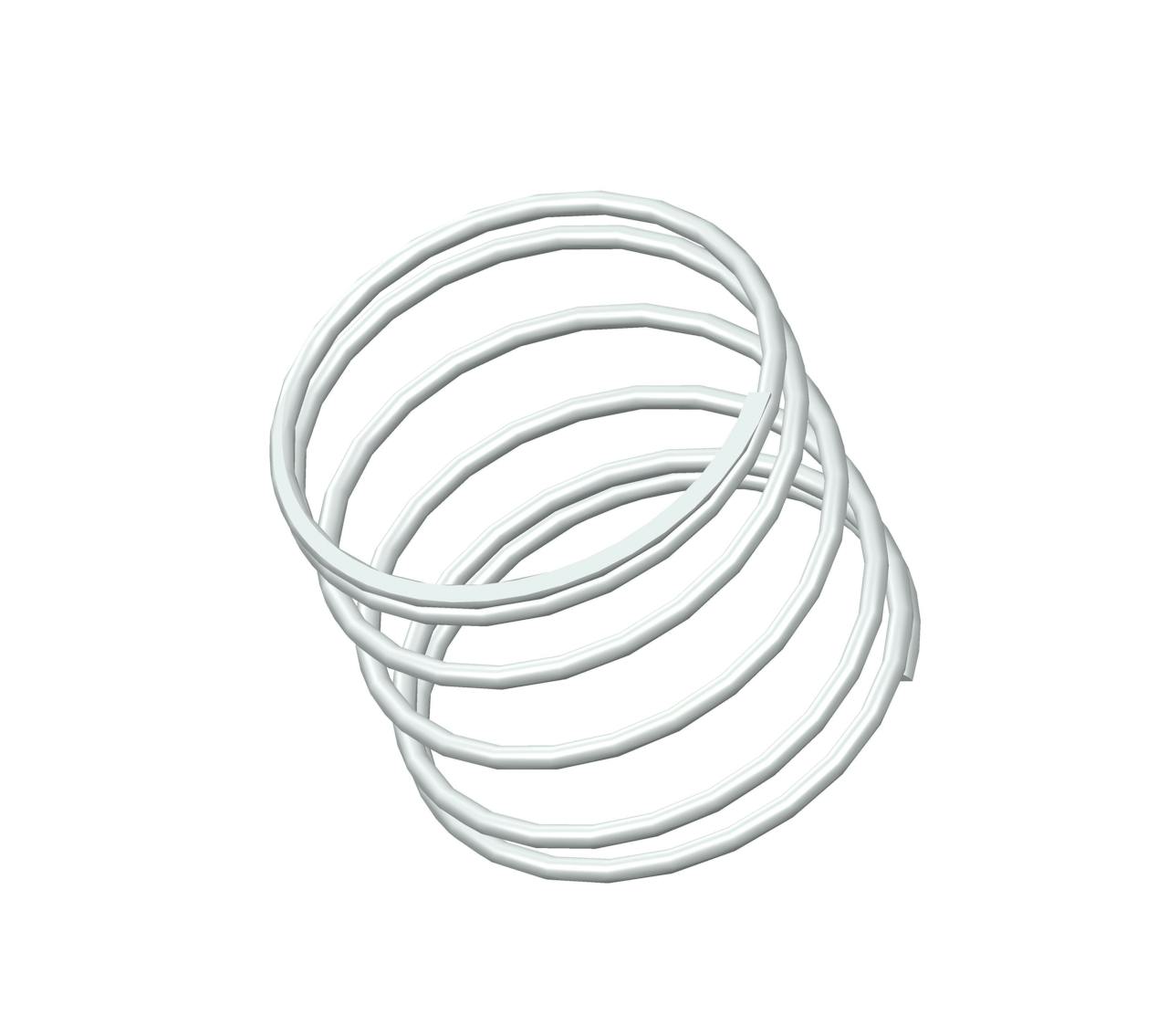

S-931CS - 0.97" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 6 coils and closed & ground ends. This spring features an O.D. of 1.125", and an I.D. of 1.023".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-931 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.97 in |
| Inside Diameter | 1.023 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.125 in |
| Part Type | Standard |
| Rate | 1.7 lbs/in |
| SKU | S-931CS |
| Solid Length | 0.31 in |
| Suggested Max Deflection | 0.66 in |
| Suggested Max Load | 1.1 lbf |
| Total Coils | 6 |
| Wire Diameter | 0.051 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-931 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 24.64 mm |
| Inside Diameter | 25.98 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 28.58 mm |
| Part Type | Standard |
| Rate | 0.3 N/mm |
| SKU | S-931CS |
| Solid Length | 7.87 mm |
| Suggested Max Deflection | 16.76 mm |
| Suggested Max Load | 4.89 N |
| Total Coils | 6 |
| Wire Diameter | 1.3 mm |
The S-931 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-931CS compression spring is designed with a free length of 0.94" total of 11 coils, and a rate of 73 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-931 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-931CS compression spring is designed with a free length of 0.94" total of 11 coils, and a rate of 73 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-931 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
