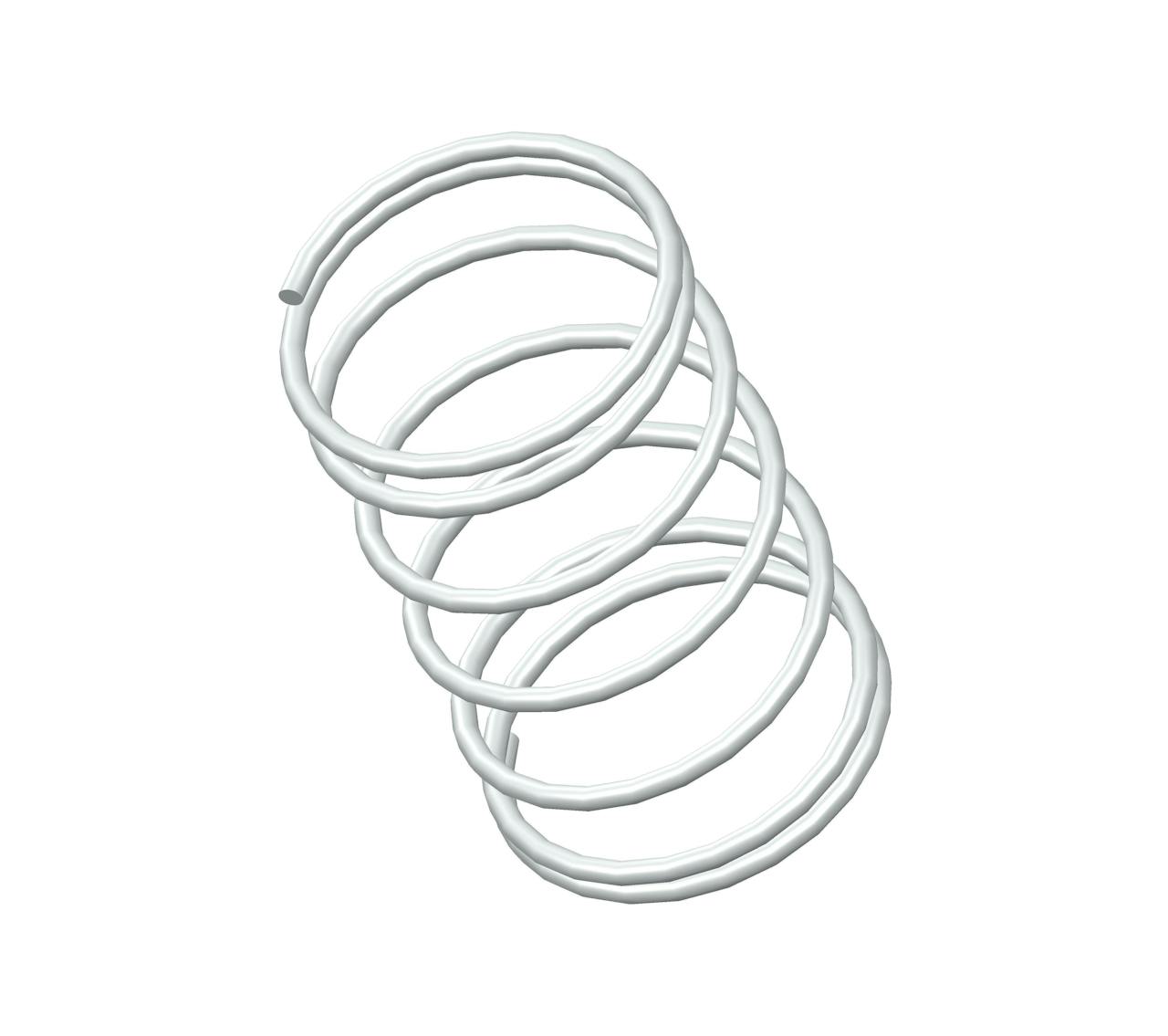

S-920CS - 0.75" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 7 coils and closed ends. This spring features an O.D. of 0.437", and an I.D. of 0.385".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-920 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.75 in |
| Inside Diameter | 0.385 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.437 in |
| Part Type | Standard |
| Rate | 1.6 lbs/in |
| SKU | S-920CS |
| Solid Length | 0.21 in |
| Suggested Max Deflection | 0.54 in |
| Suggested Max Load | 0.89 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.026 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-920 |
| Ends | Closed |
| Finish | None |
| Free Length | 19.05 mm |
| Inside Diameter | 9.78 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 11.1 mm |
| Part Type | Standard |
| Rate | 0.28 N/mm |
| SKU | S-920CS |
| Solid Length | 5.33 mm |
| Suggested Max Deflection | 13.72 mm |
| Suggested Max Load | 3.96 N |
| Total Coils | 7 |
| Wire Diameter | 0.66 mm |
The S-920 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-920CS compression spring is designed with a free length of 2.63" total of 13.5 coils, and a rate of 212 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-920 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-920CS compression spring is designed with a free length of 2.63" total of 13.5 coils, and a rate of 212 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-920 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
