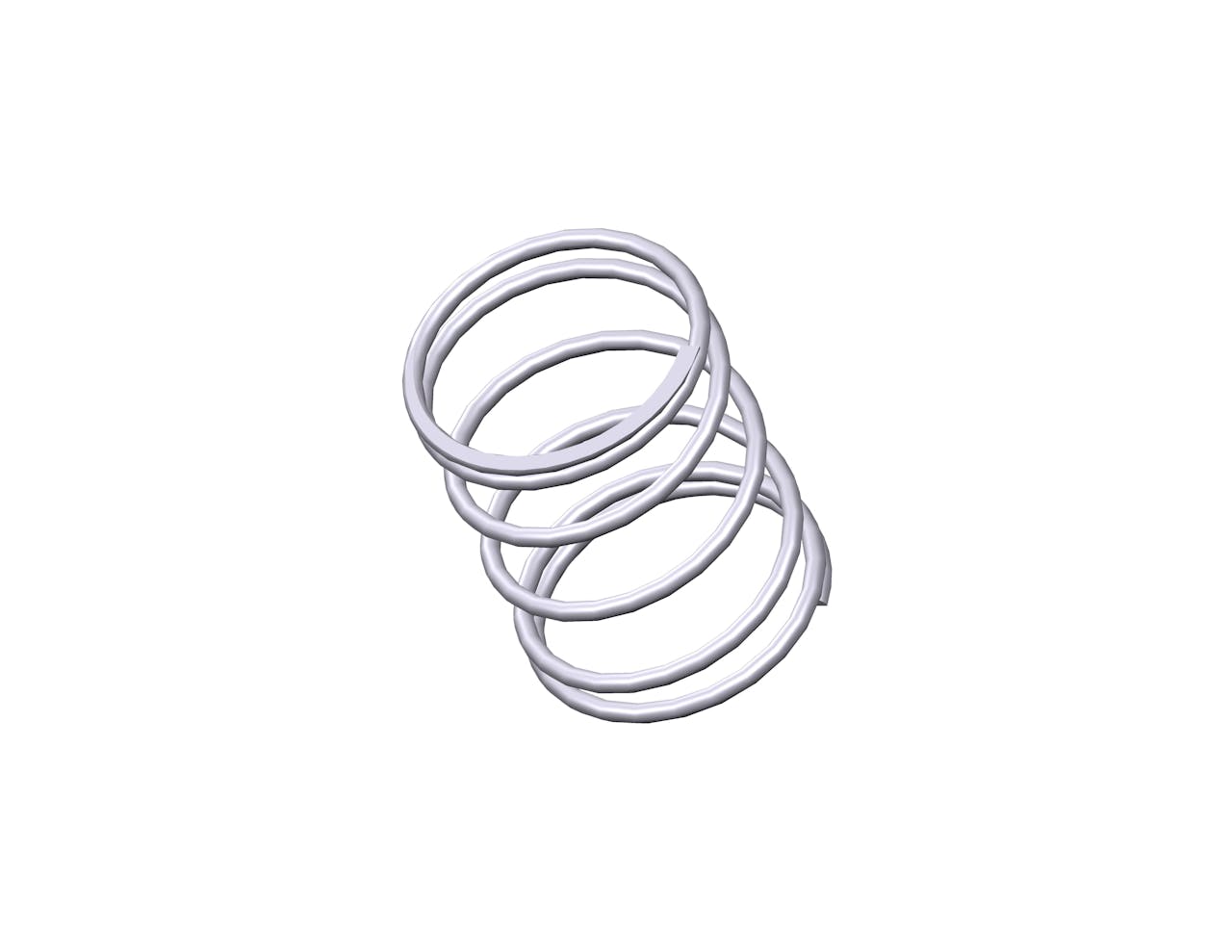

S-911CS - 1.47" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 6 coils and closed & ground ends. This spring features an O.D. of 1.125", and an I.D. of 0.981".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-911 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.47 in |
| Inside Diameter | 0.981 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.125 in |
| Part Type | Standard |
| Rate | 7.3 lbs/in |
| SKU | S-911CS |
| Solid Length | 0.43 in |
| Suggested Max Deflection | 1 in |
| Suggested Max Load | 7.6 lbf |
| Total Coils | 6 |
| Wire Diameter | 0.072 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-911 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 37.34 mm |
| Inside Diameter | 24.92 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 28.58 mm |
| Part Type | Standard |
| Rate | 1.28 N/mm |
| SKU | S-911CS |
| Solid Length | 10.92 mm |
| Suggested Max Deflection | 25.4 mm |
| Suggested Max Load | 33.8 N |
| Total Coils | 6 |
| Wire Diameter | 1.83 mm |
The compression spring S-911CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-911 compression spring design exhibits exceptional tensile strength and resilience.
The S-911 design is manufactured with a free length of 1.47", with an outer diameter of 1.125", an inner diameter of 0.981", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 7.3 lbs/in.
The S-911CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-911 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-911 design is manufactured with a free length of 1.47", with an outer diameter of 1.125", an inner diameter of 0.981", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 7.3 lbs/in.
The S-911CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-911 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
