S-909CS - 2.44" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

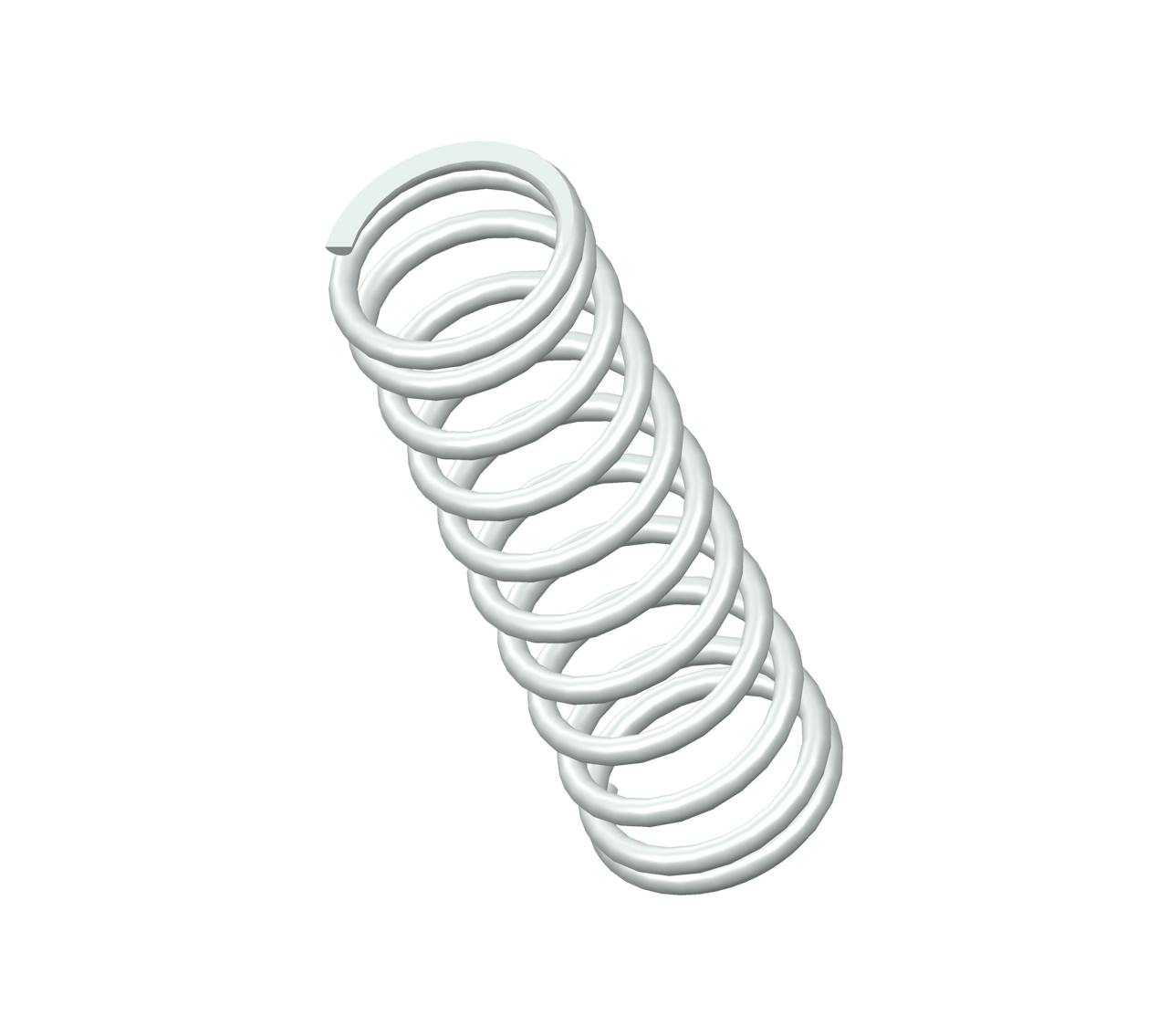

Compression spring manufactured from 302/304 stainless steel with 11.9 coils and closed & ground ends. This spring features an O.D. of 0.765", and an I.D. of 0.603".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-909 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.44 in |
| Inside Diameter | 0.603 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.765 in |
| Part Type | Standard |
| Rate | 18 lbs/in |
| SKU | S-909CS |
| Solid Length | 0.972 in |
| Suggested Max Deflection | 1.263 in |
| Suggested Max Load | 23 lbf |
| Total Coils | 11.9 |
| Wire Diameter | 0.082 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-909 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 61.98 mm |
| Inside Diameter | 15.32 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 19.43 mm |
| Part Type | Standard |
| Rate | 3.15 N/mm |
| SKU | S-909CS |
| Solid Length | 24.69 mm |
| Suggested Max Deflection | 32.08 mm |
| Suggested Max Load | 102.3 N |
| Total Coils | 11.9 |
| Wire Diameter | 2.08 mm |
The compression spring S-909CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-909 compression spring design exhibits exceptional tensile strength and resilience.
The S-909 design is manufactured with a free length of 2.44", with an outer diameter of 0.765", an inner diameter of 0.603", and a total of 11.9 coils, expertly designed to deliver consistent compression characteristics including a rate of 18 lbs/in.
The S-909CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-909 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
