Century Spring

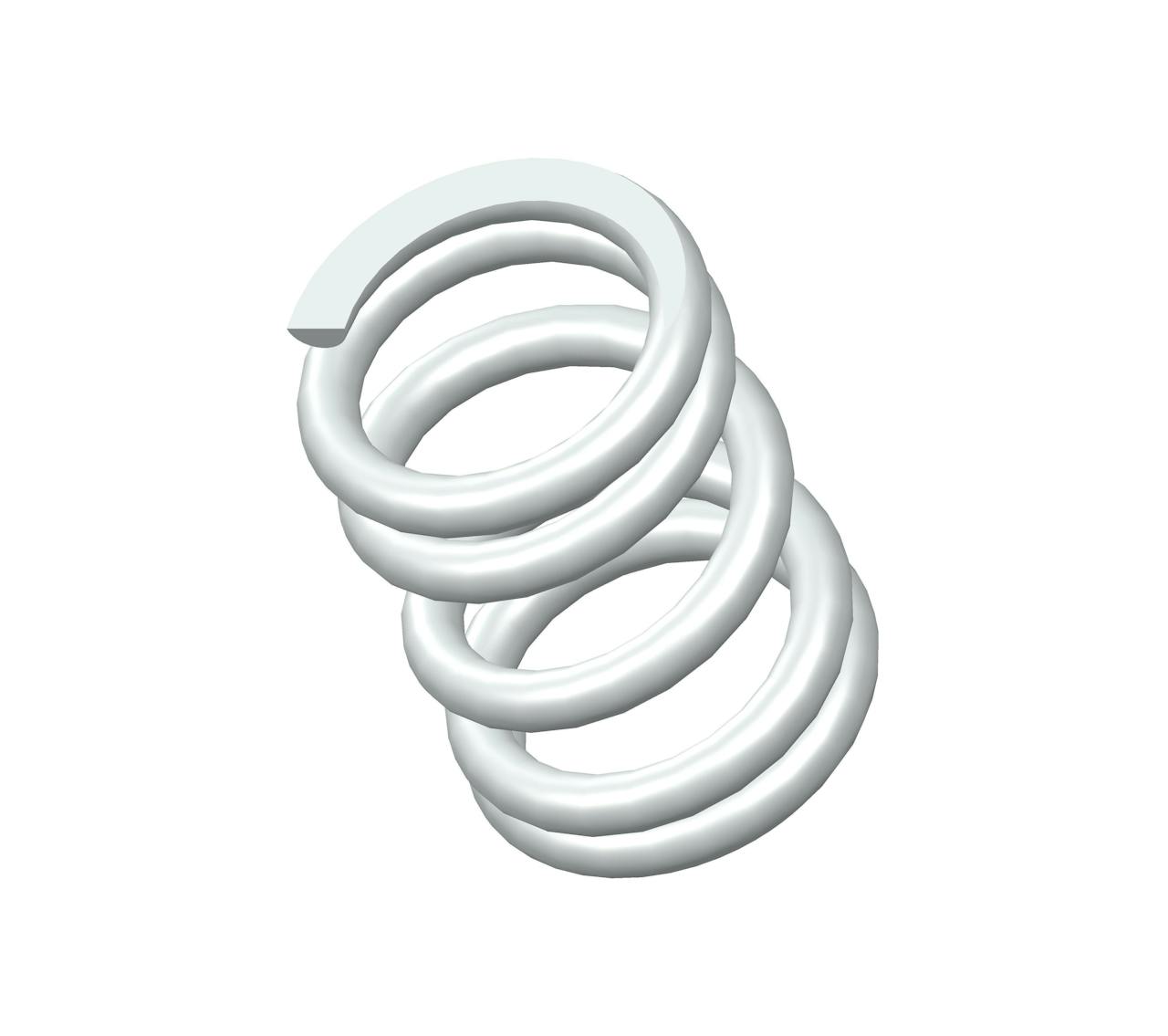

S-884CS - 1.03" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 4.8 coils and closed & ground ends. This spring features an O.D. of 0.75", and an I.D. of 0.538".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-884
Ends Closed & Ground
Finish None
Free Length 1.03 in
Inside Diameter 0.538 in
Material 302/304 Stainless Steel
Outside Diameter 0.75 in
Part Type Standard
Rate 201 lbs/in
SKU S-884CS
Solid Length 0.506 in
Suggested Max Deflection 0.224 in
Suggested Max Load 45 lbf
Total Coils 4.8
Wire Diameter 0.105 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-884
Ends Closed & Ground
Finish None
Free Length 26.16 mm
Inside Diameter 13.67 mm
Material 302/304 Stainless Steel
Outside Diameter 19.05 mm
Part Type Standard
Rate 35.2 N/mm
SKU S-884CS
Solid Length 12.85 mm
Suggested Max Deflection 5.69 mm
Suggested Max Load 200.16 N
Total Coils 4.8
Wire Diameter 2.67 mm
The S-884CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.105" diameter 302/304 stainless steel, the S-884 spring design exhibits reliable strength across its 4.8 active coils, withstanding repeated compression cycles with a maximum load of 45 lbf without succumbing to fatigue.

We manufacture the S-884 design to provide a compression spring that is 1.03" long at rest and provides a consistent rate of 201 lbs/in along its recommended maximum of 0.224" deflection. For best results, your application should fully accommodate the inner (0.538") and outer (0.75") diameters of this spring and be designed for its closed & ground end configuration.
