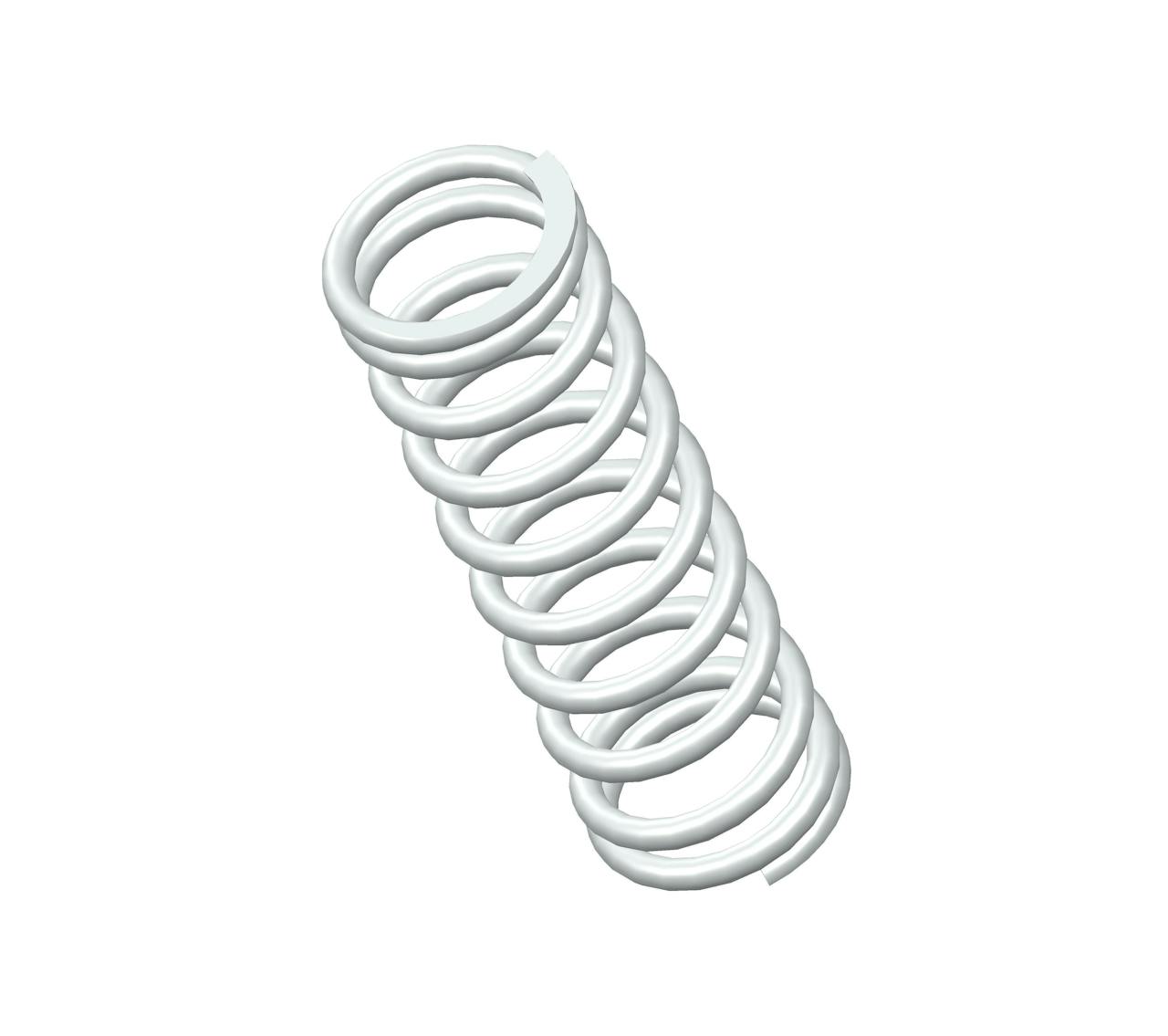

S-875CS - 1.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 10.3 coils and closed & ground ends. This spring features an O.D. of 0.453", and an I.D. of 0.343".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-875 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.5 in |
| Inside Diameter | 0.343 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.453 in |
| Part Type | Standard |
| Rate | 22 lbs/in |
| SKU | S-875CS |
| Solid Length | 0.57 in |
| Suggested Max Deflection | 0.56 in |
| Suggested Max Load | 12 lbf |
| Total Coils | 10.3 |
| Wire Diameter | 0.055 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-875 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 38.1 mm |
| Inside Diameter | 8.71 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 11.51 mm |
| Part Type | Standard |
| Rate | 3.85 N/mm |
| SKU | S-875CS |
| Solid Length | 14.48 mm |
| Suggested Max Deflection | 14.22 mm |
| Suggested Max Load | 53.38 N |
| Total Coils | 10.3 |
| Wire Diameter | 1.4 mm |
The S-875 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-875CS compression spring is designed with a free length of 0.78" total of 11 coils, and a rate of 49 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-875 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-875CS compression spring is designed with a free length of 0.78" total of 11 coils, and a rate of 49 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-875 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
