S-871CS - 2.53" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

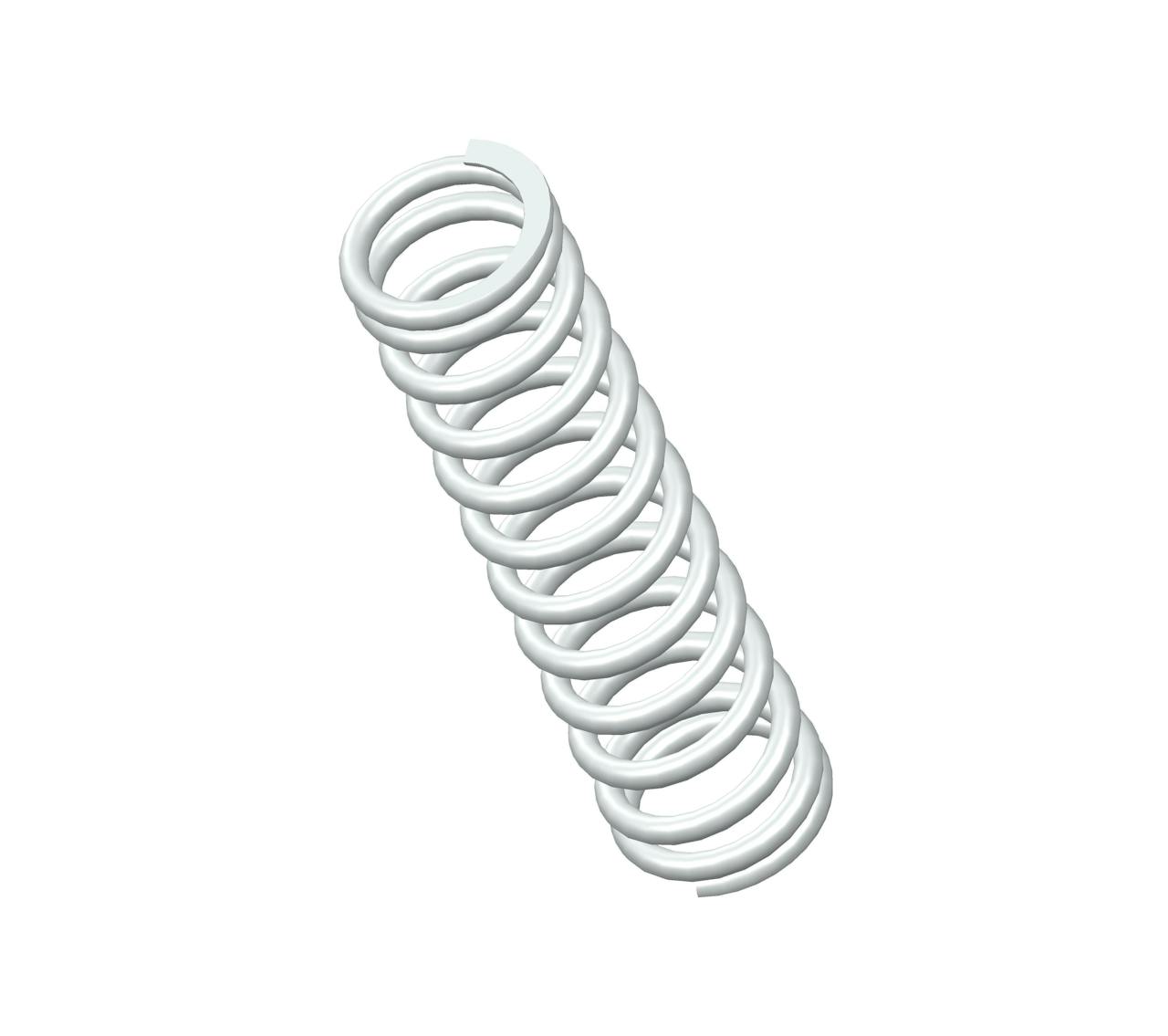

Compression spring manufactured from 302/304 stainless steel with 13 coils and closed & ground ends. This spring features an O.D. of 0.625", and an I.D. of 0.463".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-871 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.53 in |
| Inside Diameter | 0.463 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.625 in |
| Part Type | Standard |
| Rate | 32 lbs/in |
| SKU | S-871CS |
| Solid Length | 1.069 in |
| Suggested Max Deflection | 0.857 in |
| Suggested Max Load | 27 lbf |
| Total Coils | 13 |
| Wire Diameter | 0.082 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-871 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 64.26 mm |
| Inside Diameter | 11.76 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 15.88 mm |
| Part Type | Standard |
| Rate | 5.6 N/mm |
| SKU | S-871CS |
| Solid Length | 27.15 mm |
| Suggested Max Deflection | 21.77 mm |
| Suggested Max Load | 120.1 N |
| Total Coils | 13 |
| Wire Diameter | 2.08 mm |
The compression spring S-871CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-871 compression spring design exhibits exceptional tensile strength and resilience.
The S-871 design is manufactured with a free length of 2.53", with an outer diameter of 0.625", an inner diameter of 0.463", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 32 lbs/in.
The S-871CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-871 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-871 design is manufactured with a free length of 2.53", with an outer diameter of 0.625", an inner diameter of 0.463", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 32 lbs/in.
The S-871CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-871 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
