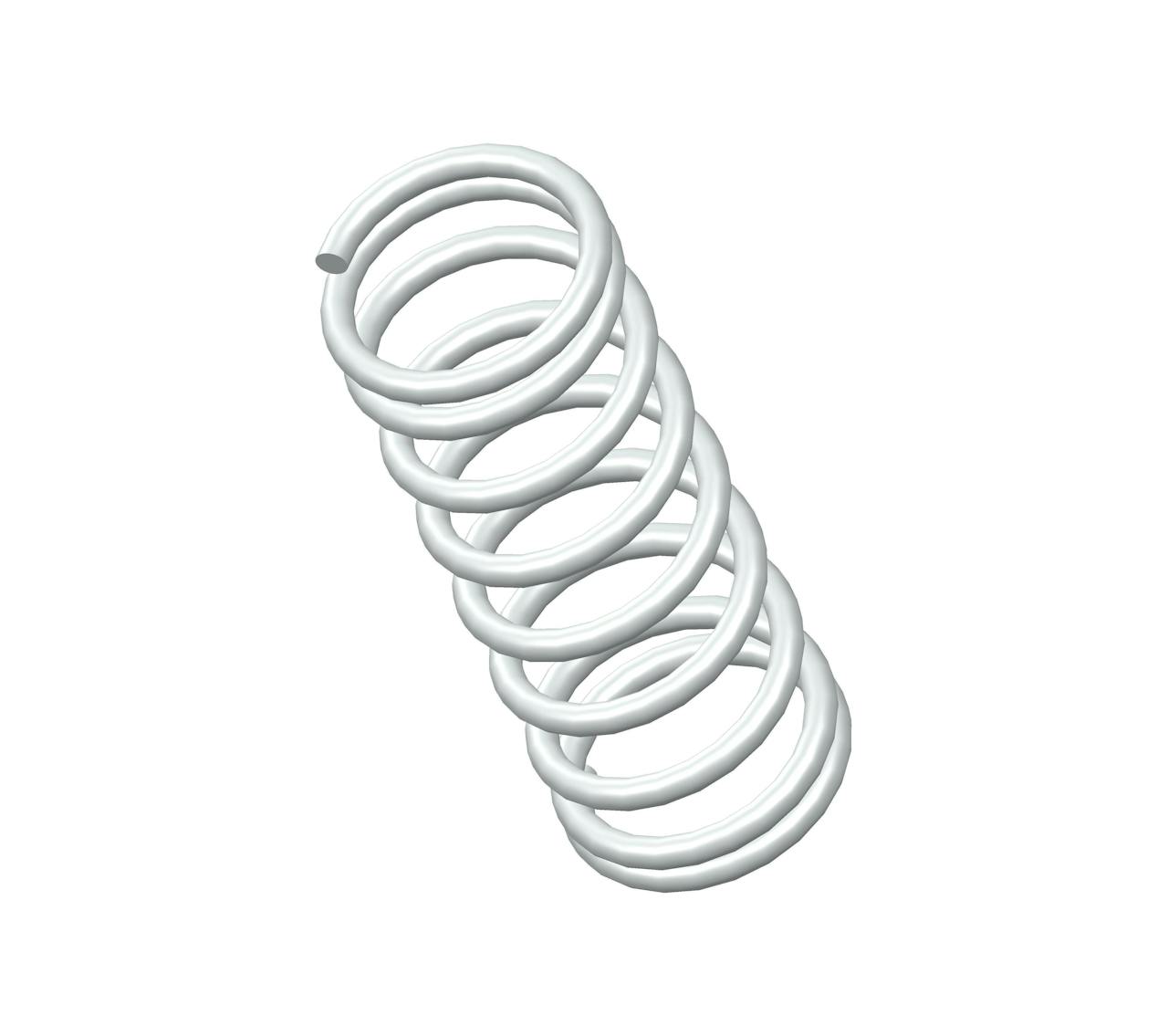

S-842CS - 0.81" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 9 coils and closed ends. This spring features an O.D. of 0.296", and an I.D. of 0.232".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-842 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.81 in |
| Inside Diameter | 0.232 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.296 in |
| Part Type | Standard |
| Rate | 10 lbs/in |
| SKU | S-842CS |
| Solid Length | 0.32 in |
| Suggested Max Deflection | 0.41 in |
| Suggested Max Load | 4.1 lbf |
| Total Coils | 9 |
| Wire Diameter | 0.032 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-842 |
| Ends | Closed |
| Finish | None |
| Free Length | 20.57 mm |
| Inside Diameter | 5.89 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.52 mm |
| Part Type | Standard |
| Rate | 1.75 N/mm |
| SKU | S-842CS |
| Solid Length | 8.13 mm |
| Suggested Max Deflection | 10.41 mm |
| Suggested Max Load | 18.24 N |
| Total Coils | 9 |
| Wire Diameter | 0.81 mm |
The S-842 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-842CS compression spring is designed with a free length of 1.56" total of 11 coils, and a rate of 7.3 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-842 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-842CS compression spring is designed with a free length of 1.56" total of 11 coils, and a rate of 7.3 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-842 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
