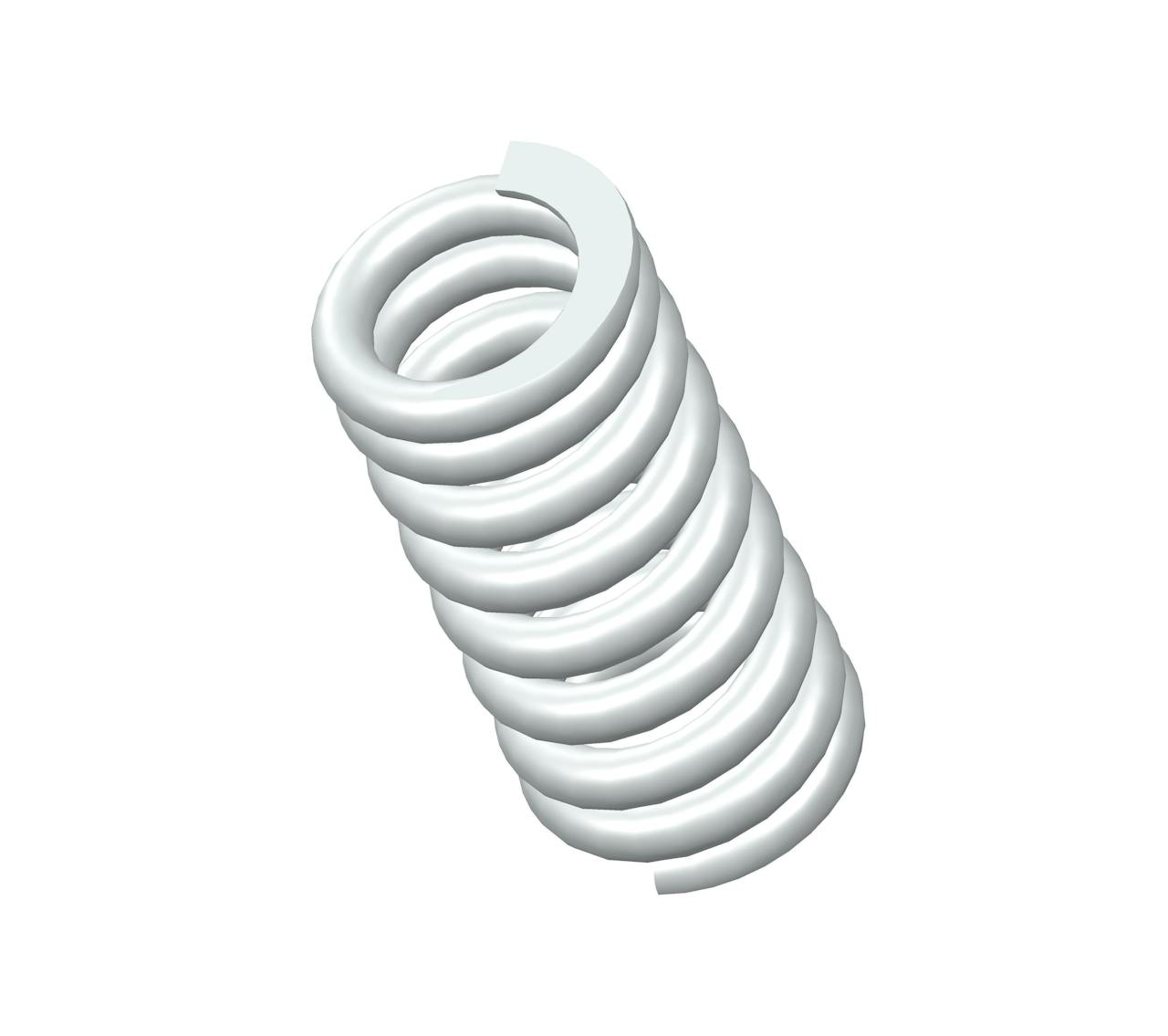

S-833CS - 0.91" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 8.5 coils and closed & ground ends. This spring features an O.D. of 0.42", and an I.D. of 0.272".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-833 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.91 in |
| Inside Diameter | 0.272 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.42 in |
| Part Type | Standard |
| Rate | 138 lbs/in |
| SKU | S-833CS |
| Solid Length | 0.63 in |
| Suggested Max Deflection | 0.21 in |
| Suggested Max Load | 29 lbf |
| Total Coils | 8.5 |
| Wire Diameter | 0.074 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-833 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 23.11 mm |
| Inside Diameter | 6.91 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 10.67 mm |
| Part Type | Standard |
| Rate | 24.16 N/mm |
| SKU | S-833CS |
| Solid Length | 16 mm |
| Suggested Max Deflection | 5.33 mm |
| Suggested Max Load | 128.99 N |
| Total Coils | 8.5 |
| Wire Diameter | 1.88 mm |
The compression spring S-833CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-833 compression spring design exhibits exceptional tensile strength and resilience.
The S-833 design is manufactured with a free length of 0.91", with an outer diameter of 0.42", an inner diameter of 0.272", and a total of 8.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 138 lbs/in.
The S-833CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-833 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-833 design is manufactured with a free length of 0.91", with an outer diameter of 0.42", an inner diameter of 0.272", and a total of 8.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 138 lbs/in.
The S-833CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-833 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
