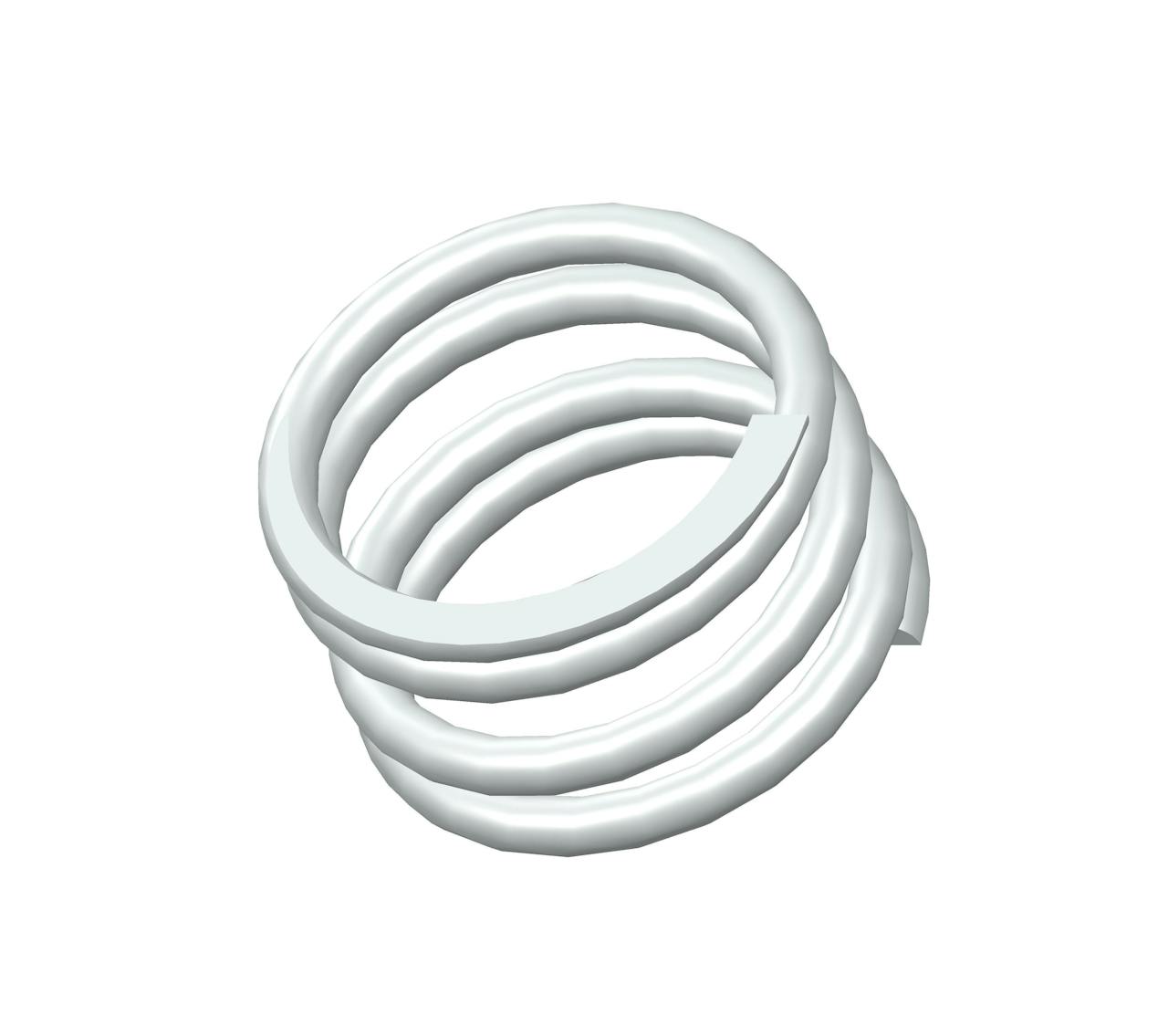

S-830CS - 0.34" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 4 coils and closed & ground ends. This spring features an O.D. of 0.546", and an I.D. of 0.436".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-830 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.34 in |
| Inside Diameter | 0.436 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.546 in |
| Part Type | Standard |
| Rate | 49 lbs/in |
| SKU | S-830CS |
| Solid Length | 0.22 in |
| Suggested Max Deflection | 0.12 in |
| Suggested Max Load | 6.1 lbf |
| Total Coils | 4 |
| Wire Diameter | 0.055 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-830 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 8.64 mm |
| Inside Diameter | 11.07 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 13.87 mm |
| Part Type | Standard |
| Rate | 8.58 N/mm |
| SKU | S-830CS |
| Solid Length | 5.59 mm |
| Suggested Max Deflection | 3.05 mm |
| Suggested Max Load | 27.13 N |
| Total Coils | 4 |
| Wire Diameter | 1.4 mm |
The compression spring S-830CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-830 compression spring design exhibits exceptional tensile strength and resilience.
The S-830 design is manufactured with a free length of 0.34", with an outer diameter of 0.546", an inner diameter of 0.436", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 49 lbs/in.
The S-830CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-830 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-830 design is manufactured with a free length of 0.34", with an outer diameter of 0.546", an inner diameter of 0.436", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 49 lbs/in.
The S-830CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-830 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
