S-828CS - 0.75" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

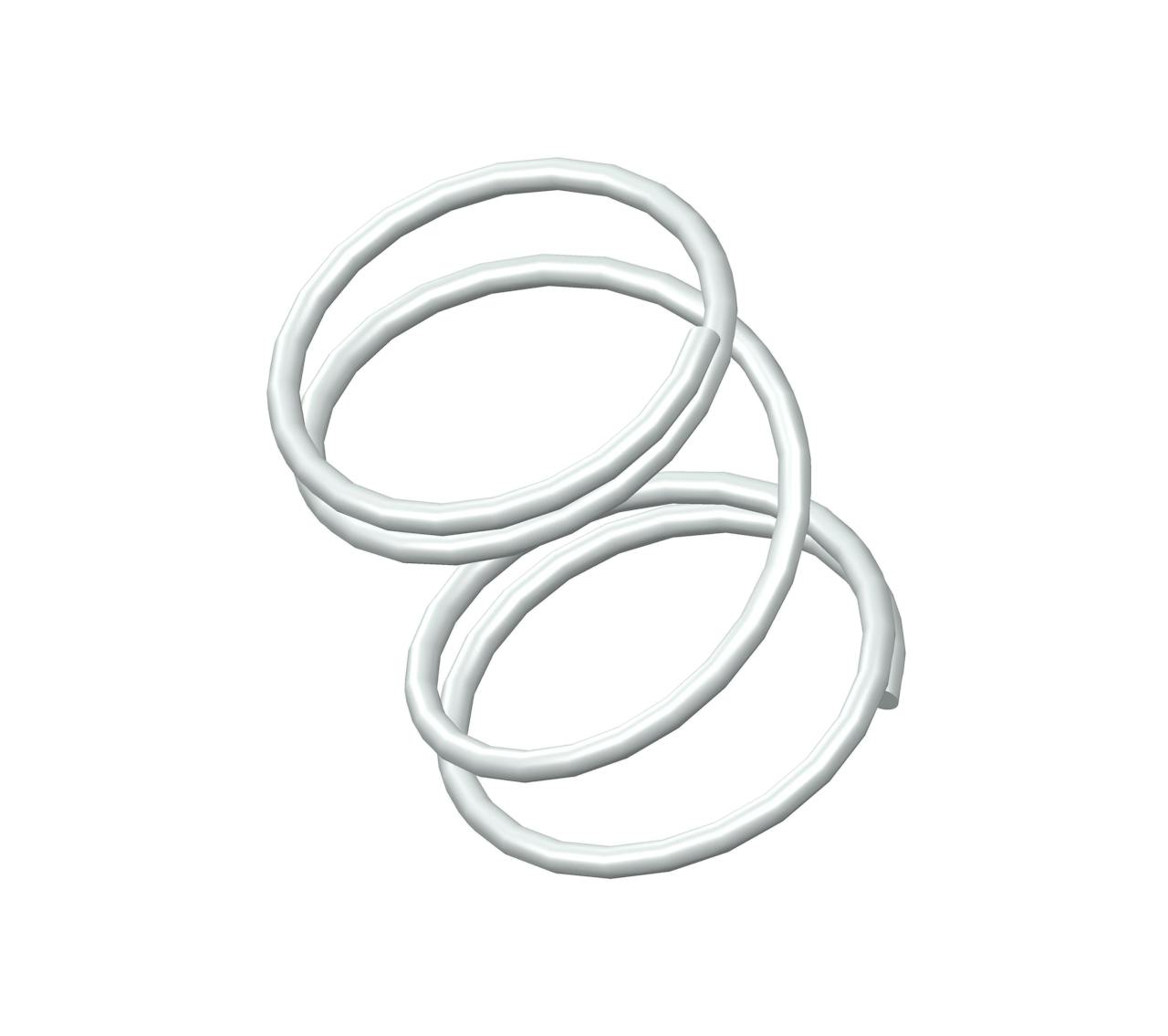

Compression spring manufactured from 302/304 stainless steel with 4 coils and closed ends. This spring features an O.D. of 0.593", and an I.D. of 0.513".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-828
Ends Closed
Finish None
Free Length 0.75 in
Inside Diameter 0.513 in
Material 302/304 Stainless Steel
Outside Diameter 0.593 in
Part Type Standard
Rate 8.9 lbs/in
SKU S-828CS
Solid Length 0.21 in
Suggested Max Deflection 0.44 in
Suggested Max Load 4 lbf
Total Coils 4
Wire Diameter 0.04 in
The compression spring S-828CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-828 compression spring design exhibits exceptional tensile strength and resilience.

The S-828 design is manufactured with a free length of 0.75", with an outer diameter of 0.593", an inner diameter of 0.513", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.9 lbs/in.

The S-828CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring S-828 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
