S-814CS - 0.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

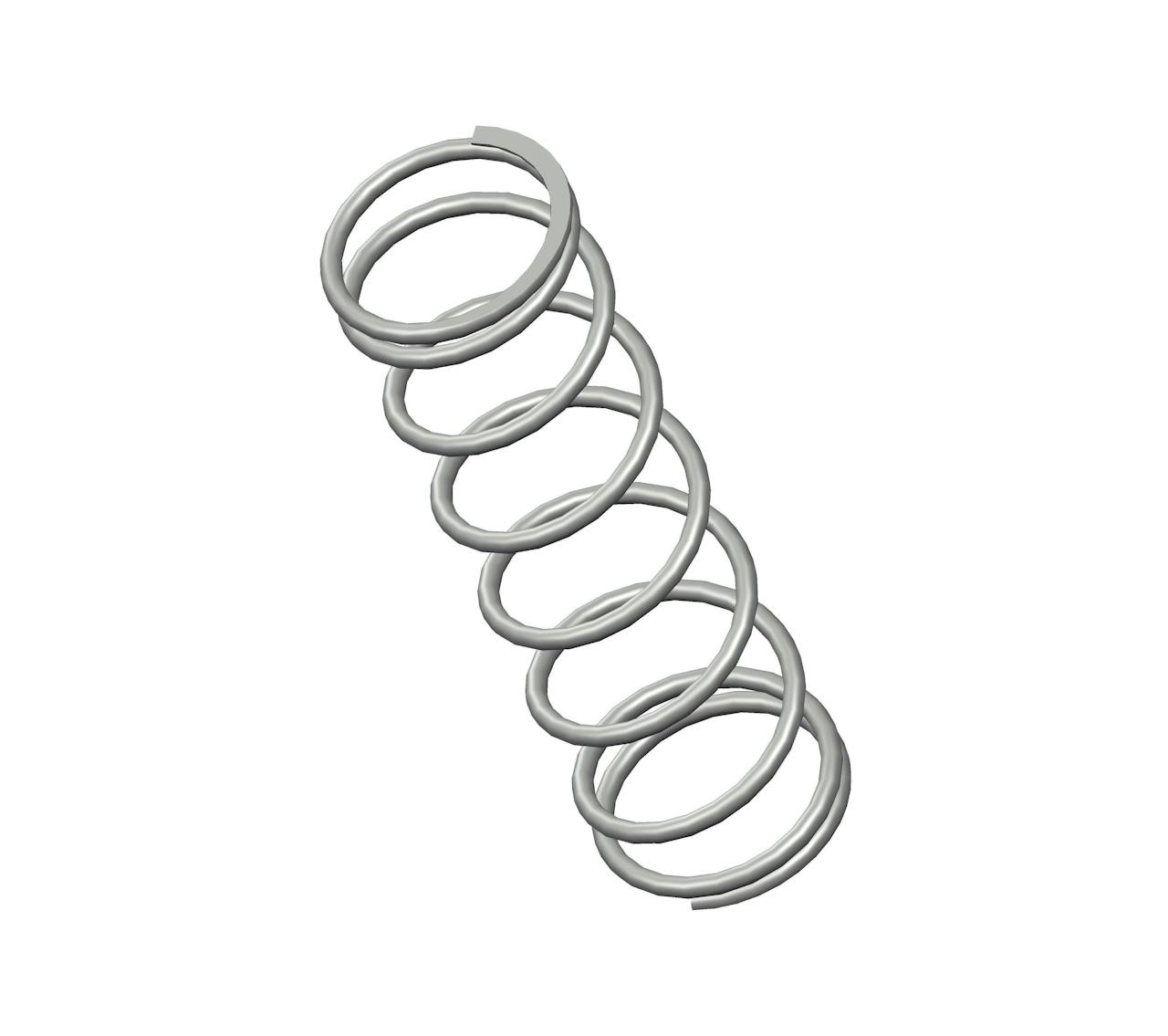

Compression spring manufactured from 302/304 stainless steel with 12.8 coils and closed ends. This spring features an O.D. of 0.109", and an I.D. of 0.063".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-814 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.5 in |
| Inside Diameter | 0.063 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.109 in |
| Part Type | Standard |
| Rate | 51 lbs/in |
| SKU | S-814CS |
| Solid Length | 0.32 in |
| Suggested Max Deflection | 0.08 in |
| Suggested Max Load | 4.1 lbf |
| Total Coils | 12.8 |
| Wire Diameter | 0.023 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-814 |
| Ends | Closed |
| Finish | None |
| Free Length | 12.7 mm |
| Inside Diameter | 1.6 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 2.77 mm |
| Part Type | Standard |
| Rate | 8.93 N/mm |
| SKU | S-814CS |
| Solid Length | 8.13 mm |
| Suggested Max Deflection | 2.03 mm |
| Suggested Max Load | 18.24 N |
| Total Coils | 12.8 |
| Wire Diameter | 0.58 mm |
The compression spring S-814CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-814 compression spring design exhibits exceptional tensile strength and resilience.
The S-814 design is manufactured with a free length of 0.5", with an outer diameter of 0.109", an inner diameter of 0.063", and a total of 12.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 51 lbs/in.
The S-814CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-814 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-814 design is manufactured with a free length of 0.5", with an outer diameter of 0.109", an inner diameter of 0.063", and a total of 12.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 51 lbs/in.
The S-814CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-814 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
