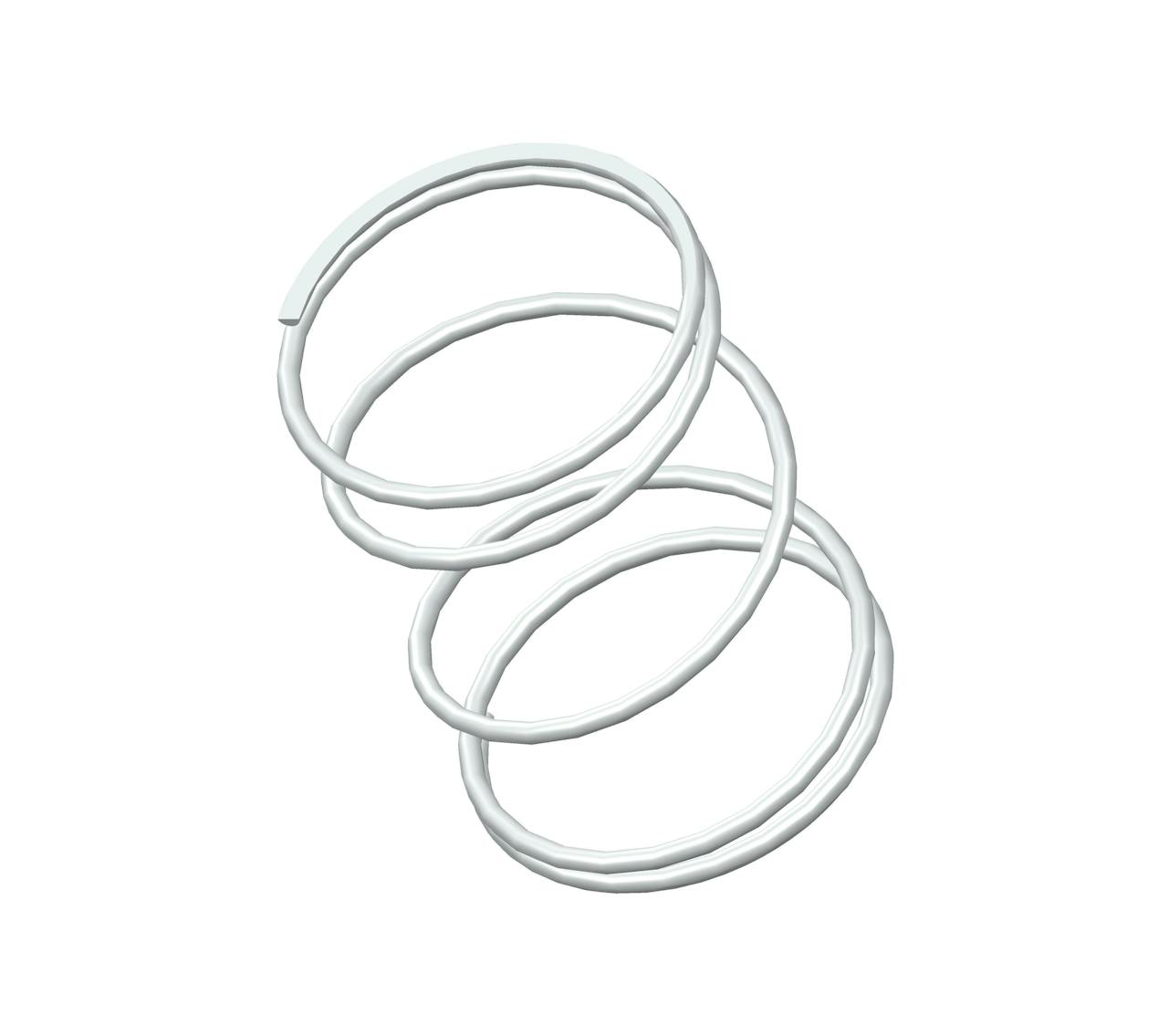

S-800CS - 0.97" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 5 coils and closed & ground ends. This spring features an O.D. of 0.687", and an I.D. of 0.617".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-800 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.97 in |
| Inside Diameter | 0.617 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.687 in |
| Part Type | Standard |
| Rate | 2.3 lbs/in |
| SKU | S-800CS |
| Solid Length | 0.18 in |
| Suggested Max Deflection | 0.79 in |
| Suggested Max Load | 1.8 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.035 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-800 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 24.64 mm |
| Inside Diameter | 15.67 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 17.45 mm |
| Part Type | Standard |
| Rate | 0.4 N/mm |
| SKU | S-800CS |
| Solid Length | 4.57 mm |
| Suggested Max Deflection | 20.07 mm |
| Suggested Max Load | 8.01 N |
| Total Coils | 5 |
| Wire Diameter | 0.89 mm |
The S-800 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-800CS compression spring is designed with a free length of 0.75" total of 8 coils, and a rate of 0.75 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-800 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-800CS compression spring is designed with a free length of 0.75" total of 8 coils, and a rate of 0.75 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-800 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
