Century Spring

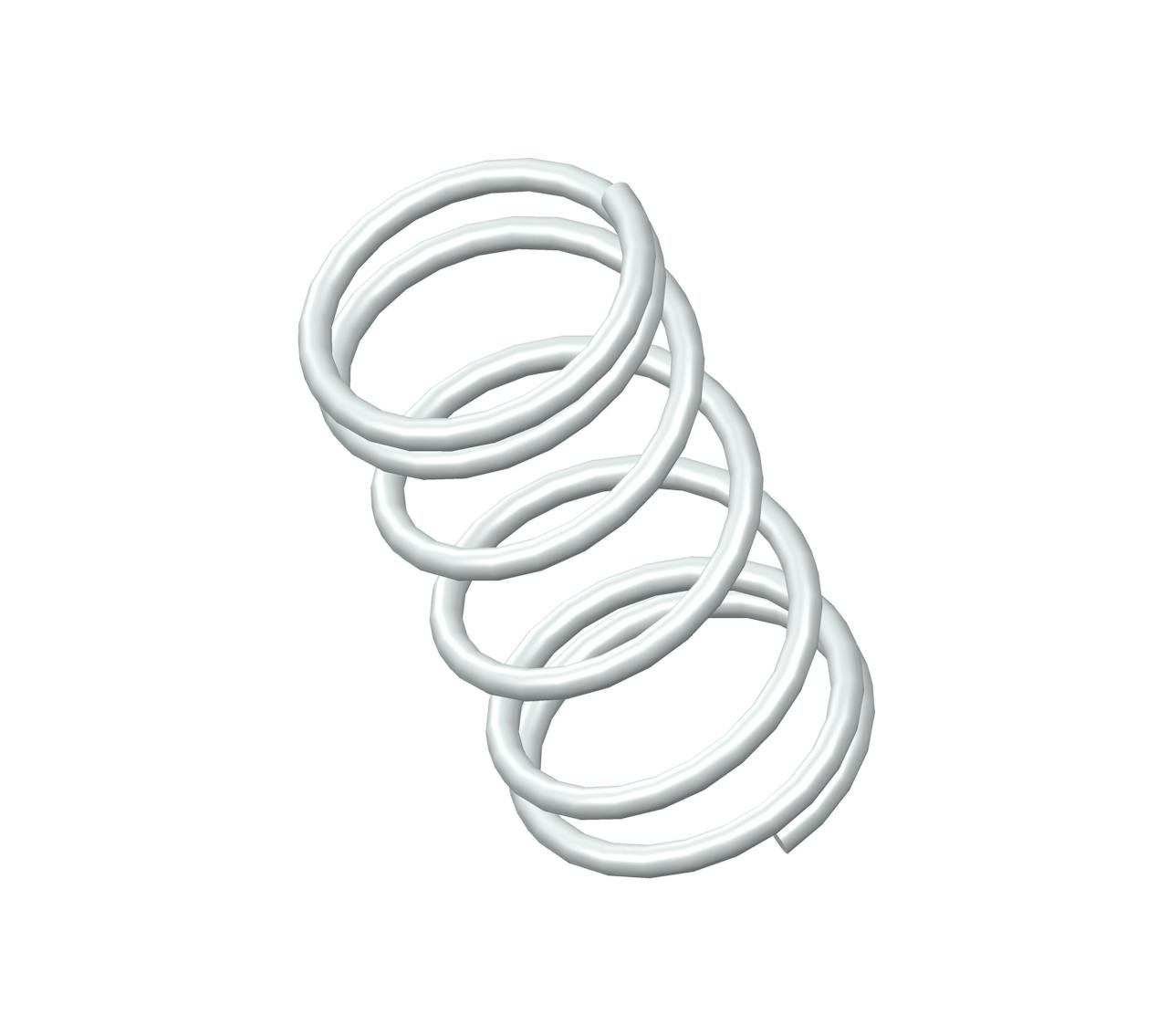

S-768CS - 1.25" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 6.25 coils and closed ends. This spring features an O.D. of 0.625", and an I.D. of 0.515".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-768
Ends Closed
Finish None
Free Length 1.25 in
Inside Diameter 0.515 in
Material 302/304 Stainless Steel
Outside Diameter 0.625 in
Part Type Standard
Rate 15 lbs/in
SKU S-768CS
Solid Length 0.4 in
Suggested Max Deflection 0.62 in
Suggested Max Load 9 lbf
Total Coils 6.25
Wire Diameter 0.055 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-768
Ends Closed
Finish None
Free Length 31.75 mm
Inside Diameter 13.08 mm
Material 302/304 Stainless Steel
Outside Diameter 15.88 mm
Part Type Standard
Rate 2.63 N/mm
SKU S-768CS
Solid Length 10.16 mm
Suggested Max Deflection 15.75 mm
Suggested Max Load 40.03 N
Total Coils 6.25
Wire Diameter 1.4 mm
The compression spring S-768CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-768 compression spring design exhibits exceptional tensile strength and resilience.

The S-768 design is manufactured with a free length of 1.25", with an outer diameter of 0.625", an inner diameter of 0.515", and a total of 6.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 15 lbs/in.

The S-768CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring S-768 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
