S-762CS - 1" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

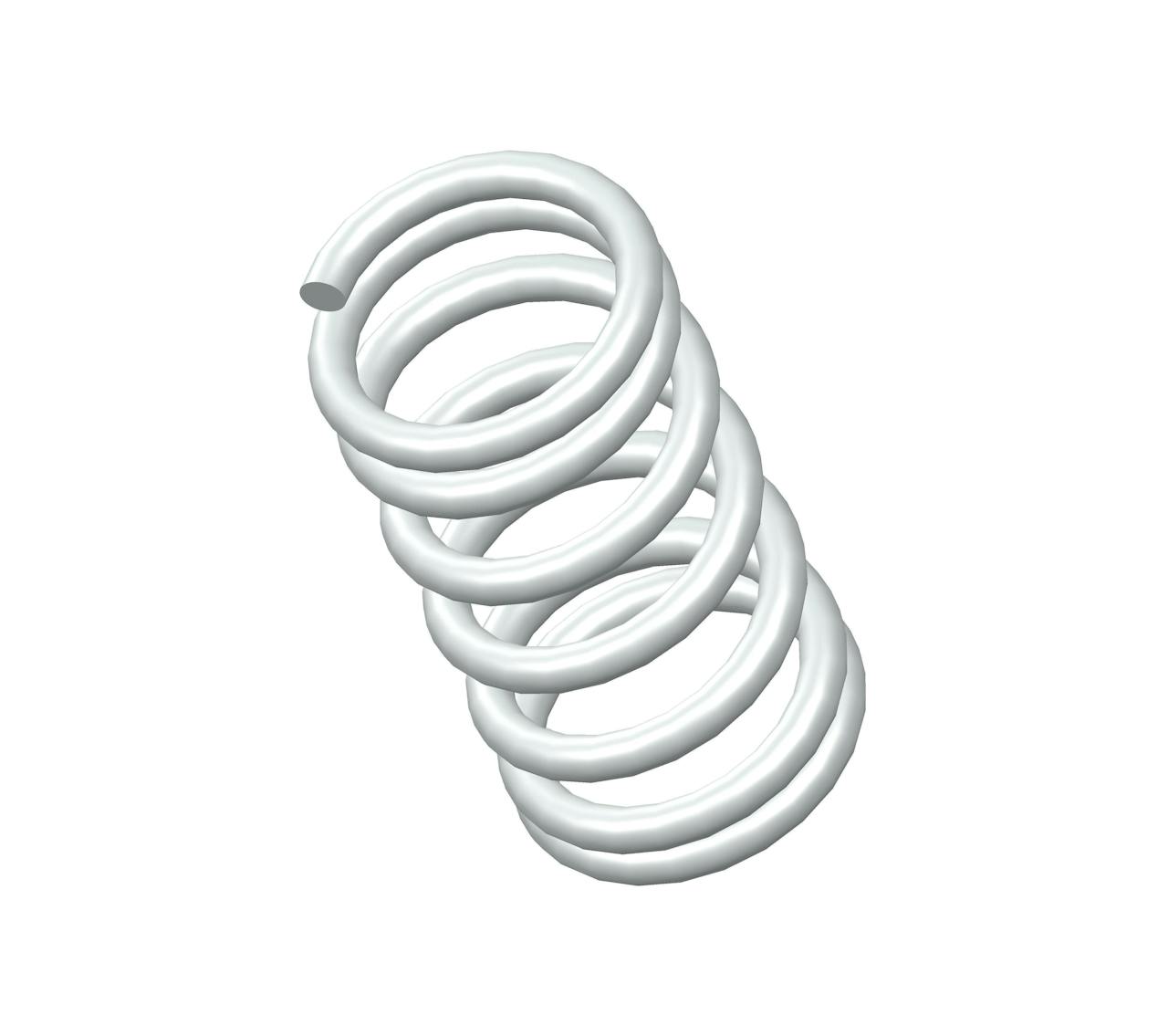

Compression spring manufactured from 302/304 stainless steel with 6.8 coils and closed ends. This spring features an O.D. of 0.5", and an I.D. of 0.374".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-762
Ends Closed
Finish None
Free Length 1 in
Inside Diameter 0.374 in
Material 302/304 Stainless Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 47 lbs/in
SKU S-762CS
Solid Length 0.49 in
Suggested Max Deflection 0.343 in
Suggested Max Load 16.1 lbf
Total Coils 6.8
Wire Diameter 0.0625 in
The compression spring S-762CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-762 compression spring design exhibits exceptional tensile strength and resilience.

The S-762 design is manufactured with a free length of 1", with an outer diameter of 0.5", an inner diameter of 0.374", and a total of 6.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 47 lbs/in.

The S-762CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring S-762 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
