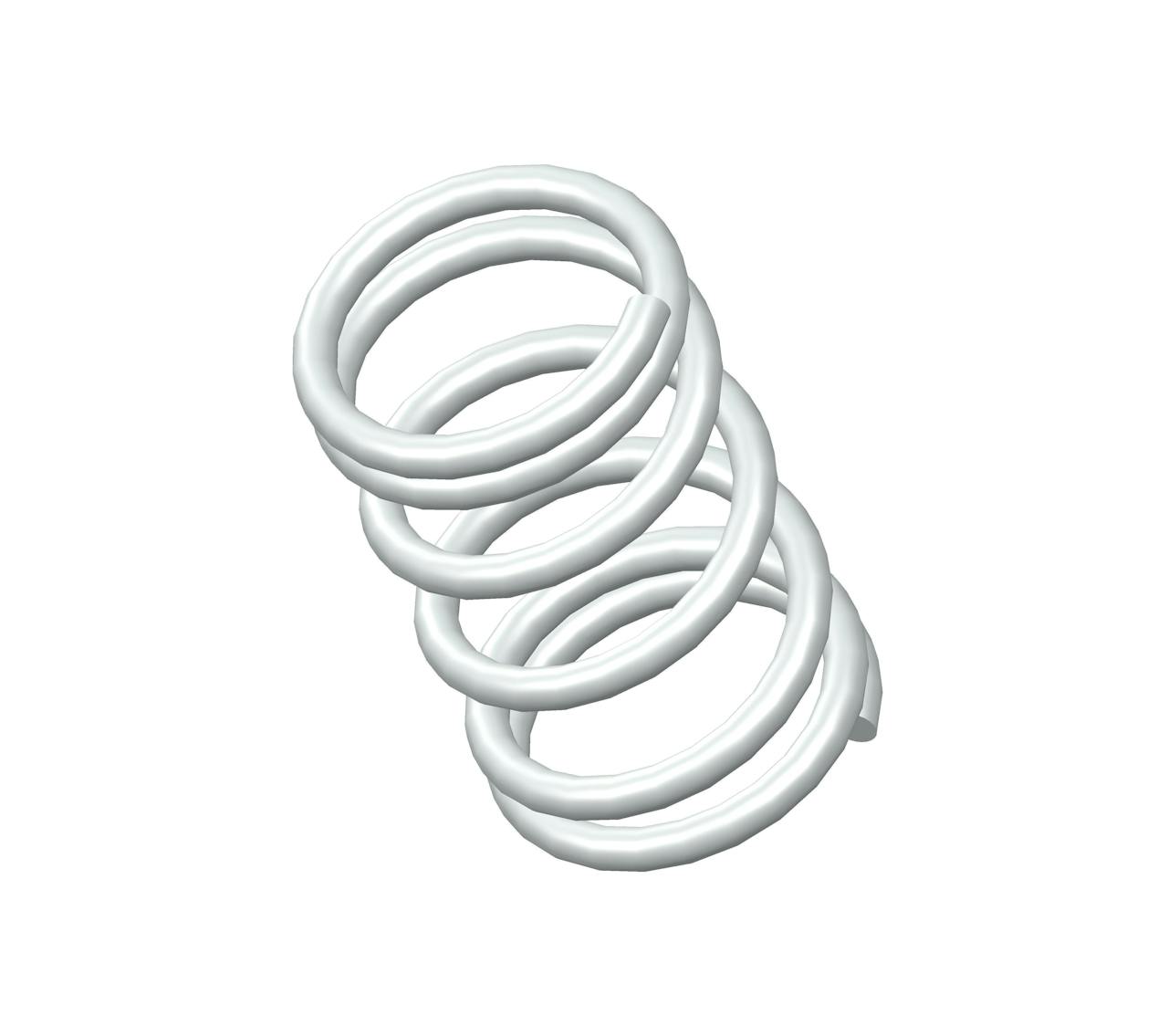

S-757CS - 0.88" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 6 coils and closed ends. This spring features an O.D. of 0.5", and an I.D. of 0.39".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-757 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.88 in |
| Inside Diameter | 0.39 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.5 in |
| Part Type | Standard |
| Rate | 32 lbs/in |
| SKU | S-757CS |
| Solid Length | 0.39 in |
| Suggested Max Deflection | 0.34 in |
| Suggested Max Load | 11 lbf |
| Total Coils | 6 |
| Wire Diameter | 0.055 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-757 |
| Ends | Closed |
| Finish | None |
| Free Length | 22.35 mm |
| Inside Diameter | 9.91 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 12.7 mm |
| Part Type | Standard |
| Rate | 5.6 N/mm |
| SKU | S-757CS |
| Solid Length | 9.91 mm |
| Suggested Max Deflection | 8.64 mm |
| Suggested Max Load | 48.93 N |
| Total Coils | 6 |
| Wire Diameter | 1.4 mm |
The compression spring S-757CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-757 compression spring design exhibits exceptional tensile strength and resilience.
The S-757 design is manufactured with a free length of 0.88", with an outer diameter of 0.5", an inner diameter of 0.39", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 32 lbs/in.
The S-757CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-757 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
