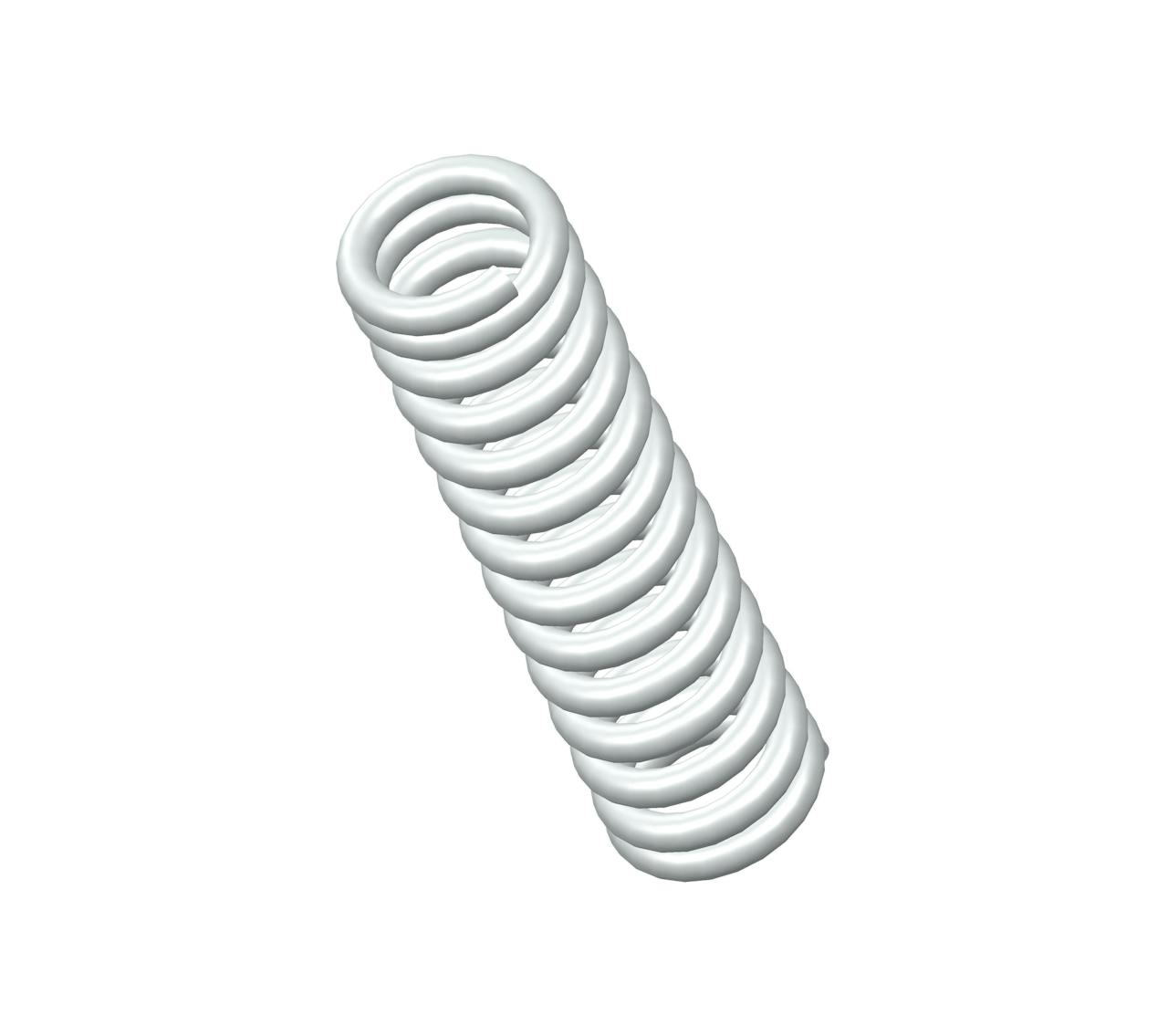

S-724CS - 1" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 13.8 coils and closed ends. This spring features an O.D. of 0.25", and an I.D. of 0.166".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-724 |
| Ends | Closed |
| Finish | None |
| Free Length | 1 in |
| Inside Diameter | 0.166 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.25 in |
| Part Type | Standard |
| Rate | 37 lbs/in |
| SKU | S-724CS |
| Solid Length | 0.62 in |
| Suggested Max Deflection | 0.28 in |
| Suggested Max Load | 10 lbf |
| Total Coils | 13.8 |
| Wire Diameter | 0.042 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-724 |
| Ends | Closed |
| Finish | None |
| Free Length | 25.4 mm |
| Inside Diameter | 4.22 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 6.35 mm |
| Part Type | Standard |
| Rate | 6.48 N/mm |
| SKU | S-724CS |
| Solid Length | 15.75 mm |
| Suggested Max Deflection | 7.11 mm |
| Suggested Max Load | 44.48 N |
| Total Coils | 13.8 |
| Wire Diameter | 1.07 mm |
The compression spring S-724CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-724 compression spring design exhibits exceptional tensile strength and resilience.
The S-724 design is manufactured with a free length of 1", with an outer diameter of 0.25", an inner diameter of 0.166", and a total of 13.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 37 lbs/in.
The S-724CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-724 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-724 design is manufactured with a free length of 1", with an outer diameter of 0.25", an inner diameter of 0.166", and a total of 13.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 37 lbs/in.
The S-724CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-724 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
