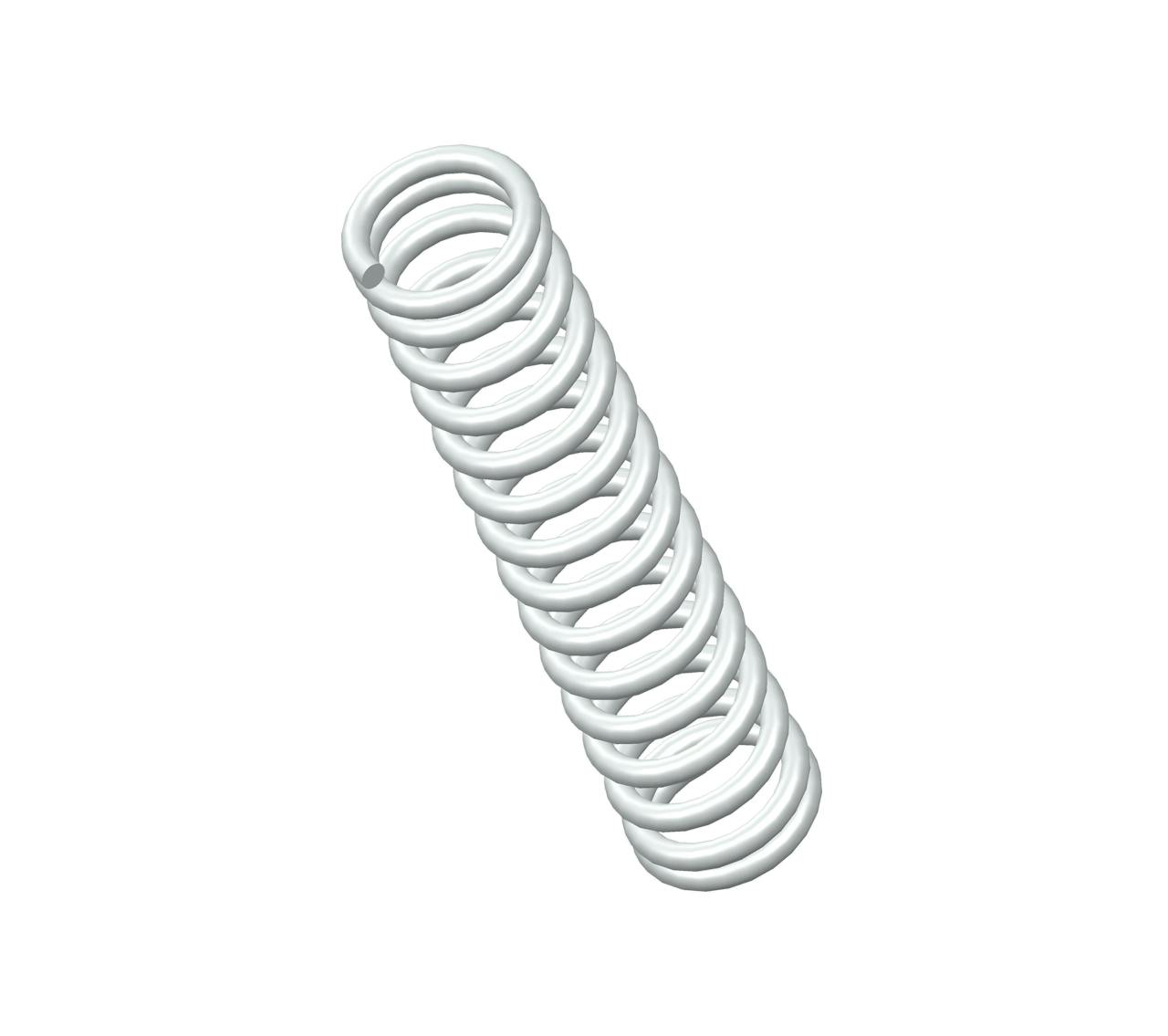

S-705CS - 0.75" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 15.3 coils and closed ends. This spring features an O.D. of 0.156", and an I.D. of 0.112".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-705
Ends Closed
Finish None
Free Length 0.75 in
Inside Diameter 0.112 in
Material 302/304 Stainless Steel
Outside Diameter 0.156 in
Part Type Standard
Rate 9.2 lbs/in
SKU S-705CS
Solid Length 0.36 in
Suggested Max Deflection 0.29 in
Suggested Max Load 2.6 lbf
Total Coils 15.3
Wire Diameter 0.022 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-705
Ends Closed
Finish None
Free Length 19.05 mm
Inside Diameter 2.84 mm
Material 302/304 Stainless Steel
Outside Diameter 3.96 mm
Part Type Standard
Rate 1.61 N/mm
SKU S-705CS
Solid Length 9.14 mm
Suggested Max Deflection 7.37 mm
Suggested Max Load 11.56 N
Total Coils 15.3
Wire Diameter 0.56 mm
The compression spring S-705CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-705 compression spring design exhibits exceptional tensile strength and resilience.

The S-705 design is manufactured with a free length of 0.75", with an outer diameter of 0.156", an inner diameter of 0.112", and a total of 15.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 9.2 lbs/in.

The S-705CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring S-705 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
