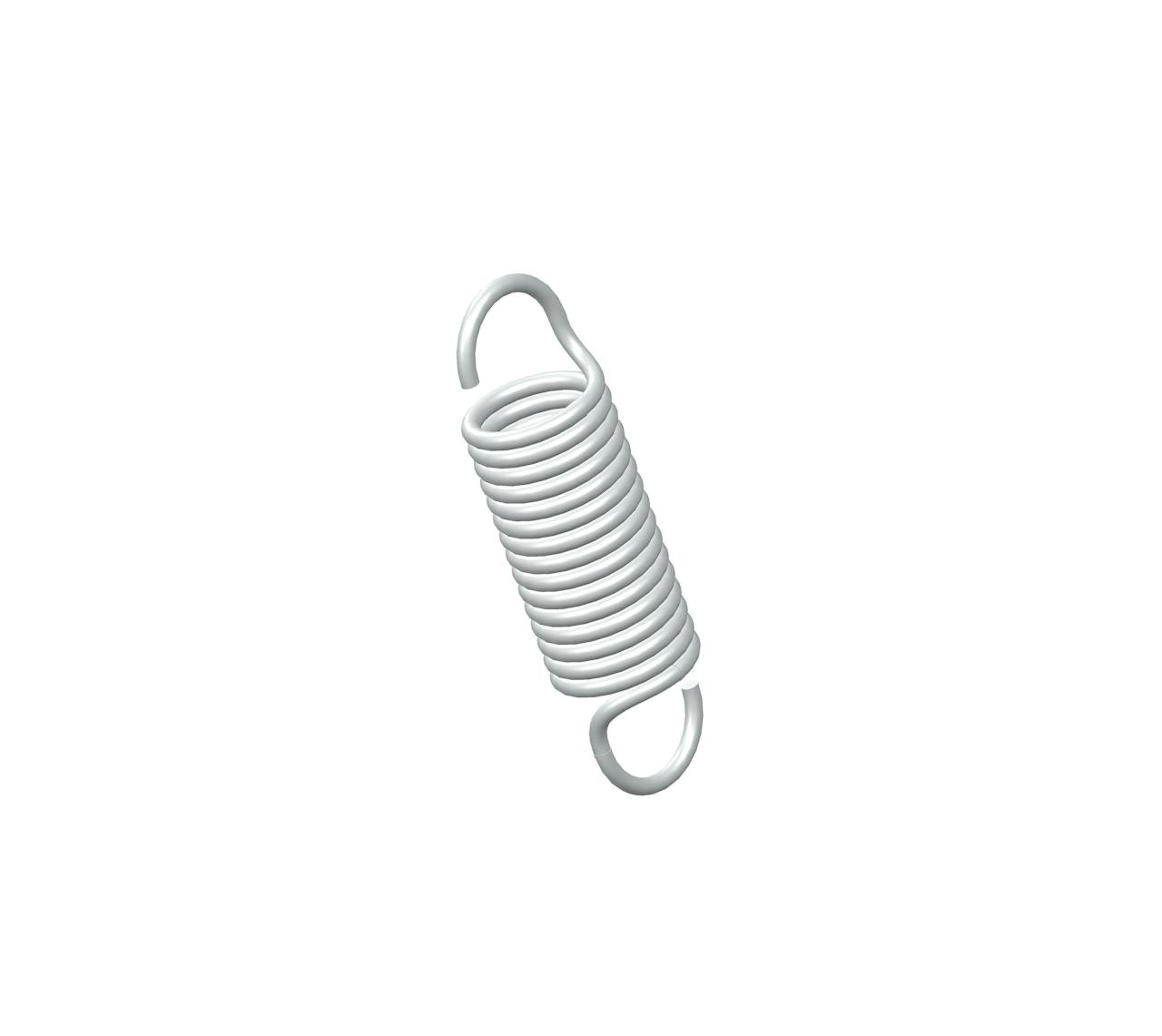

S-610CS - 1.95 Inch 302/304 Stainless Steel Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 3.5 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-610 |
| Ends | Machine Hook |
| Finish | None |
| Initial Tension | 3.5 lb |
| Length | 1.95 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.5 in |
| Part Type | Standard |
| Rate | 12 lbs/in |
| SKU | S-610CS |
| Sugg Max Deflection | 1.1 in |
| Sugg Max Load | 16 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.0625 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-610 |
| Ends | Machine Hook |
| Finish | None |
| Initial Tension | 1.59 kg |
| Length | 49.53 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 12.7 mm |
| Part Type | Standard |
| Rate | 2.1 N/mm |
| SKU | S-610CS |
| Sugg Max Deflection | 27.94 mm |
| Sugg Max Load | 71.17 N |
| Wind Direction | Left |
| Wire Diameter | 1.59 mm |
