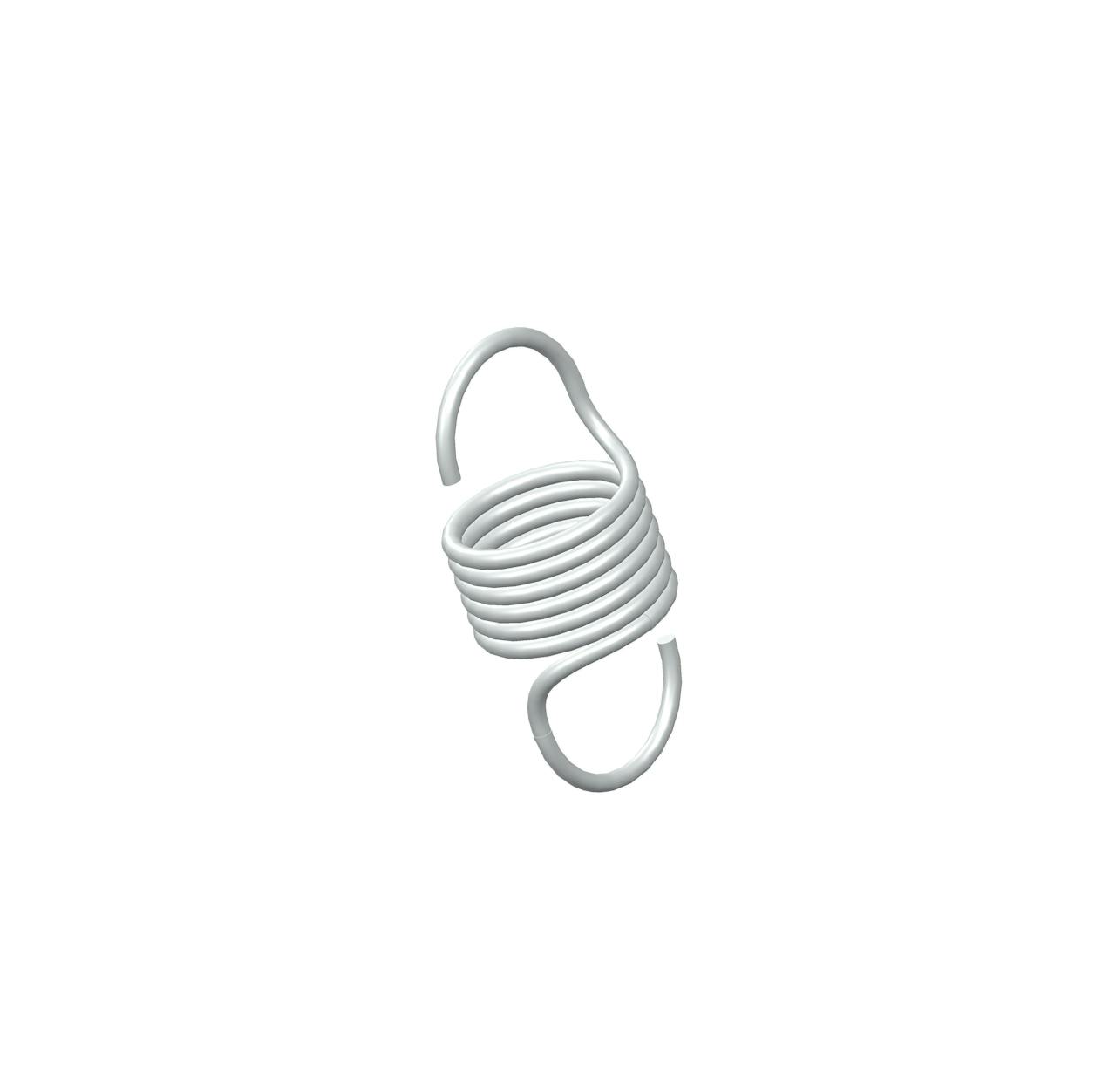

S-609CS - 2.5 Inch 302/304 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 1 Inch and an initial tension of 4 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-609
Ends Machine Hook
Finish None
Initial Tension 4 lb
Length 2.5 in
Material 302/304 Stainless Steel
Outside Diameter 1 in
Part Type Standard
Rate 12 lbs/in
SKU S-609CS
Sugg Max Deflection 1.7 in
Sugg Max Load 24 lbf
Wire Diameter 0.095 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-609
Ends Machine Hook
Finish None
Initial Tension 1.81 kg
Length 63.5 mm
Material 302/304 Stainless Steel
Outside Diameter 25.4 mm
Part Type Standard
Rate 2.1 N/mm
SKU S-609CS
Sugg Max Deflection 43.18 mm
Sugg Max Load 106.75 N
Wire Diameter 2.41 mm
