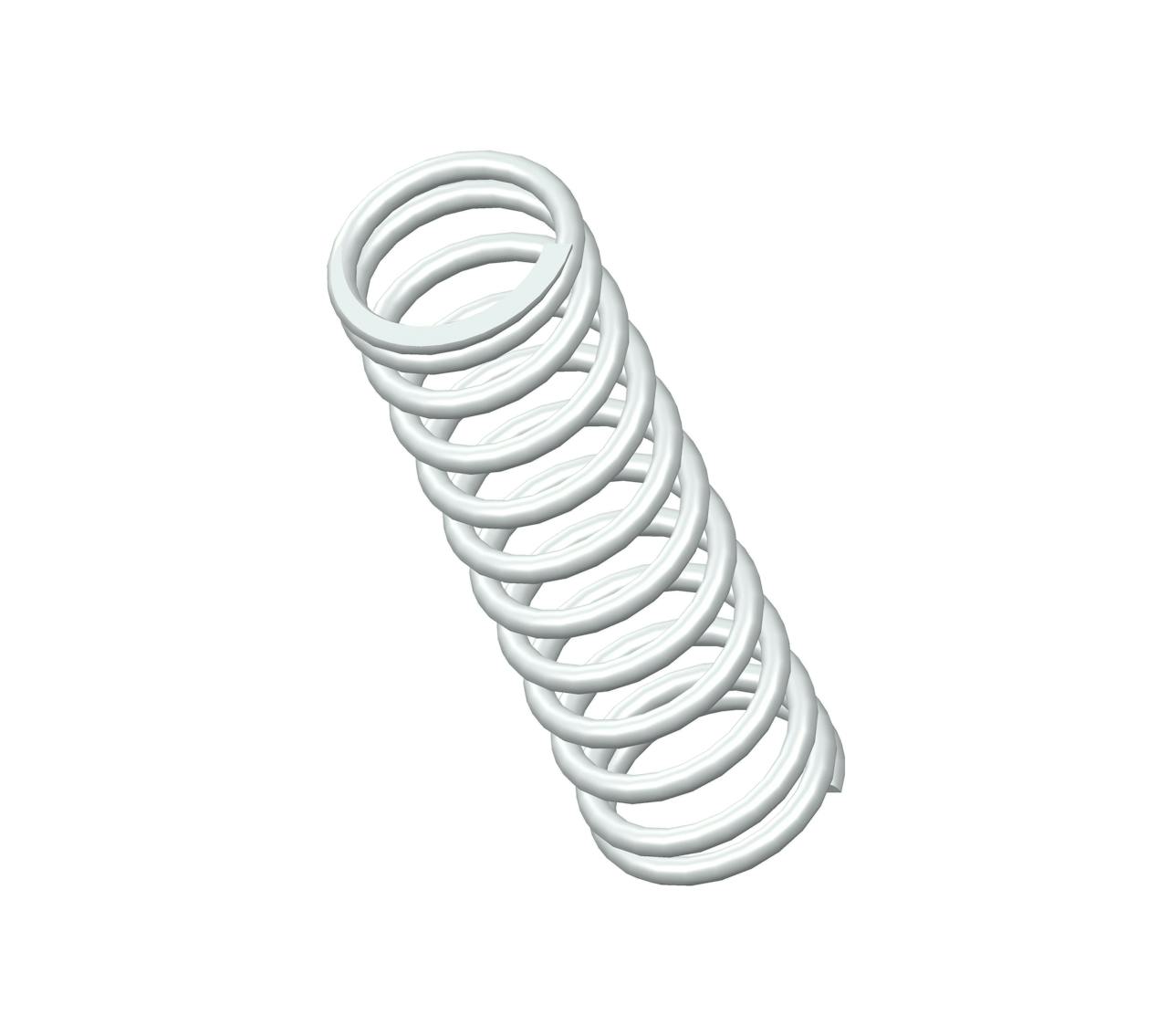

S-59CS - 2.28" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 12 coils and closed & ground ends. This spring features an O.D. of 0.687", and an I.D. of 0.535".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-59 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.28 in |
| Inside Diameter | 0.535 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.687 in |
| Part Type | Standard |
| Rate | 19 lbs/in |
| SKU | S-59CS |
| Solid Length | 0.91 in |
| Suggested Max Deflection | 1.1 in |
| Suggested Max Load | 20 lbf |
| Total Coils | 12 |
| Wire Diameter | 0.076 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-59 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 57.91 mm |
| Inside Diameter | 13.59 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 17.45 mm |
| Part Type | Standard |
| Rate | 3.33 N/mm |
| SKU | S-59CS |
| Solid Length | 23.11 mm |
| Suggested Max Deflection | 27.94 mm |
| Suggested Max Load | 88.96 N |
| Total Coils | 12 |
| Wire Diameter | 1.93 mm |
The compression spring S-59CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-59 compression spring design exhibits exceptional tensile strength and resilience.
The S-59 design is manufactured with a free length of 2.28", with an outer diameter of 0.687", an inner diameter of 0.535", and a total of 12 coils, expertly designed to deliver consistent compression characteristics including a rate of 19 lbs/in.
The S-59CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-59 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-59 design is manufactured with a free length of 2.28", with an outer diameter of 0.687", an inner diameter of 0.535", and a total of 12 coils, expertly designed to deliver consistent compression characteristics including a rate of 19 lbs/in.
The S-59CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-59 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
