Century Spring

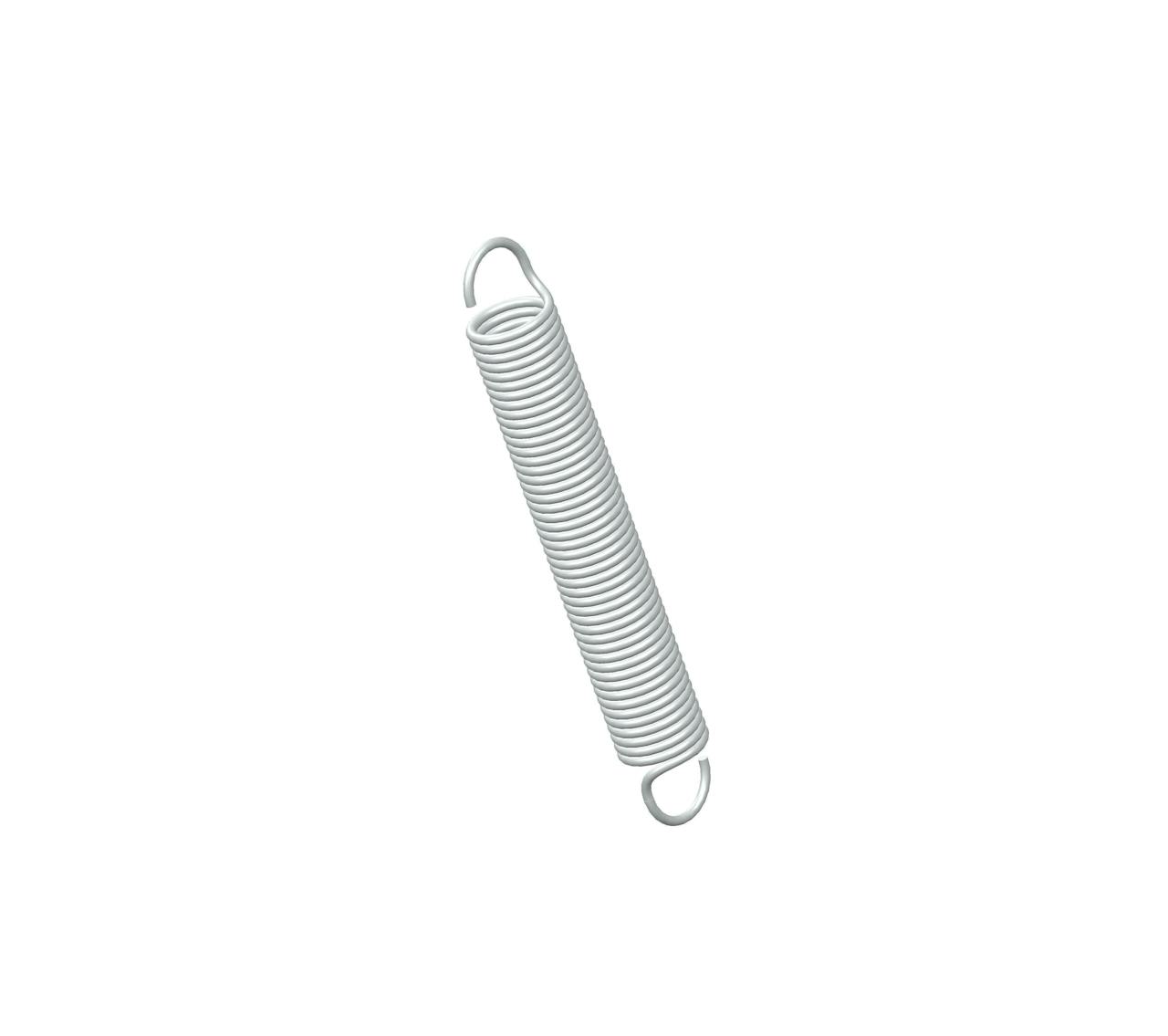

S-598CS - 4.5 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.625 Inch and an initial tension of 3.9 pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-598
Ends Machine Hook
Finish None
Initial Tension 3.9 lb
Length 4.5 in
Material 302/304 Stainless Steel
Outside Diameter 0.625 in
Part Type Standard
Rate 3.9 lbs/in
SKU S-598CS
Sugg Max Deflection 3.8 in
Sugg Max Load 18 lbf
Wind Direction Left
Wire Diameter 0.072 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-598
Ends Machine Hook
Finish None
Initial Tension 1.77 kg
Length 114.3 mm
Material 302/304 Stainless Steel
Outside Diameter 15.88 mm
Part Type Standard
Rate 0.68 N/mm
SKU S-598CS
Sugg Max Deflection 96.52 mm
Sugg Max Load 80.06 N
Wind Direction Left
Wire Diameter 1.83 mm
