Century Spring

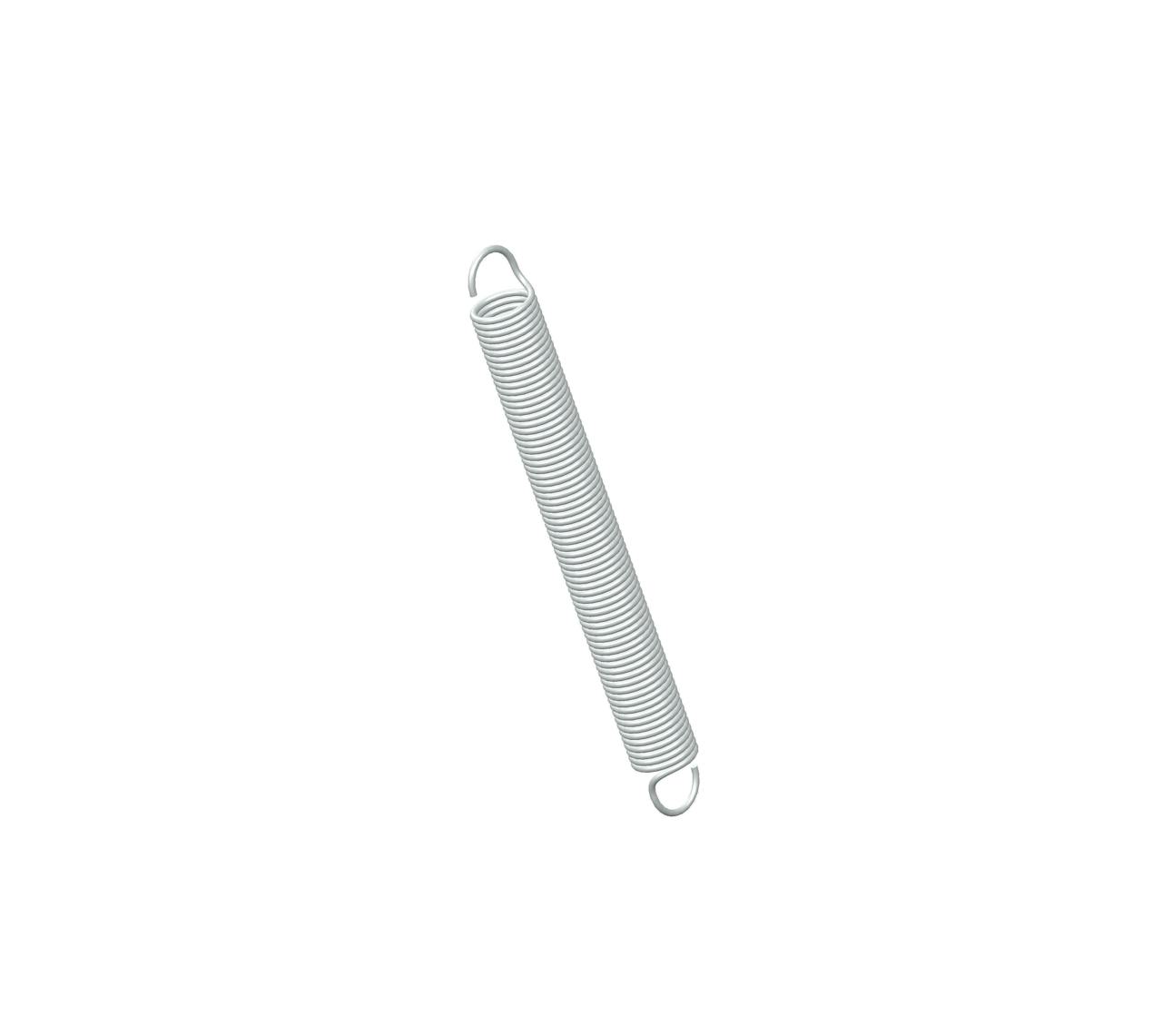

S-584CS - 4.75 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.5 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-584
Ends Machine Hook
Finish None
Initial Tension 2 lb
Length 4.75 in
Material 302/304 Stainless Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 1.6 lbs/in
SKU S-584CS
Sugg Max Deflection 5.3 in
Sugg Max Load 9.9 lbf
Wind Direction Left
Wire Diameter 0.054 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-584
Ends Machine Hook
Finish None
Initial Tension 0.91 kg
Length 120.65 mm
Material 302/304 Stainless Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 0.28 N/mm
SKU S-584CS
Sugg Max Deflection 134.62 mm
Sugg Max Load 44.04 N
Wind Direction Left
Wire Diameter 1.37 mm
