S-499CS - 1.16" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

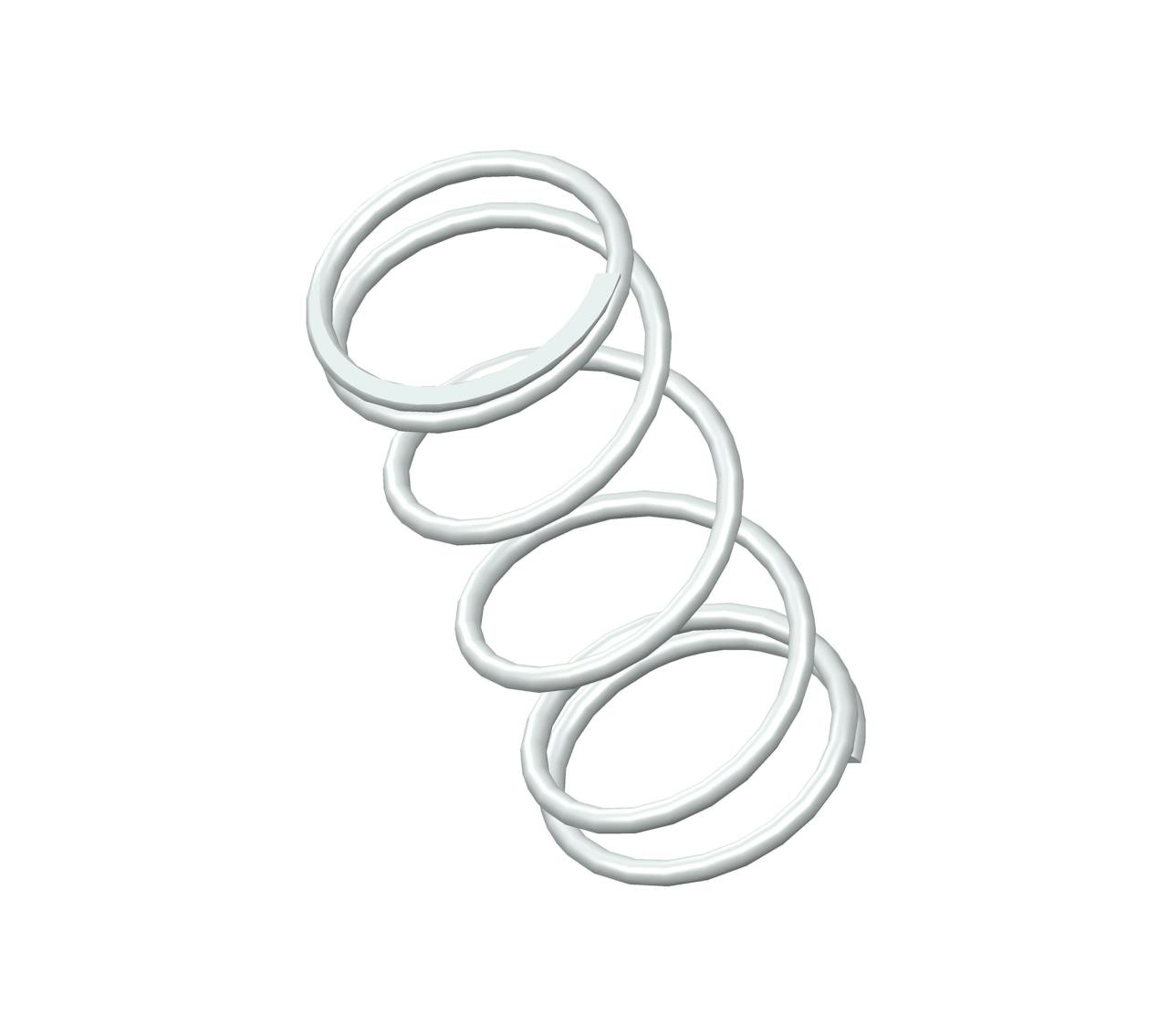

Compression spring manufactured from 302/304 stainless steel with 6 coils and closed & ground ends. This spring features an O.D. of 0.5", and an I.D. of 0.422".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-499 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.16 in |
| Inside Diameter | 0.422 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.5 in |
| Part Type | Standard |
| Rate | 7.4 lbs/in |
| SKU | S-499CS |
| Solid Length | 0.23 in |
| Suggested Max Deflection | 0.59 in |
| Suggested Max Load | 4.3 lbf |
| Total Coils | 6 |
| Wire Diameter | 0.039 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-499 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 29.46 mm |
| Inside Diameter | 10.72 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 12.7 mm |
| Part Type | Standard |
| Rate | 1.3 N/mm |
| SKU | S-499CS |
| Solid Length | 5.84 mm |
| Suggested Max Deflection | 14.99 mm |
| Suggested Max Load | 19.13 N |
| Total Coils | 6 |
| Wire Diameter | 0.99 mm |
The compression spring S-499CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-499 compression spring design exhibits exceptional tensile strength and resilience.
The S-499 design is manufactured with a free length of 1.16", with an outer diameter of 0.5", an inner diameter of 0.422", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 7.4 lbs/in.
The S-499CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-499 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
