Century Spring

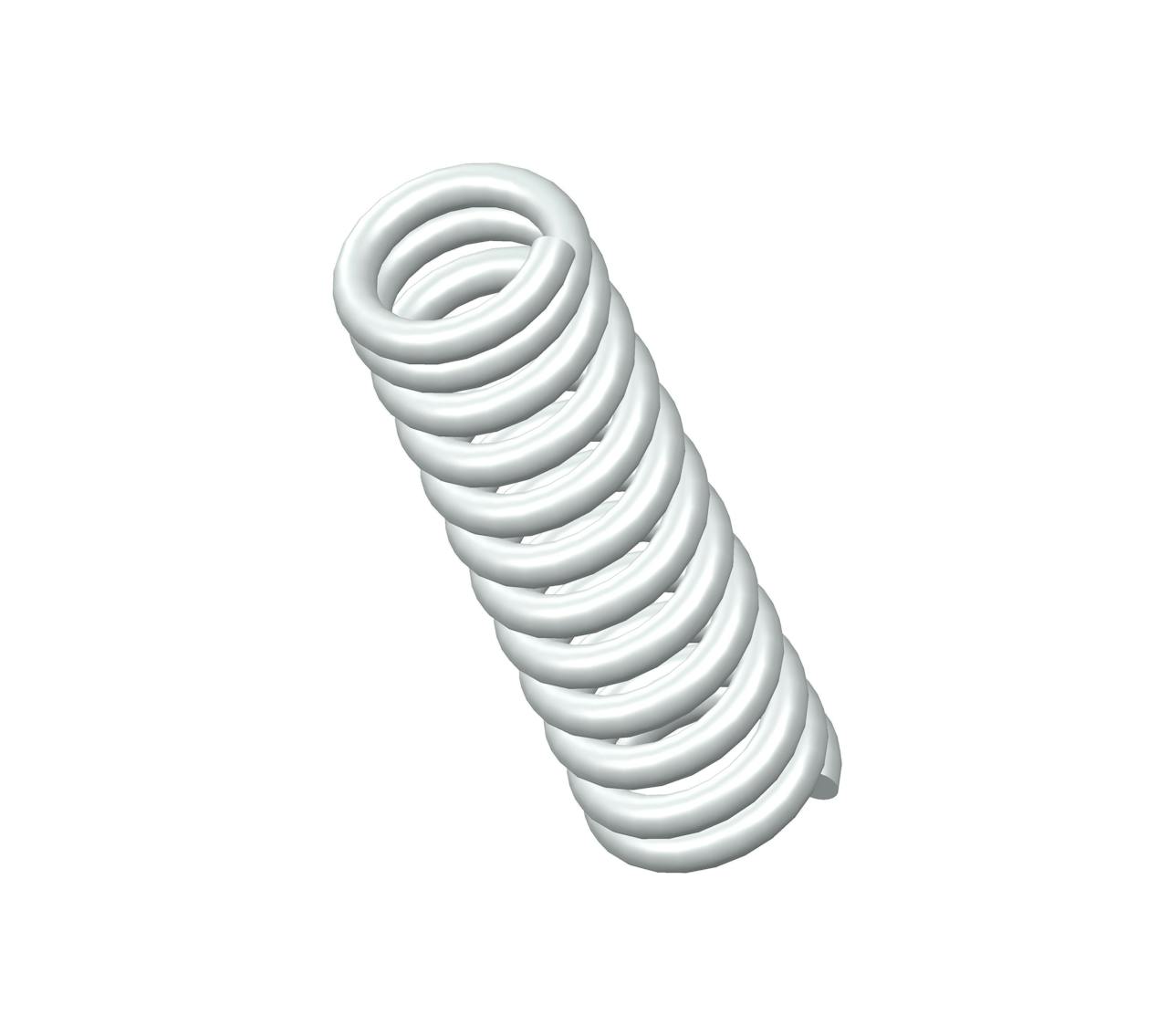

S-487CS - 0.59" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 12 coils and closed ends. This spring features an O.D. of 0.172", and an I.D. of 0.114".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-487
Ends Closed
Finish None
Free Length 0.59 in
Inside Diameter 0.114 in
Material 302/304 Stainless Steel
Outside Diameter 0.172 in
Part Type Standard
Rate 30 lbs/in
SKU S-487CS
Solid Length 0.38 in
Suggested Max Deflection 0.17 in
Suggested Max Load 5.1 lbf
Total Coils 12
Wire Diameter 0.029 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-487
Ends Closed
Finish None
Free Length 14.99 mm
Inside Diameter 2.9 mm
Material 302/304 Stainless Steel
Outside Diameter 4.37 mm
Part Type Standard
Rate 5.25 N/mm
SKU S-487CS
Solid Length 9.65 mm
Suggested Max Deflection 4.32 mm
Suggested Max Load 22.68 N
Total Coils 12
Wire Diameter 0.74 mm
The S-487CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.029" diameter 302/304 stainless steel, the S-487 spring design exhibits reliable strength across its 12 active coils, withstanding repeated compression cycles with a maximum load of 5.1 lbf without succumbing to fatigue.

We manufacture the S-487 design to provide a compression spring that is 0.59" long at rest and provides a consistent rate of 30 lbs/in along its recommended maximum of 0.17" deflection. For best results, your application should fully accommodate the inner (0.114") and outer (0.172") diameters of this spring and be designed for its closed end configuration.
