S-486CS - 0.81" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

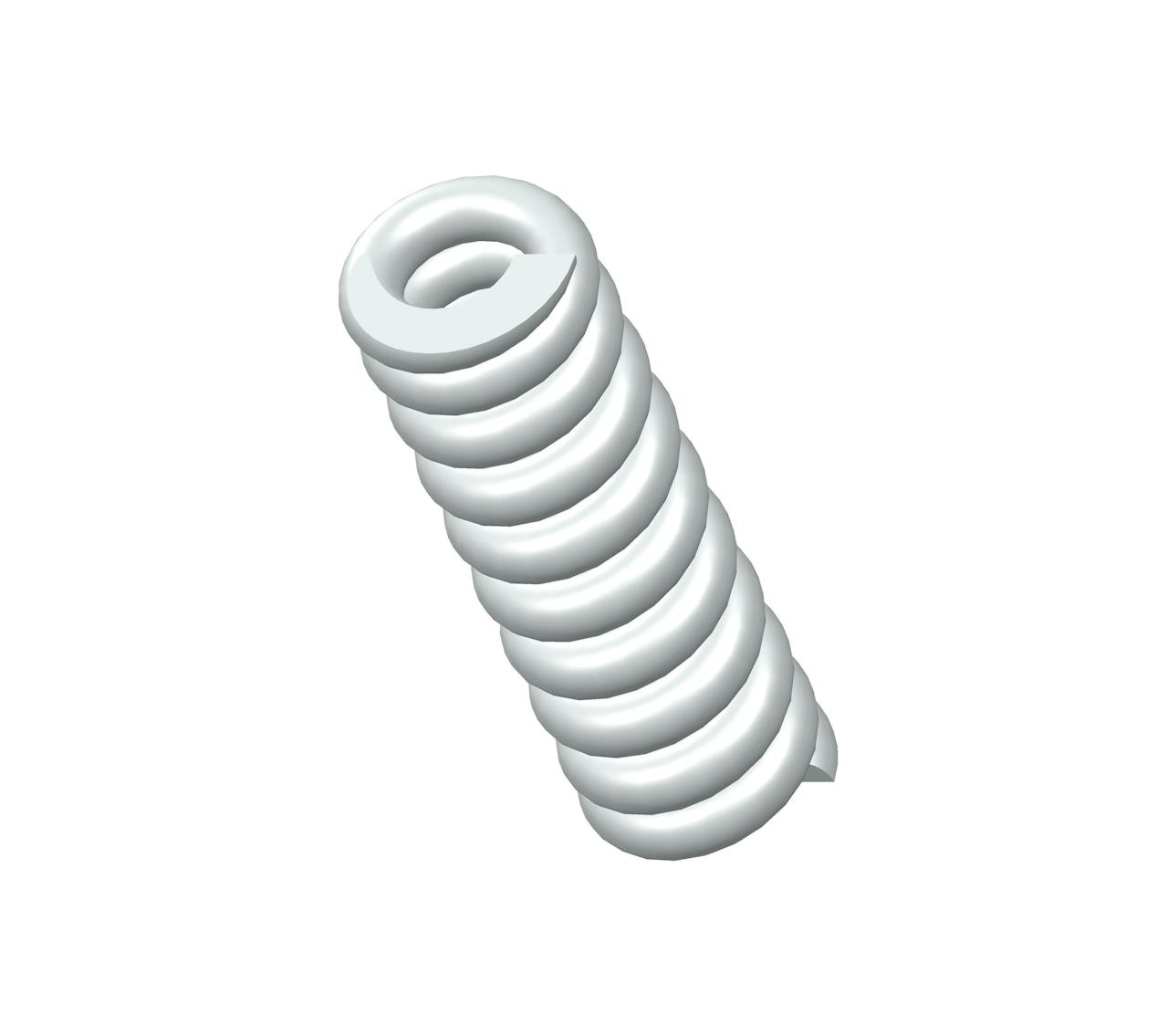

Compression spring manufactured from 302/304 stainless steel with 9.7 coils and closed & ground ends. This spring features an O.D. of 0.25", and an I.D. of 0.124".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-486 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.81 in |
| Inside Diameter | 0.124 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.25 in |
| Part Type | Standard |
| Rate | 376 lbs/in |
| SKU | S-486CS |
| Solid Length | 0.606 in |
| Suggested Max Deflection | 0.077 in |
| Suggested Max Load | 29 lbf |
| Total Coils | 9.7 |
| Wire Diameter | 0.0625 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-486 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 20.57 mm |
| Inside Diameter | 3.15 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 6.35 mm |
| Part Type | Standard |
| Rate | 65.84 N/mm |
| SKU | S-486CS |
| Solid Length | 15.39 mm |
| Suggested Max Deflection | 1.96 mm |
| Suggested Max Load | 128.99 N |
| Total Coils | 9.7 |
| Wire Diameter | 1.59 mm |
The S-486 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-486CS compression spring is designed with a free length of 1.53" total of 7.5 coils, and a rate of 5.2 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-486 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-486CS compression spring is designed with a free length of 1.53" total of 7.5 coils, and a rate of 5.2 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-486 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
