S-477CS - 1" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

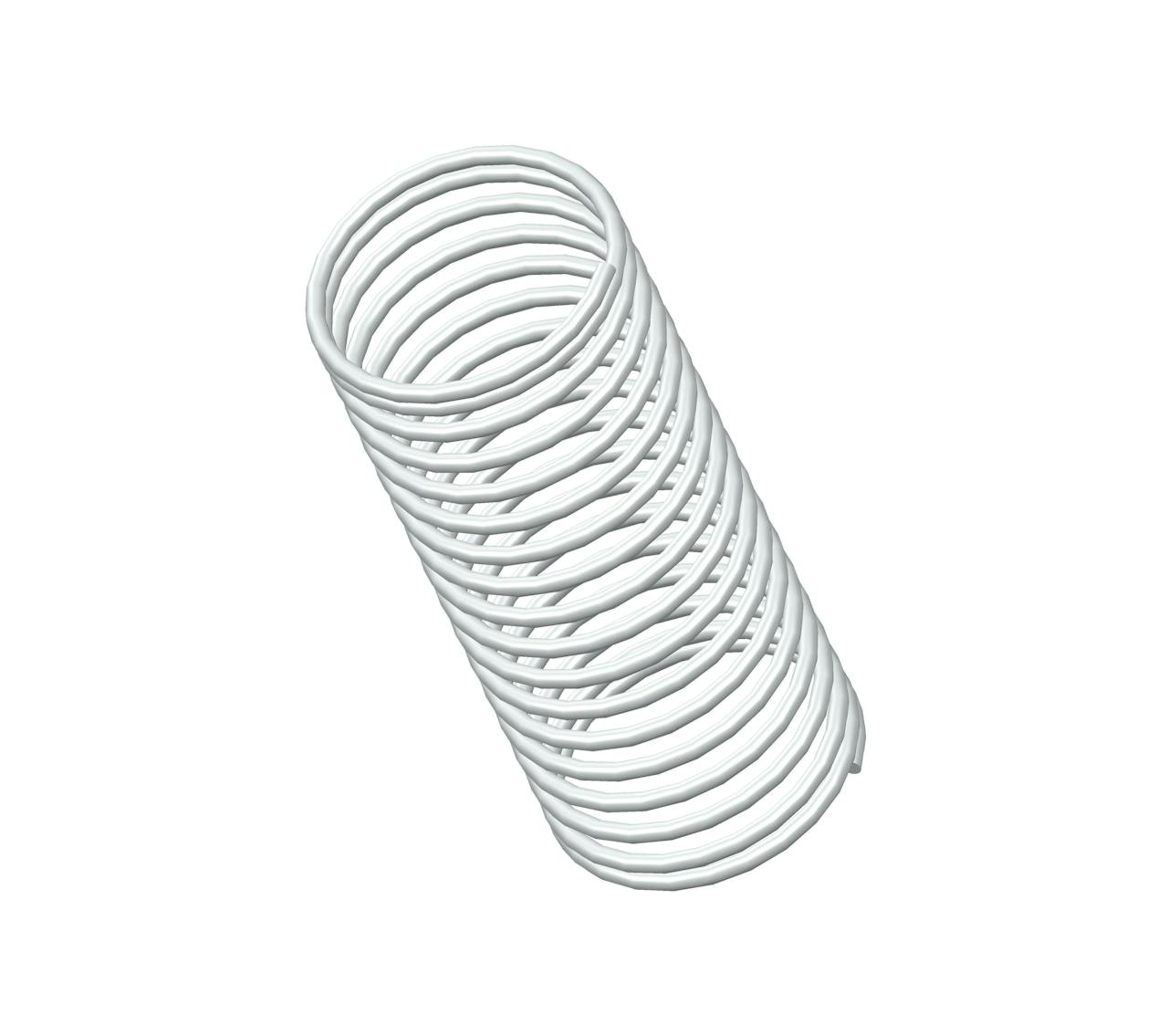

Compression spring manufactured from 302/304 stainless steel with 18 coils and closed ends. This spring features an O.D. of 0.406", and an I.D. of 0.358".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-477 |
| Ends | Closed |
| Finish | None |
| Free Length | 1 in |
| Inside Diameter | 0.358 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.406 in |
| Part Type | Standard |
| Rate | 0.46 lbs/in |
| SKU | S-477CS |
| Solid Length | 0.46 in |
| Suggested Max Deflection | 0.54 in |
| Suggested Max Load | 0.25 lbf |
| Total Coils | 18 |
| Wire Diameter | 0.024 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-477 |
| Ends | Closed |
| Finish | None |
| Free Length | 25.4 mm |
| Inside Diameter | 9.09 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 10.31 mm |
| Part Type | Standard |
| Rate | 0.08 N/mm |
| SKU | S-477CS |
| Solid Length | 11.68 mm |
| Suggested Max Deflection | 13.72 mm |
| Suggested Max Load | 1.11 N |
| Total Coils | 18 |
| Wire Diameter | 0.61 mm |
The compression spring S-477CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-477 compression spring design exhibits exceptional tensile strength and resilience.
The S-477 design is manufactured with a free length of 1", with an outer diameter of 0.406", an inner diameter of 0.358", and a total of 18 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.46 lbs/in.
The S-477CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-477 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-477 design is manufactured with a free length of 1", with an outer diameter of 0.406", an inner diameter of 0.358", and a total of 18 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.46 lbs/in.
The S-477CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-477 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
